1/2″ To 4″ Food Grade DIN Threaded Butterfly Valve With Pull Handle

The sanitary round thread butterfly valve is a valve that uses a circular butterfly plate as an opening and closing part and rotates with the valve stem to open, close and adjust the fluid passage. In the cylindrical passage of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, and the rotation angle is between 0° and 90°. When the rotation reaches 90°, the valve is fully opened.
Availability:
Quantity:
  • DEGONG-1/2″ To 4″
  • DEGONG
Product Description

1/2″ To 4″ DIN Threaded Butterfly Valve


Strictly follow the tolerance standards of 3A, Din, SMS, BS, etc.

Specification

Type

DIN Butterfly Valve

Sizes

1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 – DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

304 or 316L, 304L and 316 materials

Max. working pressure

145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″

Temperature range

14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat

End connections

threaded

Operation

4-position Pull handle as the product photo shows

Surface treatment

Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

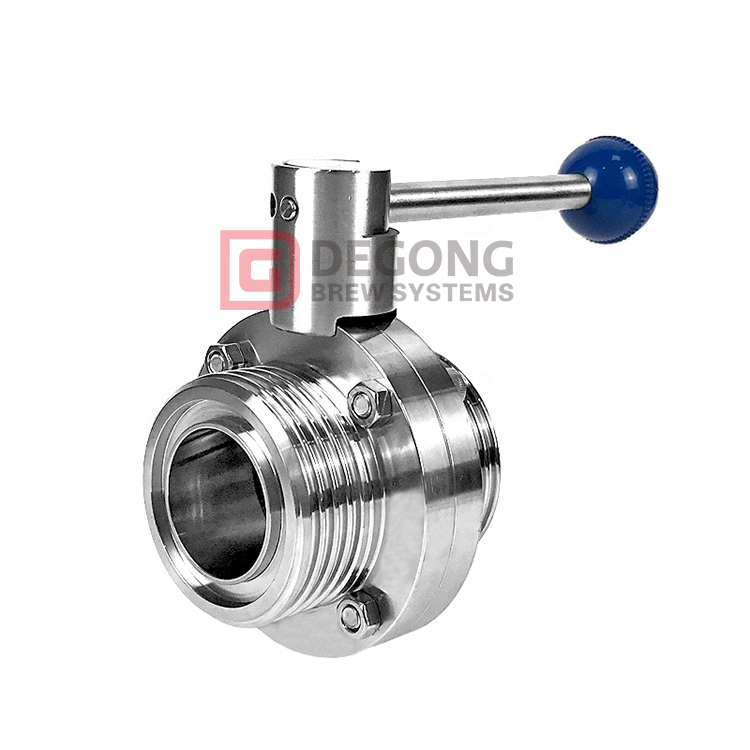

153

Sanitary threaded butterfly valve option

The material of the valve body and disc can be304 or316L, and 304L and 316 materials are available upon request.

Seat and gasket can be EPDM, VMQ (silicone) or Viton (FPM)

The end connection can be butt welding, sanitary triple clamp, thread, flange, I-type wire or other requirements.

Handle: 4-position handle; multi-position handle with plastic cover or pure stainless steel.

155

Technical parameter
Steel material Product wetted steel parts 304 or 316L


(1.4301 / 1.4404)

Provided with the material inspection report
Other steel parts 304
Seal material Standard EPDM All sealing materials comply with DIN
Options VMQ / Viton (FPM)
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature EPDM: 14 ~ 248°F (-10 ~ 120°C)


VMQ (Silicone): -58 ~ 356°F (-50 ~ +180°C)

Viton (FPM): -22 ~ 428°F (-30 ~ +220°C)

Sterilization temperature 150°C (302°F), Max. 20 min
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

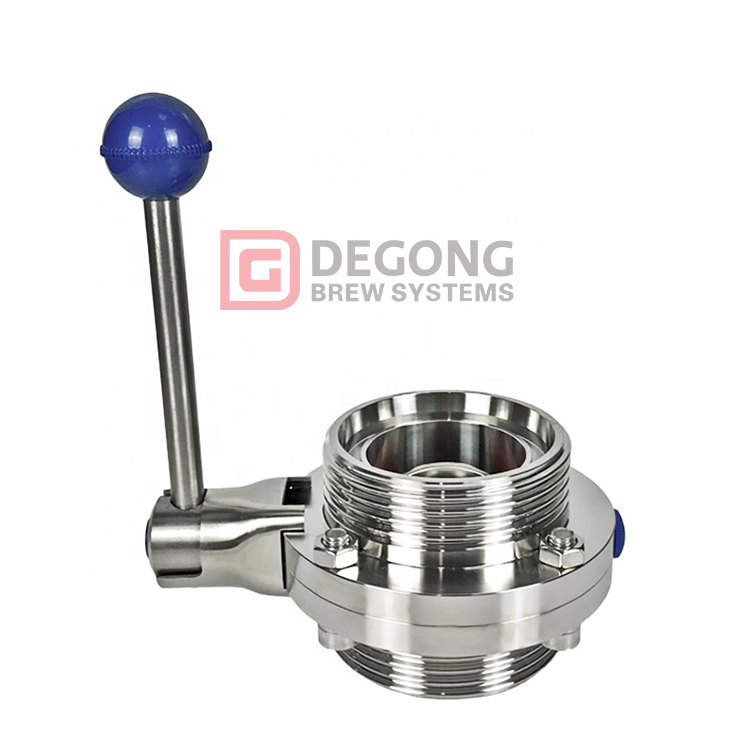

154
