A fermenter dimple jacket is a common heat exchange system used in fermenter reactors and other reactors. Its interior features a concave, "dimpled" structure, similar to a dimpled jacket, but with a different design. Dimple jackets utilize these concave surfaces to enhance fluid turbulence during heat transfer, thereby improving heat transfer efficiency and maintaining temperature uniformity within the reactor. They are often used in fermentation processes requiring precise temperature control, particularly in the food, pharmaceutical, and brewing industries.

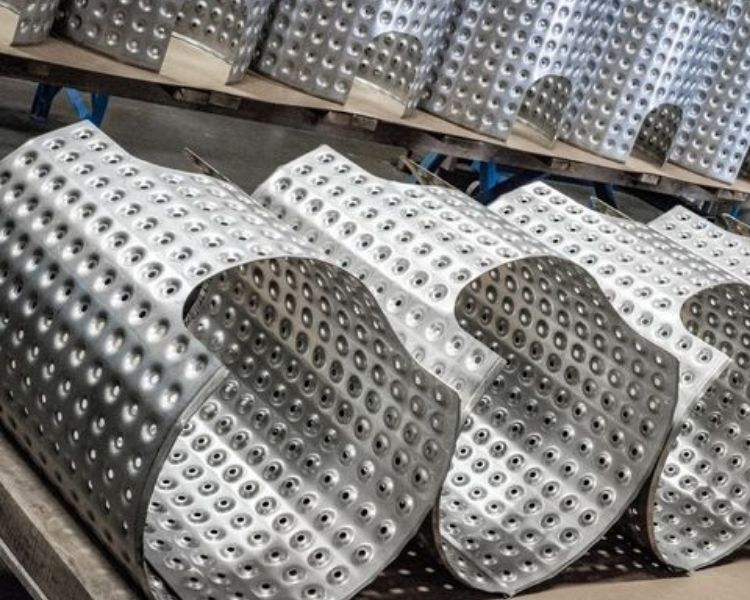

The basic structure of a dimple jacket is similar to other jacket types, typically consisting of two layers of metal plates or tubes, with the inner layer featuring a honeycomb-like surface. The inner surface of the dimple jacket is designed with multiple small honeycombs, typically circular or oval in shape. The outer layer is a metal outer wall that provides support, while the inner layer is used to inject a heat transfer medium, such as water or steam.
Compared to conventional flat jackets, the dimple jacket increases the contact area between the hot fluid and the fermentation tank wall through these dimples, promoting more efficient heat transfer. The key benefit of the dimple design is enhanced fluid turbulence, meaning that the hot fluid not only transfers heat during flow but also enhances heat exchange contact with the tank wall, improving heat transfer efficiency.
The dimple jacket operates based on the dual effects of heat convection and heat conduction. When a hot fluid (such as water or steam) passes through the jacket's dimple areas, the physical properties of the dimple surface create turbulence in these areas. This turbulence promotes heat exchange between the hot fluid and the outer wall of the fermenter, enabling faster and more uniform heat transfer from the hot fluid to the fermenter, effectively regulating the internal temperature of the fermenter.
Specifically, as the hot fluid flows within the jacket, the flow rate is affected by the dimple surface, causing it to become more erratic and turbulent. This turbulence increases the contact area between the fluid and the jacket's inner wall, enhancing heat transfer. Therefore, a dimple jacket offers higher heat transfer efficiency than traditional flat jackets or simple spiral-wound jackets.
The dimple jacket, with its unique dimple shape, increases the contact area between the hot fluid and the fermenter's exterior. The dimple design enhances fluid turbulence, thereby improving heat transfer efficiency. At the same fluid flow rate, the dimple jacket provides enhanced heat transfer.
The dimple jacket ensures uniform heat distribution, allowing the hot fluid to more evenly contact all parts of the fermenter. This uniformity helps reduce thermal gradients, resulting in a more stable temperature distribution within the fermenter and avoiding inconsistent fermentation results due to large temperature differences.
The dimple jacket is particularly effective for high-viscosity fluids because the dimple design promotes fluid turbulence, preventing poor flow caused by high viscosity and ensuring efficient and uniform heat transfer.
Dimpled jackets significantly improve heat exchange efficiency, reducing the heat input required by the fermenter, thereby lowering energy consumption and achieving energy savings.
Despite its dimple design, the dimple jacket maintains a relatively simple form. Compared to other more complex jacket types, dimple jackets are easier to clean and maintain. Furthermore, the dimple design provides a relatively simple fluid path, making it less prone to deposits and clogging, contributing to long-term operational reliability.
A coil jacket is a common heat exchange device, typically made of metal tubing bent into a spiral or ring shape, used as a conduit for fluid flow. Coil jackets are widely used as heat transfer equipment in temperature control systems such as fermenters and reactors. While their operating principle and structure are relatively simple, they still provide efficient heat exchange.
The main structure of a coil jacket consists of a metal tube (usually stainless steel) bent into a series of spiral or annular flow channels. Fluid flows through these channels for heat exchange. The advantages of coil jackets are their relatively simple design and ease of manufacture, while providing excellent heat exchange performance.
Coil jackets are generally available in single-layer and multi-layer configurations. Single-layer coil jackets are suitable for applications with lower heat transfer requirements, while multi-layer configurations increase heat transfer area and improve efficiency. Coil jackets can be adjusted by adjusting the tube diameter, number of layers, and flow rate to control the flow pattern, thereby affecting the heat transfer effect.
The working principle of a coil jacket is primarily based on the heat exchange process. Specifically, a hot fluid flows through the tubes within the coil jacket. Heat is transferred through the tube walls to the outer wall of the fermenter, and then through the outer wall to the material or liquid inside. This heat transfer process is based on the principles of heat conduction and convection.
Heat conduction: The hot fluid conducts heat through the metal tubes, and the temperature of the tube walls is transferred to the outer wall of the fermenter.
Heat convection: Heat is transferred through the outer wall of the fermenter to the liquid or material inside the tank. Convection within the liquid then transfers the heat outward, thereby regulating the temperature inside the fermenter.
The coil jacket's spiral design increases the contact area between the hot fluid and the fermenter's exterior, improving heat exchange efficiency. The increased flow velocity and temperature differential during the flow of the hot fluid facilitate rapid heat transfer, maintaining a stable temperature within the fermenter.
The coil jacket has a relatively simple structure, typically consisting of a length of metal tubing. This makes it easy to manufacture and install, lacking complex mechanical structures. This makes it more durable, has a low failure rate, and is suitable for long-term operation.
The coil jacket can be customized to suit various fermenter sizes and shapes. Whether it's a small laboratory fermenter or a large industrial fermenter, the coil jacket provides stable temperature control.
Due to their simple piping structure, coil jackets are easier to clean than more complex heat exchange systems. In the food and pharmaceutical industries, where equipment hygiene is paramount, coil jackets are widely used due to their ease of cleaning.
Through efficient heat exchange, coil jackets maintain desired temperatures with low energy consumption, reducing heat waste and achieving significant energy savings.
Coil jackets are suitable for high-flow heat fluids and can effectively handle large-scale heat exchange needs. For example, in industrial fermentation processes, coil jackets can handle large heat loads, ensuring that fermentation tanks maintain stable temperatures under high loads.
