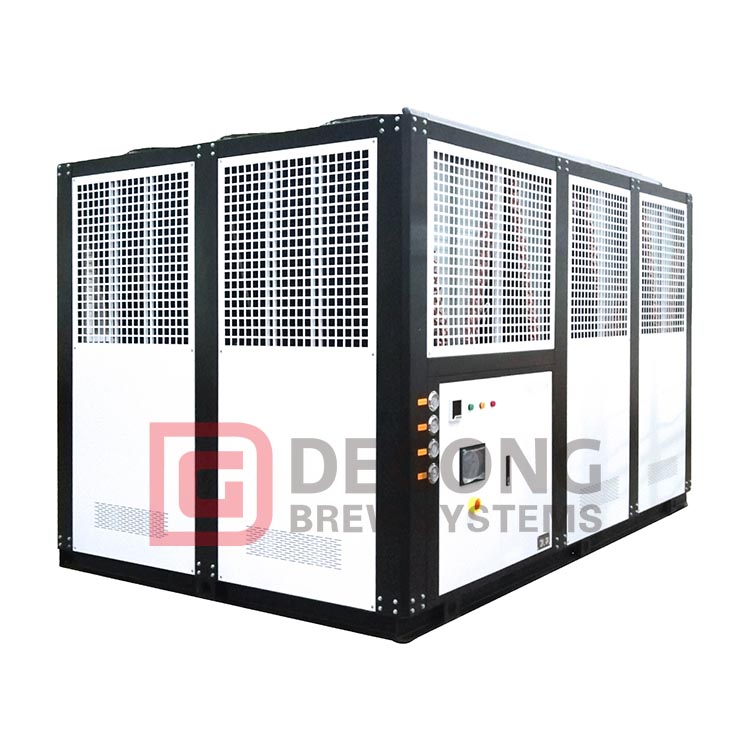

Excellent Energy-saving Air-cooled Chiller, Silent And Low Power Consumption Screw Air-cooled Chiller

The air-cooled screw chiller adopts brand-name screw compressors, copper tube condensers, evaporators and control elements. It has the advantages of small size, low noise, high power, long service life, and convenient operation.
Availability:
Quantity:
  • Energy-saving Air-cooled Screw Chillers
  • DEGONG
Product Description

Energy-saving Air-cooled Screw Chillers


Product specifications

Cooling capacity
kcal/h
271989.9
kw
315.9
Total input power
kw
87.2
Max running current
A
149.2
Power supply
3Ph 380V 50HZ(200V/220V/415V 460V 50HZ/60HZ)
Refrigerant
Type
R22(R407C)
Charge volume
kg
70
Control method
Outside balance thermal expansion valve

Compressor
Type

Semi-hermetic screw
Power
kw
80.2
Start-up mode
Y-△
Running current
A
134.7
Capacity control
%
0-25%-50%-75%-100%
Evaporator
Type

Shell and tube type with internal thread
Chilled water flow rate
m3/h
50
Heat exchange
kw
315.9
Condenser
Type
High Efficiency Copper Aluminum Fins
Fan type
High-power axial fan
Fan motor power
kw
7
Fan current
A
14.5
Heat exchange
kw
379
Fan diameter and quantity
mm*pcs
600*10
Cooling air flow rate
m3/h
118000
Inlet/Outlet pipe diameter
mm
125

Security devices
Compressor overheating protection, overload protection, high and low pressure protection device, antifreeze protection, power
supply reverse phase/ phase protection, water flow switch.

High cooling efficiency and energy saving

With advanced technology, upgrading, high efficiency and high quality, it is well received by domestic and foreign markets.

High quality

Each unit is tested before leaving the factory, so we are confident to provide you with high-level products.

High-efficiency screw compressor

It adopts Hanbell screw compressor with high efficiency and low noise. With superb craftsman and professional design, we create more and more perfect products.

101613121115

Our service

Pre-sale service

Tell customers how to use our products and precautions.

Guide customers to choose the best and economical products and recover their investment in a short time. .

If necessary, check on site.

After-sales service

If the project needs our installation instructions, we can send our engineers and translators. We can also send installation videos to customers to teach them how to repair and operate our products.

Generally, the warranty period of our products is 18 months after leaving the factory or 12 months after installation. During these months, all damaged parts will be taken care of by our factory.


Packing details

Packed in carton, then packed in wooden box, or as required.


The best quality and ex-factory price Our company has always insisted: integrity management, quality first, reasonable price, and service first are the cornerstones.

You are welcome to send us inquiries and orders.
