1HP Electric IBC Tote Mixer
DEGONG
Feature
This fully enclosed fan cooling motor requires a single-phase 115/230 voltage.
The 32" long mixing shaft is connected to the coupler and two 5" impellers by fixing screws.
This rack-mounted blender fits in tote bags from 34" to 48" wide.
All wetted parts are made of stainless steel, which is chemically resistant.
| Horsepower | 1 |
| Impeller Attachment | Set Screw |
| Impeller Diameter | 5.5 in. |
| Impeller Material | 316SS |
| Impeller Type | High Efficiency Impeller |
| Max Current | 12.8 A |
| Mount | Tote Bracket |
| Mount Dimension | 36-48 x 10 |
| Number of Impellers | 1 |
| Phase | 1 |
| RPM | 1,750 |
| Shaft Attachment | Coupler |
| Shaft Diameter | 625 in |
| Shaft Length | 32 in |
| Shaft Material | 316SS |
| Voltage | 115 V |
Products Show
Application
Widely used in petroleum, environmental protection, chemicals, cement, transportation, textiles, pharmaceuticals, food, printing coatings, lifting, mining, metallurgy, construction, papermaking, power generation, pesticides, environmental protection, coatings, transportation, domestic new logistics equipment and other industries .

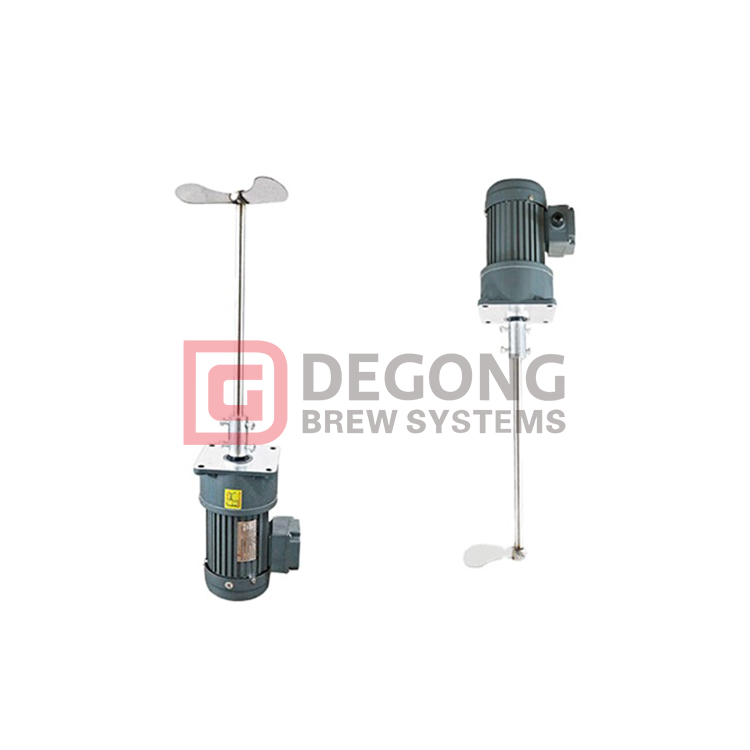

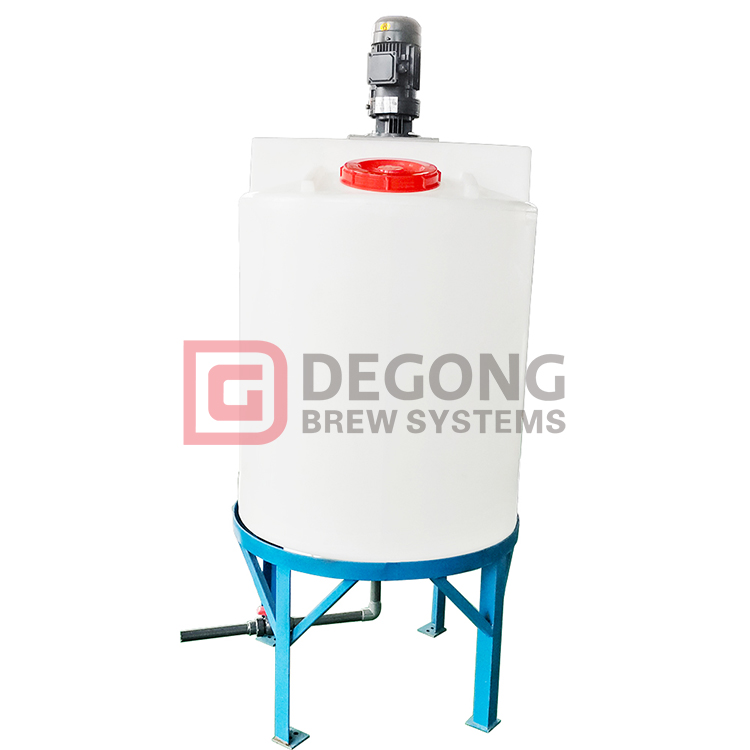

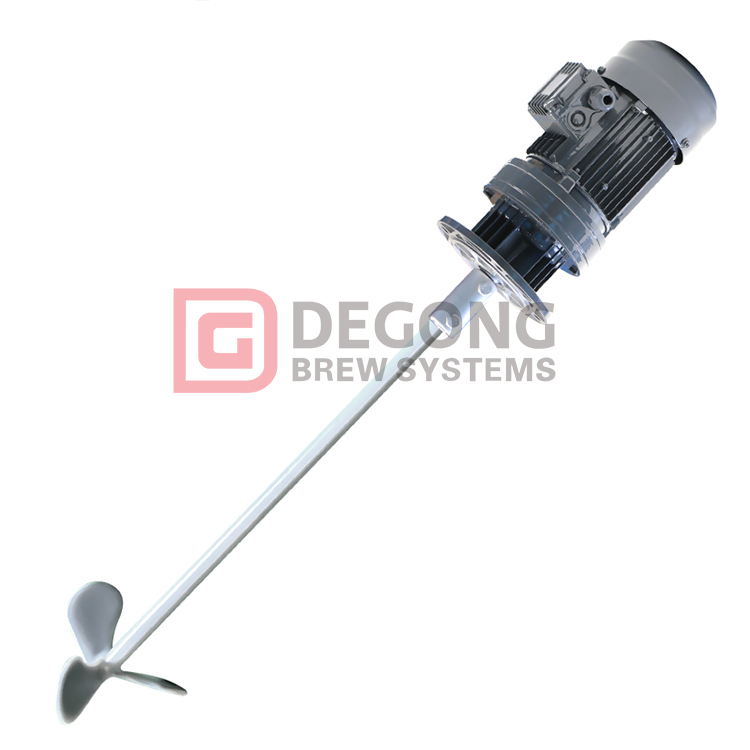

Other products
| Type | Power | Tank Volume | Rotate Speed (rpm) | Shaft Dia（cm） |
| 1 | 0.55KW | 80-200L | 36-130rpm | 16 |
| 2 | 0.75KW | 200-500L | 36-130rpm | 25 |
| 3 | 1.1KW | 500-1000L | 36-130rpm | 25/32 |
| 4 | 1.5KW | 1000-2000L | 36-130rpm | 38 |
| We have a variety of liquid mixers, and some parameters can be customized. If you need to select or are interested in this product, please leave us a message, and there will be professional technicians to provide you with services. |
