DEGONG Newest 2000L Copper Distillation Equipment Refining Pure Manual Distillery

Refining Pure Manual Distillery

Quantity 1 X 2000L standard POT STILL base system

• Distiller model: DG-2000L

• Diameter: 1800mm

• Material: high-quality copper, highly polished and smooth (quality is based on hammering quality), 4mm firm

• Filling capacity: 2000 liters (approximately 530 US gallons)

• Filling port: diameter 400mm

• Discharge: 200mm diameter and 4" ball valve

• Indirect heating: stainless steel heat preservation steam bath or stainless steel heat preservation water bath

• Stainless steel condenser: diameter 220mm, height 1500mm, with thermostatic regulating valve automatic cooling safety function: overflow, vacuum breaker, pressure gauge, automatic exhaust, steam trap and dust filter. Outflow device of alcohol pipe, distilled water and water device: completely made of stainless steel

DEGONG 2000L distillery equipment

Quantity 1 X Vodka line set

• Whiskey-shaped helmet: use stainless steel flange connection, no visible screws or washers inside and outside. 800mm in diameter, about 800mm in height, with observation glasses and thermometer

• Internal mental channel

• Cooling water collection tank as the foundation of the column

• Side mounted distillation tower

• Double fractionation system

Quantity 18 X Bubble Hat

• special distillation tower diameter 400-500mm

• The liquid level on the distillation tray can be adjusted freely-the alcohol content and aroma of the distilled mash can be flexibly adjusted. Include a pre-condenser in the column head (fractionator)

• Inspection mirror: 4 observation windows with a diameter of 125 mm for each blister and saccharification reflux

Quantity 1 X stirrer> 600L still

• Stirrer 1,5KW, 150 rpm-all stainless steel construction

Quantity 1 X CIP system

• Stainless steel cleaning of caps, pots and special distillation towers (one for each bubble); spray balls in caps and columns, and spin nozzles in pots

• Maximum 16bar/8m3 per hour

Quantity 1 X top filling opening (additional)

Quantity 1 X inspection glasses

Quantity 1 X power supply

• Power supply: 208V three-phase

Quantity 1 X Steam Setting: Floating Trap

• The float trap is included in the pot used to set the steam

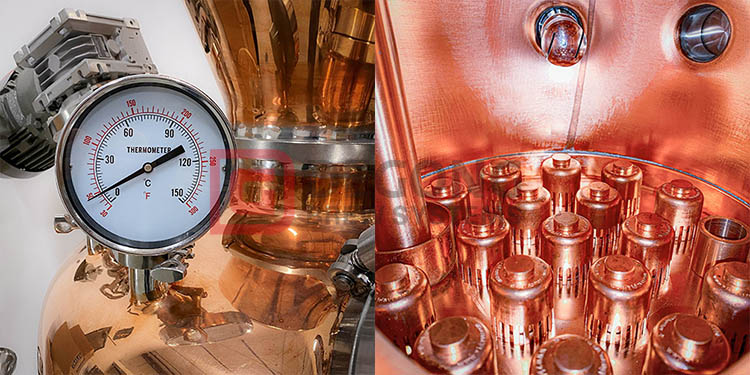

Quantity 1 X Thermometer

• Analog thermometer standard, digital available

• One for each hat, plate and string arm

Quantity 1 X lighting

• Lighting of pots and pillars

• Additional viewing window at the back for lighting

• Provide lights and install

Quantity 1 X Gin Basket

Quantity 1 X MASHTANK 2000L

• Steam heated and jacketed to cool with water or glycol

Quantity 1 X Pendulum Mill – 12KW

• 12kw motor

• Includes fan blower-3 inch connection

Quantity 5 X 2450L stainless steel fermentation tank

• set

• Top opening

• Analog thermometer

• Mounting bracket for pedals

• Four feet

• Diameter: 1430mm; Height: 2010mm; Weight: 165 kg

DEGONG 2000L fermentation tanks

Quantity 1 X accessories

• 1 eccentric screw pump – SP6

• Capacity: 7000/12000l water/h

• 700/1400 revolutions, 3KW

Quantity 30 X hose-mashed hose (screw) eccentric screw pump

• For cold mash

• Up to 28% alcohol

• Stable red spiral

• Maximum pressure of 8 bar per meter

Quantity 1 X filter – 20 X 20 stainless steel

• 9 board standard

• Including extension rods for smaller plates

• pressure gauge

• Excluding filter pump/recommended explosion-proof alcohol pump

Quantity 200 X filter plate – A20

• Fine filtering

Quantity 200 X filter plate – A80

• Coarse filtration

Quantity 1 X Vacuum Bottle Filling Machine 4 Nozzles

• 120V bottle filter

• No distilled water pump contract

Quantity 1 X Explosion-proof alcohol pump

• 1 1-4 inches

• 2000 liters/hour

• 1.5 KW (connected to available power source)

Quantity 1 X 1100L stainless steel water tank (finished product)

• 1100 litre jar jacket for heating the product before bottling

• set

• Closed top

• Digital temperature probe, liquid level indicator

• Diameter: 953mm

• Height: 1970mm

• 3 feet

Quantity 1 X 1100L stainless steel tank (mixing tank)

• 1100 liter mixing tank-open top

• Digital temperature probe

• Diameter: 953mm

• Height: 1820mm

• 3 feet

• Weight: 120kg

Quantity 6 X 300L water storage tank

Quantity 1 X Vacuum Bottle Filling Machine 4 Nozzles

• 120V bottle filter

• No contact between distillate and pump

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
