DG-3000L
DEGONG
| Features |
Reduce cleaning costs and time while maintaining high standards of hygiene;
They guarantee virtually zero product loss (less than 1 cup per tank);
It is specially designed for beer brewing that does not use CO2 and only injects air from the outside of the inner tank, so as to avoid beer saturation and reduce brewing costs;
Great for saving time, storage space and physical effort in handling and using kegs;
Maintain maximum efficiency of the cold chain to guarantee excellent product quality from production to customer glass.

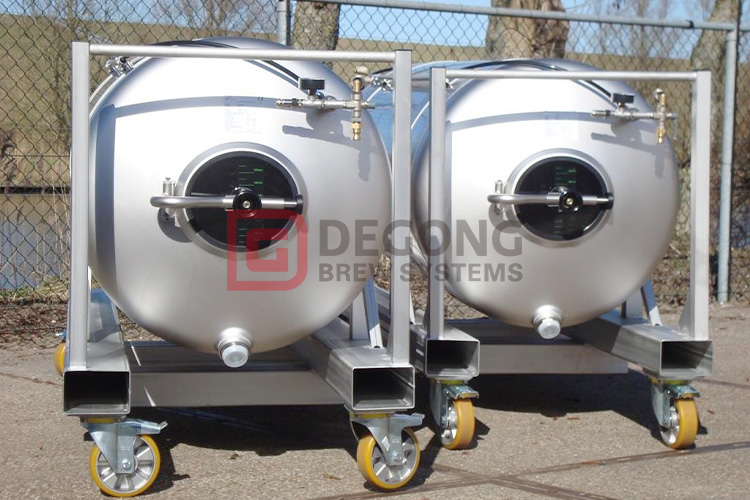

| Bright Beer tank/Serving tank/Maturation tank/Lagering tanks | ||
| Useful capacity/volume | 500L~10000L | Forhomebrew,pub/restaurant brewery, micro breweyr plant |

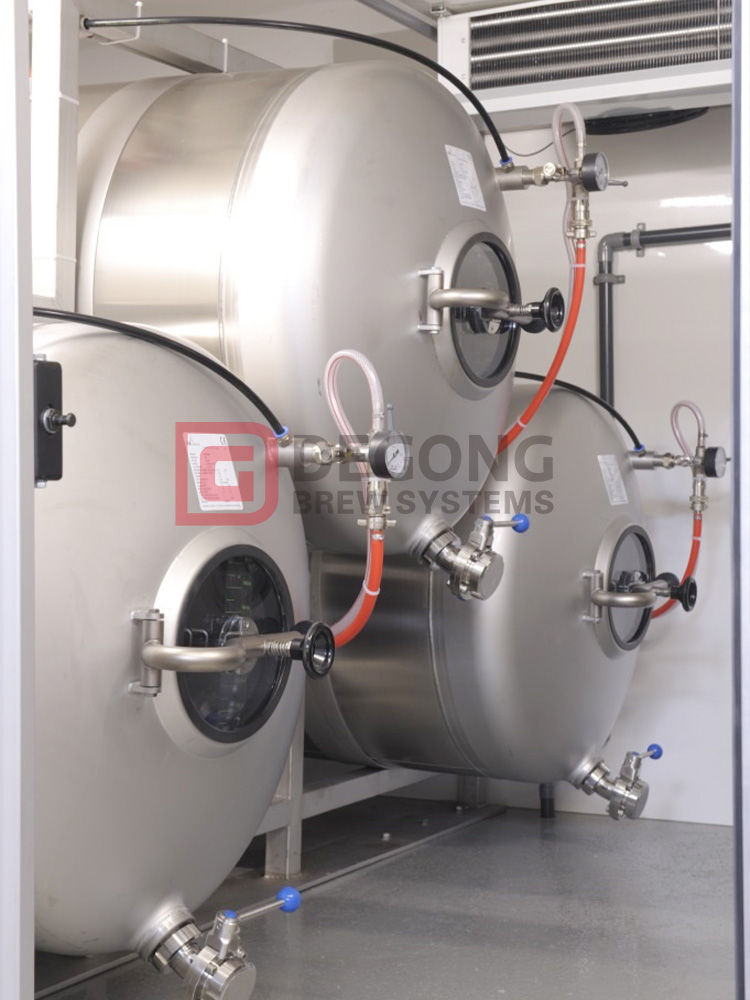

| Type | Vertical/horizontal | Frame-system for positioning of horizontal tanks at several levels above each other |
| Interior&Exterior material | Stainless steel304/316 | Food and sanitary material, easy to clean and maintain |
| Insulation | Polyurethane | Thickness corresponding to the size of the tank and the environment |
| Cooling method | Liquid/Air cooled | Double walled tank with glycol Un-insulated tank used in a temperature controlled room |
| Cooling jacket | Dimple/cooling coil | Stainless steel cooling jacket |
| CIP | Spray ball &CIP arm | Clamp connection, 360° thorough cleaning |
| Temperature control | PT100/Bimetallic thermometer | Insulated with PT100, display & control through digital control cabinet Un-insulated with Bimetallic thermometer |
| Pressure relief valve | Stainless steel 304 | Prevent the tank from over-pressuring, allow a vacuum relief |
| Manway | Stainless steel 304 | Top manway/ side manway/ Clamp manway/Flange manway |
| Sampling valve | Stainless steel 304 | Sampling &testing |
| Pressure gauge | Display pressure level | |
| Safety valve | Optional | On top of the tanks, normally for tank above 2000L |
| Carbonization | Optional | Special jet for carbonation of beverages from CO2 bottle |
| Level indicator | Optional | Cleanable and sanitizable glass/hose level indicator |
| Ladder | Optional | Stainless steel ladder for large capacity tanks |
| Packaging and Shipping |
LCL or FCL shipping
Plastic film or bubble wrap
The large tank is fixed with an iron frame and placed flat in the container
Small-capacity fumigation-free wooden box LCL
Compliant with export standards, manufactured to ensure everything is safe
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
