DG-500L
DEGONG
500L vodka distillation equipment
| Parameter |
| Working capacity: | 50L-5000L |
| Total Volume: | working capacity*130%-150% |
| Voltage: | 200V-240V/380-440V/600V |
| Weight: | 50kg-3000kg |
| Material: | SUS3048/SUS316L/COPPER |
| Motor: | 3-phase power |
| Welding Technolog： | High purity argon arc welding |
| Heating Method: | Steam/Water bath/Oil/Electric/Firewood/Gas |
| Heating form: | Direct or indirect heating |
| Distillation method: | Liquid distillation by default, custom solid distillation can be customized |
| Running time: | 2-8h,Customizable continuous distillation |
| Shape: | Upper and lower heads/Customizable |
| Distilled products: | Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon |
| Optional module: | 1.Cooling water recycling system 2.Light system 3.Alcohol storage tank system(Head/Heart/Tail) |

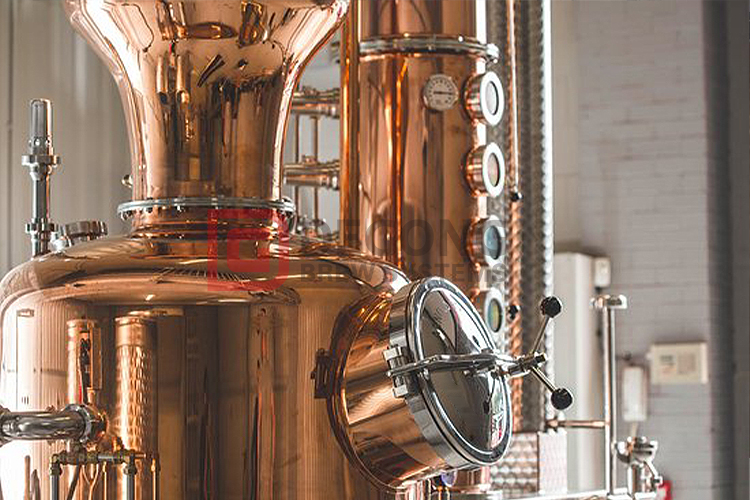

DEGONG 500L vodka column still
| Details |
Distillation pot
Inner shell is made of copper,outer shell is SUS304 stainless steel, pot is assembled with liquid thermometer, pressure gauge,thermometer probe, safty releasing valve, CIP cleaning ball, drainvalves etc
All view Mirror pressure hole
Made of SUS 304 Stainless Steel and borosilicate glass , it have good sealingand , and can be observed at any time in the tank ,It is safe and reliable
Onion Head
It is made of copper , the designed enlarged the contacted area of the wine with the copper, It can remove highly volatile sulfurcompounds , and it can react with acid and fat in wine during use to improve the taste.
Distillation column
With blisters device and glass sight glass, it can improve thedegree and quality of the wine . For whisky and gin it is have 4 plates column (5sight glass) At the top of the column is dephlegmator , that improve the quality of the wine.
Condenser
It is made of copper pipe inside and SUS304 stainless steel column .The vapor passing through the cooling tubes gets in touch with the cold water and exchange heat with each other. Then the vapor is condensed to wine that we want. It has inlet and oulet of cooling water.
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
