DEGONG 2.5" Tri-Clamp Butterfly Valve | Fractional Valve

The structure length and overall height of the butterfly valve are small, the opening and closing speed is fast, and it has good fluid control characteristics. The structure principle of butterfly valve is most suitable for making large-diameter valves. When a butterfly valve is required to control flow, the most important thing is to correctly select the specification and type of the butterfly valve so that it can work properly and effectively.
Availability:
Quantity:
  • DEGONG-2.5"
  • DEGONG
Product Description

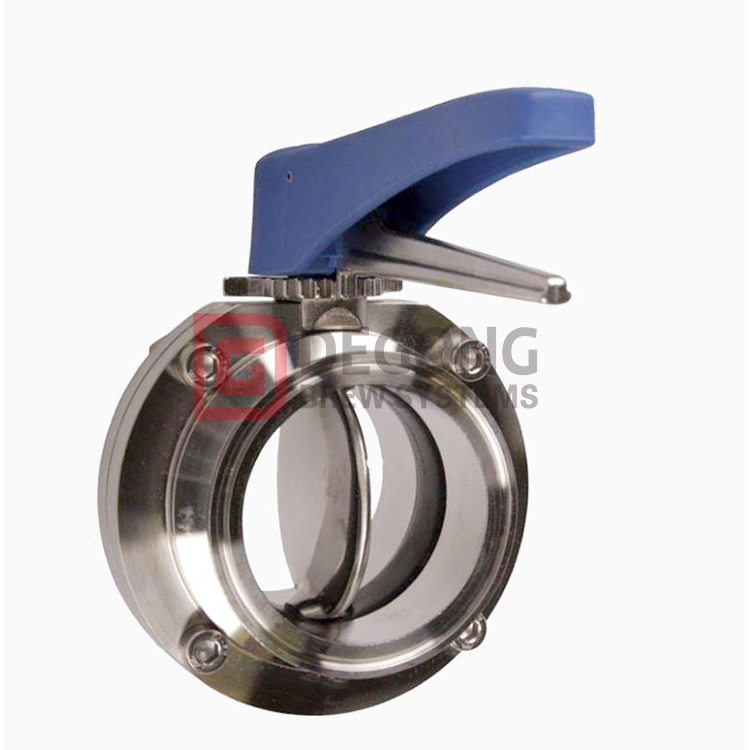

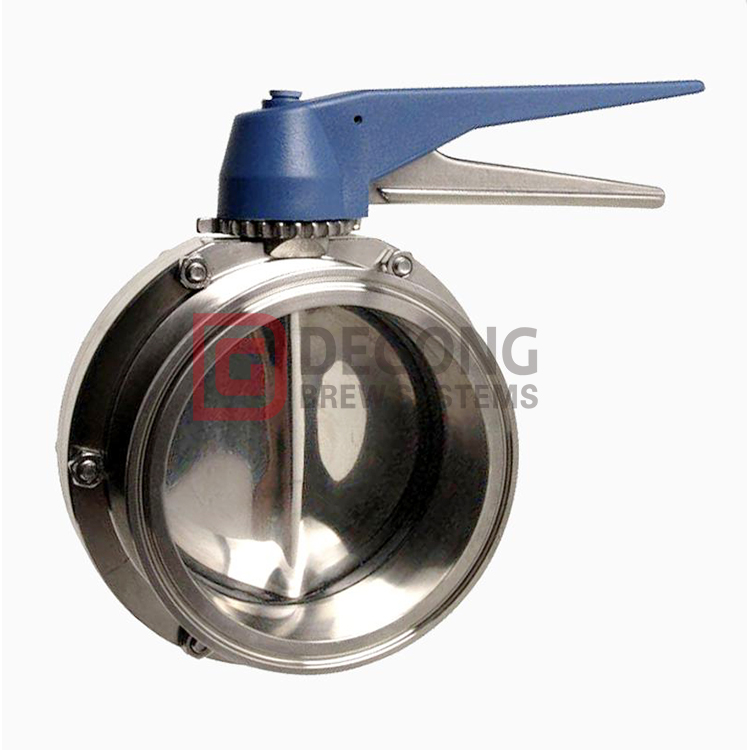

2.5" Tri-Clamp Butterfly Valve


The Tri-Clamp butterfly valve is an elegant and reliable solution, suitable for closing service or as a flow control valve to reduce volume. Our fractional butterfly valve is specially designed for Tri Clamp fittings. It is made of stainless steel SS304 and has a glass fiber handle with 12 locking positions, which can achieve the usual required particle flow control.

The valve is rebuildable and can be easily disassembled and reassembled for cleaning and disinfection.

135

DETAILS

1.5" VALVE 2.0" VALVE 2.5" VALVE 3.0" VALVE
CONNECTION TYPE:
Tri Clamp Tri Clamp Tri Clamp Tri Clamp
CONNECTION SIZE:
1.5 in 2.0 in 2.5 in 3.0 in
DIMENSIONS
Length:
Width:
Height:
3.00 in (76.20 mm)
5.00 in (127.00 mm)
7.00 in (177.80 mm)
3.00 in (76.20 mm)
5.75 in (146.059 mm)
8.00 in (203.20 mm)
3.00 in (76.20 mm)
5.75 in (146.059 mm)
8.00 in (203.20 mm)
3.25 in (82.55 mm)
7.00 in (177.80 mm)
9.00 in (228.60 mm)

136

Advantage
  • It is convenient and quick to open and close, labor-saving, low fluid resistance, and can be operated frequently.

  • Simple structure, small size, short structure length, small size, light weight, suitable for large-caliber valves.

  • Mud can be transported, and the accumulation of liquid at the pipe mouth is the least.

  • Under low pressure, good sealing can be achieved.

  • Good adjustment performance.

  • When the valve seat channel is fully open, the effective flow area is larger and the fluid resistance is smaller.

  • The opening and closing moment is small. Since the discs on both sides of the rotating shaft are basically the same under the action of the medium, the direction of the torque generated is opposite, so the opening and closing is more labor-saving.

  • The sealing surface material is generally rubber or plastic, so the low-pressure sealing performance is good.

  • Easy to install.

  • The operation is flexible and labor-saving, and manual, electric, pneumatic, and hydraulic modes can be selected.

137
