DEGONG 16HL High Quality Cylindrical Cone Fermentation Tank – CCT

The special tank bottom design helps to collect the residue of hop yeast and separate it from the beer. The cooling jacket is used to control the temperature of beer fermentation and keep it at the level required by the brewer.
Availability:
Quantity:
  • DEGONG-16HL

  • DEGONG

Product Description

16HL Conical Fermentation Tanks


Feature

Our commercial/industrial stainless steel conical fermentation tanks are designed to promote optimal fermentation of beer.

  • Made of stainless food steel

  • Standardized size and equipment, or according to individual customer's requirements

  • Classic design, double stainless steel jacket, water (or glycol) cooling copier

  • Accurate temperature control and reliable CIP are the requirements to ensure the quality of finished products

  • The fermenter provides a side-rotating frame arm or riser design and a hop port.

  • If necessary, additional three-clamp accessories can be added to the carbide.

  • The cone angle can be changed to meet customer requirements.

  • Adjustable pressure valve for controlled fermentation-overpressure setting mechanism with glycerin pressure gauge

  • Guaranteed inner surface roughness: Ra <0.8 μm or less (ground surface)/Ra <0.5 μm or less (polished surface), according to customer requirements

  • Top cone or cylinder part access door (manhole), according to customer requirements

  • Pure beverage output armature with butterfly valve for pure beverage (beer, wine, cider) output

  • Sampling valve-cleanable and sterilizable sampling cock for collecting product samples

  • Safety valve-double-acting overpressure vacuum protection safety valve

  • Exhaust valve – A dedicated exhaust valve is used to safely discharge the water tank and use a pressure gauge to accurately measure the current pressure in the water tank (when the shower ball shower is blocked by foam, it ensures that the pressure gauge works properly)

  • Thermometer socket-solder socket for plugging in temperature sensor or thermometer

  • Pressure gauge-it is included in the adjustable pressure valve block. It is made of stainless steel and contains glycerin.

  • Filling level indicator-sterilizable glass or plastic tube used to visualize the height of the beverage product in the can

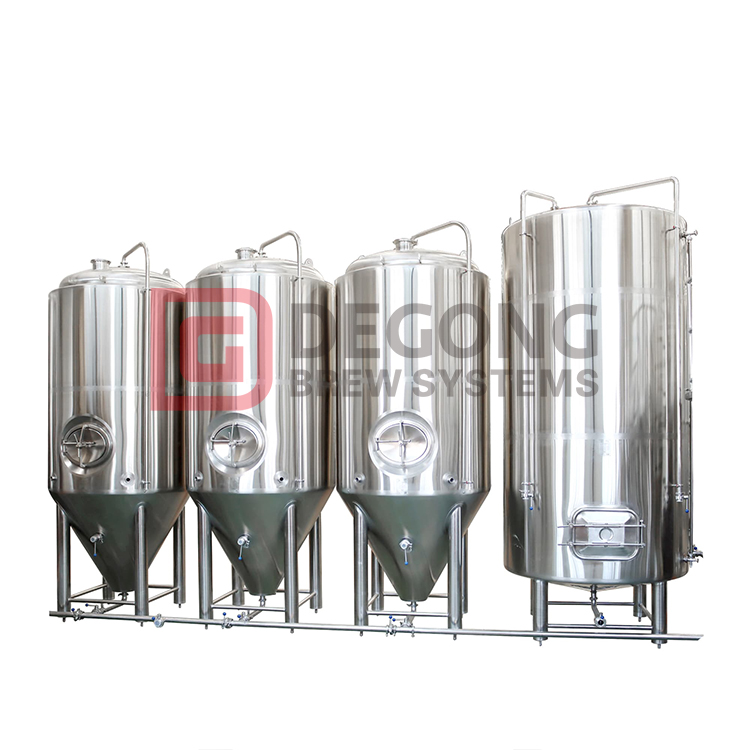

99

Product specifications

Volume Working Volume Overall diameter Total height
Vmax, hl V, hl
Dext, mm Hmax, mm
13 10
1100 3100
21 16
1400 3200
25 20
1300 3850
32 25
1550 3650
38 31
1600 3900
51 40
1600 4650
63 50
1750 4800
74 60
2000 4600
80 70
2000 4850
100 80
2000
5600
120 100
2150
5800
158 126
2150
7050
195 156
2350
7200
251 201
2350
8700

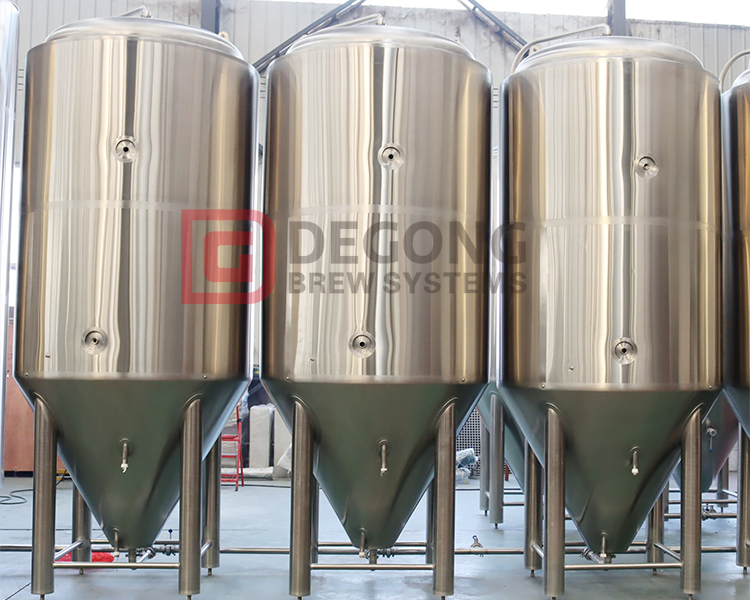

100

Vessel design data
Working pressure: 3 barg
Working temperature: -2°C +30 °C
Internal surface finish (roughness): Ra < 0,8 m


Cooling jacket design data
Working pressure: 3 barg
Working temperature: -10°C +30 °C


93857875


Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
