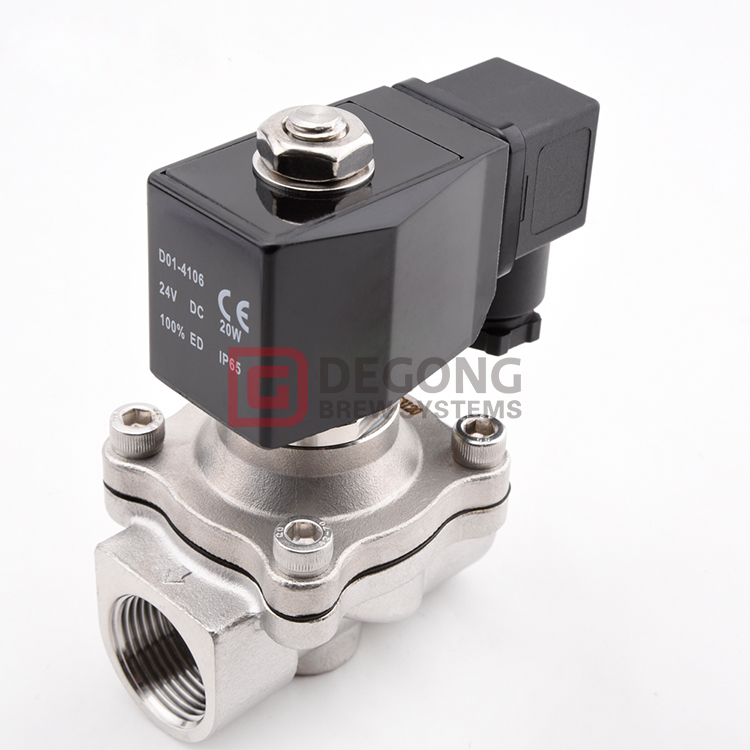

DEGONG-1'' 24V 12V Solenoid Valve | Stainless Steel Electromagnetic Valve

The solenoid valve can cooperate with different circuits to achieve the desired control, and the accuracy and flexibility of the control can be guaranteed. There are many kinds of solenoid valves, and different solenoid valves play a role in different positions of the control system.
Availability:
Quantity:
  • DEGONG-1''
  • DEGONG
Product Description

1'' Solenoid Valve


Specification
Connection sizeinfo 1 inch
Voltageinfo 24 V DC
Materialinfo Stainless steel
Seal materialinfo NBR (nitrile rubber)
Functioninfo Normally closed
Operationinfo Indirect
Recommended for Air
Alcohols
Combustible gases
Lubricant
Oil
Sea water
Water (up to 60°C)
Max pressure (bar)info 16
Connection type Inner thread cylindrical BSPP-G
Features Anti-waterhammer
Energy efficient (under 9 VA)
Low noise
Min temperature (°C) -10
Max temperature (°C) 80
Valve bore (mm) 25
Kv value (m3/h)info 30
Degree of protection (IP) IP65
nnectioninfo

DIN-A

Material qualityinfo Stainless steel 316 (1.4408)
Min pressure difference (bar)info 0.2
Model Straight
Coil typeinfo AC10
Max. ambient temp. (°C) 55
Nominal power (VA) 8
Duty cycle 100%
Peak power (VA)info 9.5

210

Main feature

1. External leakage is blocked, internal leakage is easy to control, safe to use

2. The system is simple, it can be connected to the computer, and the price is low

3. Express action, small power, light appearance

4. The adjustment accuracy is limited, and the applicable medium is limited

5. Diverse models and wide applications

211

Working principle

There is a closed cavity in the solenoid valve with through holes at different positions. Each hole is connected to a different oil pipe. In the middle of the cavity is a piston. There are two electromagnets on both sides. Which side of the magnet coil will be attracted to the valve body when it is energized. On the other hand, by controlling the movement of the valve body to open or close the different oil discharge holes, and the oil inlet is normally open, the hydraulic oil will enter the different oil discharge pipes, and then the piston of the cylinder is pushed by the oil pressure. Drive the piston rod, and the piston rod drives the mechanical device. In this way, the mechanical movement is controlled by controlling the current on and off of the electromagnet.

212
