Customized Parts OEM Sanitary Stainless Steel SS304 SS316 Tri Clover Fitting Tri Clamp Long Ferrule

Additional space is provided on the three-clamp ferrule to allow orbital welding to be carried out on-site. Only 304 316L stainless steel alloy is available. This product is usually in stock and shipped on the same day you place the order.
Availability:
Quantity:
  • 1/2"-10" long Ferrules
  • DEGONG
Product Description

1/2"-10" long Ferrules


Certification
CE, ISO9001
Customized support
OEM, ODM
Application
Food & Beverage & Chemicals & Pharma
Power
Manual
Media
Liquids and viscous liquids
Port Size
1/2"-10", DN10-DN200
Standard
DIN/SMS/ISO/RJT
Connection Mode
Clamp/weld
Working pressure
0-10 BAR
Working temperature
-60-180°C (Silicone),  -50~150°C (EPDM),  -80~280°C (PTFE)
Seal
silicone,EPDM,FKM,PTFE,NBR
Function
Piping connection and flow control
Surface treatment
CNC machined Ra<0.8μm

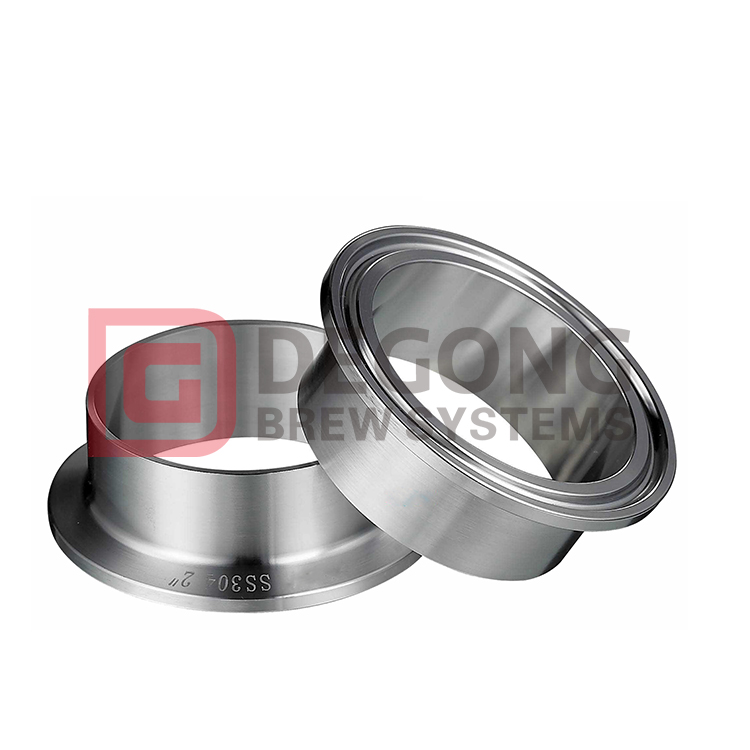

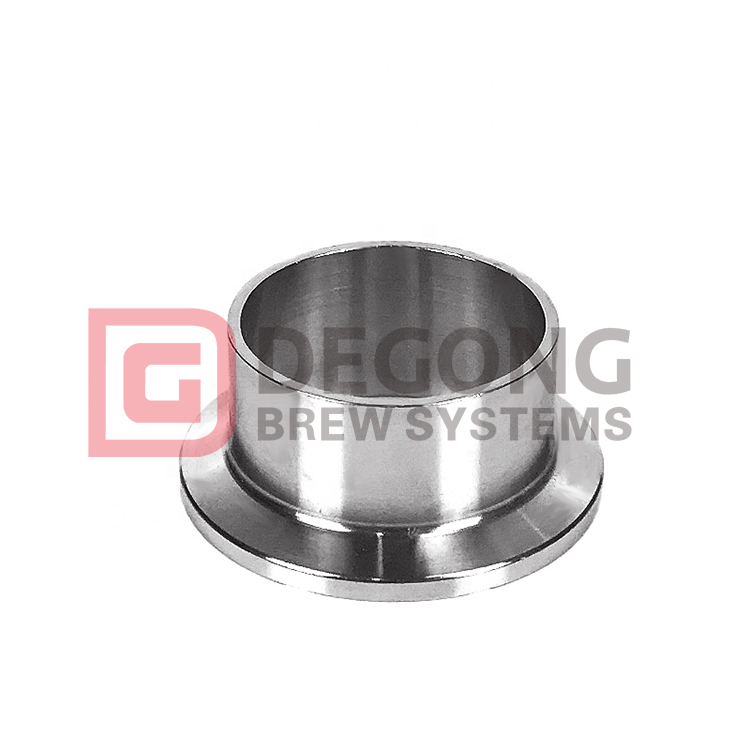

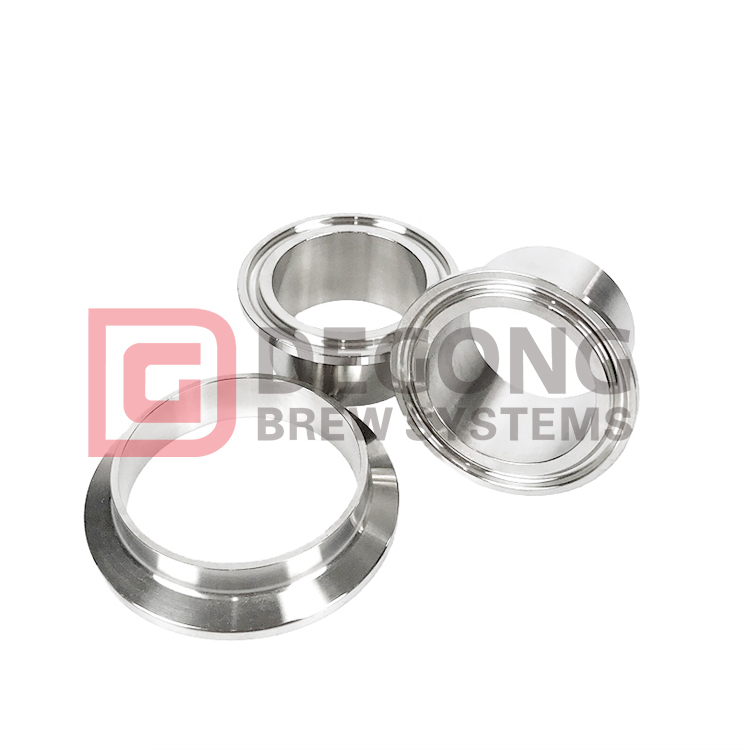

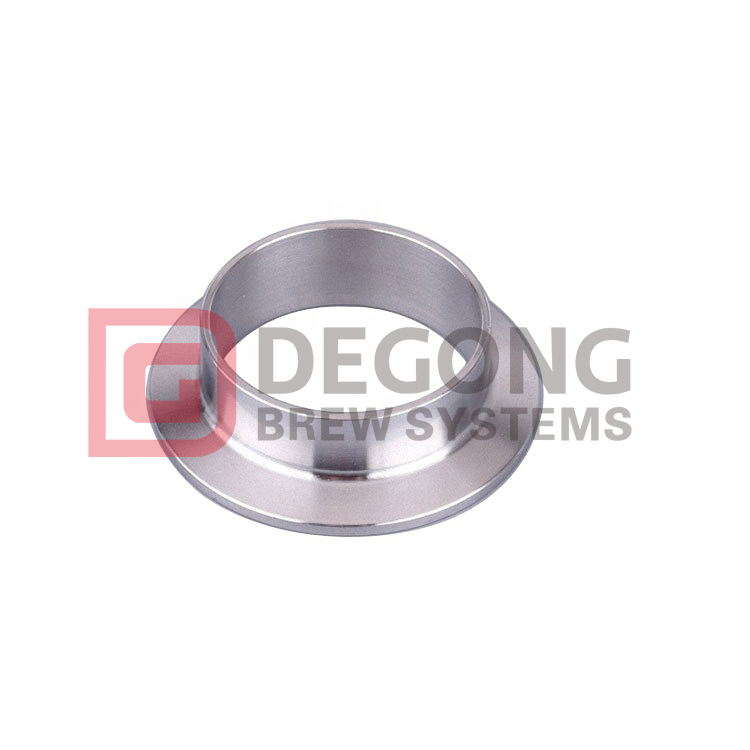

118119122117

Clamp Fittings and Gasket Sizing Guide123

Sanitary Size Outside Diameter (OD) of Clamp End Inside Diameter (ID) of Fitting
1/2" 0.992 0.370
3/4" 0.992 0.620
1" 1.984 0.870
1 1/2" 1.984 1.370
2" 2.516 1.870
2 1/2" 3.047 2.370
3" 3.579 2.870
4" 4.682 3.834
6" 6.562 5.782
8" 8.602 7.782
10" 10.570 9.782

120121

Related Products

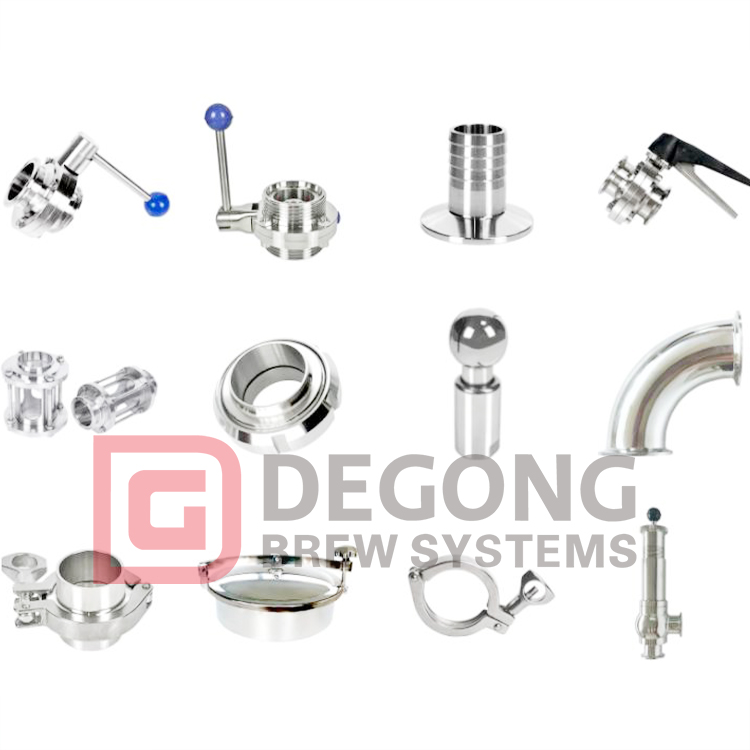

124



We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
