DG-2000L
DEGONG
| Configuration |
Design Pressure 45 psi (3bar); Working Pressure 15psi (1bar)
4 stainless steel legs with leveling feet
Inner shell: 304 stainless steel, thickness 3mm
Shell: 304 stainless steel, thickness 2mm
The interior and exterior finishes are bright to 0.6~0.8 μm, and the surface is hygienic
All internal welds are ground to a smooth 0.6~0.8 μm hygienic finish
Flange and disc head top and bottom
Carbonization System and Micron Stone
Temperature sensor well
All clamps and washers for attaching all accessories
The tank is complete with piping, fittings, sanitary valves and all parts.
If you want to change, add, delete or modify any part of the tank, we have your request.
After a deposit, specific fitting sizes, changes and locations will be set up during the design process.
| Specification | ||||
Bright Tank Series | Volume by US Gallon | Conical Degree | Diameter | Height |
200L Bright Tank | 53US Gallon | 60 (70,90 availabe) | 820mm | 1400mm |
300L Bright Tank | 79US Gallon | 60 (70,90 availabe) | 860mm | 1650mm |
600L Bright Tank | 106US Gallon | 60 (70,90 availabe) | 1060mm | 1900mm |
800L Bright Tank | 132US Gallon | 60 (70,90 availabe) | 1160mm | 2050mm |
1000L Bright Tank | 159US Gallon | 60 (70,90 availabe) | 1260mm | 2100mm |
1200L Bright Tank | 211US Gallon | 60 (70,90 availabe) | 1360mm | 2100mm |
1500L Bright Tank | 264US Gallon | 60 (70,90 availabe) | 1360mm | 2400mm |
2000L Bright Tank | 317US Gallon | 60 (70,90 availabe) | 1560mm | 2350mm |
2500L Bright Tank | 396US Gallon | 60 (70,90 availabe) | 1560mm | 2800mm |
3000L Bright Tank | 528US Gallon | 60 (70,90 availabe) | 1760mm | 2700mm |
3500L Bright Tank | 660US Gallon | 60 (70,90 availabe) | 1760mm | 3050mm |
4000L Bright Tank | 793US Gallon | 60 (70,90 availabe) | 1760mm | 3350mm |
5000L Bright Tank | 925US Gallon | 60 (70,90 availabe) | 1760mm | 3900mm |
6000L Bright Tank | 1057US Gallon | 60 (70,90 availabe) | 1960mm | 3860mm |
| Packaging and Shipping |
The product is wrapped with soft protective material.
If the product is too high, it must be loaded down and installed on the iron frame.
Export standard crate packing (usually LCL, but can also be FCL if customer needs).
After being loaded into the container, the product will be well fixed on the container.

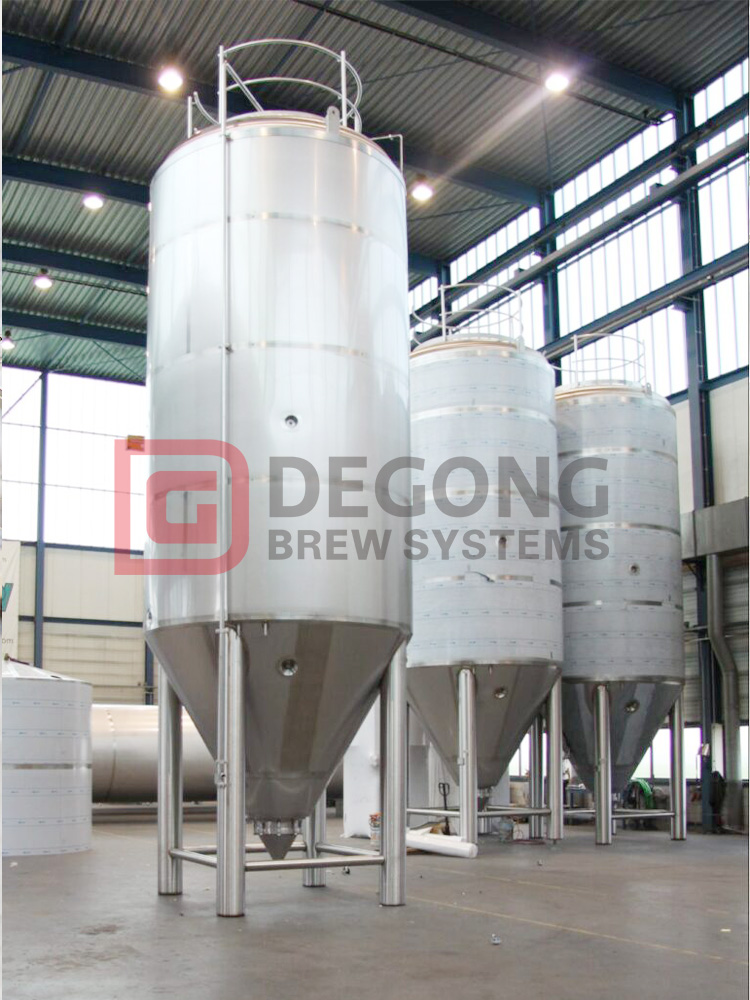

DEGONG 5000L conical fermentation tanks
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
