DG-1000L
DEGONG
| Main technologies |
The oil and water phase materials are mixed at high speed to obtain a perfect high-quality emulsion product.

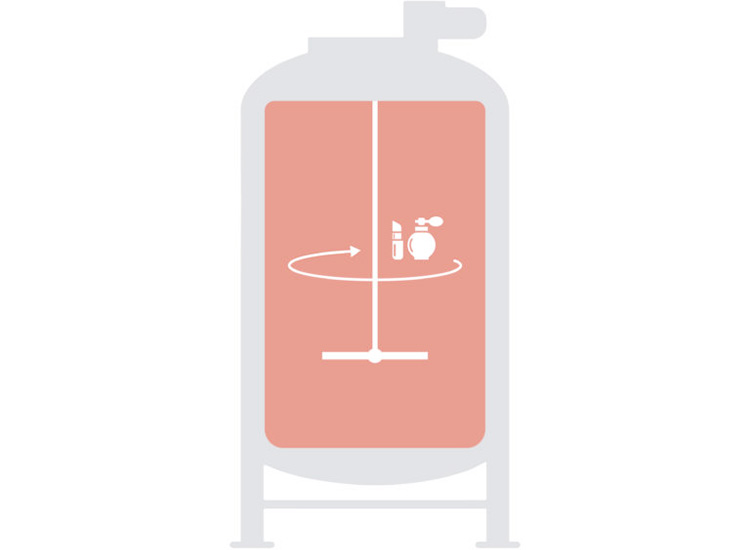

The machine consists of a vacuum resistant container with jacket for heating and cooling. Equipped with high speed homogenizer, scraper agitator, vacuum pump and hydraulic pump for lifting, heating and cooling system.
Use a vacuum pump to extract the air bubbles in the mixed product to prolong the storage time.
The scraper unit adopts a movable Teflon scraper to scrape off the material on the tank wall and anchor rod, and move the material to the center area for better mixing and mixing. Teflon scrapers can be easily maintained by hand without any tools.
Our vacuum emulsification equipment is equipped with heating and cooling system, which simplifies the processing process. Within the same equipment, you can go from heating - melting - emulsification - reducing air bubbles (by vacuum) - cooling without changing the container, saving a lot of labor and time for your production.
All contact parts of the equipment are SUS316L, and the product is homogeneous in a vacuum-tight container, hygienic and of good quality.
Raw material metering, heating, melting, emulsification, cooling temperature recording, stirring speed change, vacuum suction control.
| Application |
Fruit juice food and drink sugar, salt, ingredients mix
Raw material mixing, liquid mixing for pharmaceutical biotechnology
Laboratory Medical and Medical Devices Chemical Coating Industrial
| Specification |
Stainless steel Mixing tank | |
Material: | SS304 or SS316L or Duplex stainless or 904L |
Design Pressure: | -1 -10 Bar (g) or ATM B9 |
Work Temperature: | 0-200 °C |
Volumes: | 100~30000L |
Construction : | Vertical type or Horizontal type |
Jacket type : | Dimple jacket, full jacket, or coil jacket |
Structure : | Single layer vessel, vessel with jacket, vessel with jacket and insulation |
Heating or cooling function | According to the heating or cooling requirement , the tank will have jacket for requried function |
Opitional Motor: | ABB, Siemens, SEW or Chinese brand |
Surface Finish: | Mirror Polish or Matt polish or Acid wash&pickling or 2B |
Standard components : | Manhole,sight glass , cleaning ball |
Optional components : | Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Load cell Valves |
Applications: | Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting Industrial |
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
