Clamp/Weld/Thread/ Flange Stainless Steel Sanitary Ball Valve with Encapsulated Gasket

Ball valve: A valve in which the opening and closing parts (ball) are driven by the valve stem and rotate around the axis of the valve stem. Mainly used to cut off or connect the medium in the pipeline, and can also be used for fluid adjustment and control
Availability:
Quantity:
  • Sanitary Ball Valve
  • DEGONG
Product Description

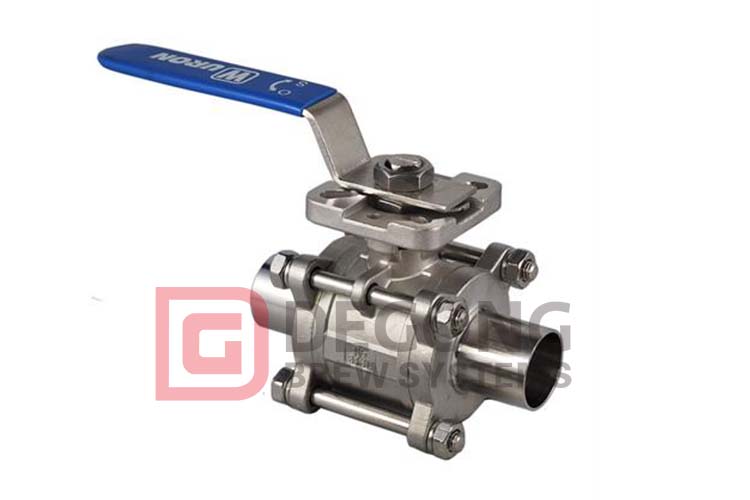

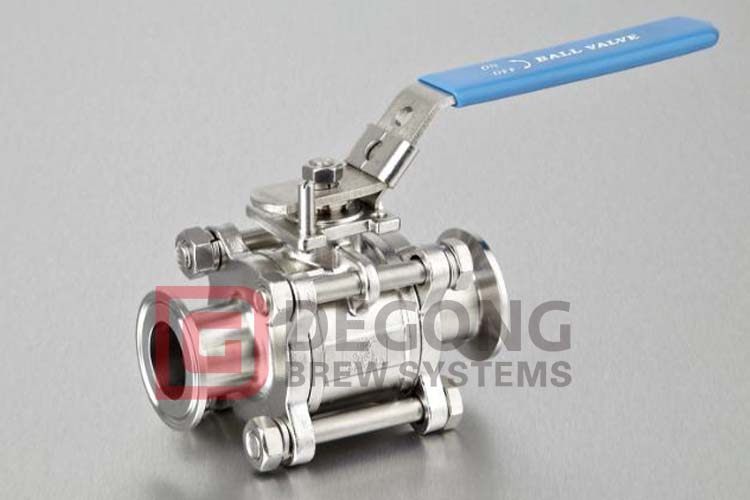

1. Product name: SS304L/SS316L stainless steel sanitary flange ball valve

2. Available size: DN15-DN50 (1/2in-2in)

3. Pressure: PN(Mpa)1.0-PN1.6

4. Valve body material: SS304L/ SS316L

5. Standards: DIN, SMS, RTJ, 3A, ISO, IDF, BPE

6. Connection method: welding, clamp, male, female, flange or combination

7. Available structure: adjustment

8. Operation type: manual, pneumatic, electric

9. Sealing material: EPDM, silicon, PTFE, Viton, NBR


13


10. Surface treatment:

Ra≥0.4- 0.8 um (internal)

Ra≥0.8-1.6 um (external)

11. Maximum pressure: 10Bar

12. Working temperature: -20℃ -120℃

13. Medium: liquid, gas, oil and highly corrosive chemical medium

14. Application: Dairy products, food, beverages, fruit juices, pharmaceuticals, cosmetics and other industries.

15. Certificate: CE/ISO/FDA certificate.

16. Packing: carton, plywood box, pallet or according to your requirements

17. Band: DEGON

14
