Brewing system 7bbl steam or electric brewhouse fermenters with jacket and double wall for sale

Whether you brew the biggest brands, or the latest craft beer style, We can help you differentiate and expand.

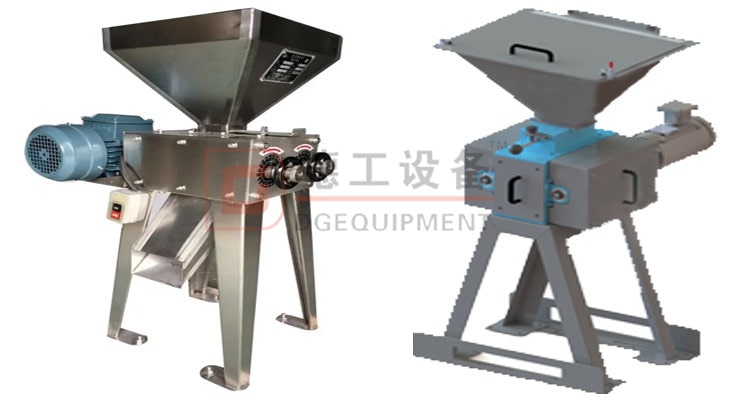

Mill system:

Roller malt miller used for mash the malt, to achieve the effect of malt breaking without crushing.

Grain miller

Mashing system:

Mash/lauter/kettle/whirlpool, two vessels, three vessels of brewhouse can be chosen, can be combined with any combination. The tanks will be using stainless steel 304 as its material to make, and after finished, all the tanks will be a pressure test to guarantee its quality. From top to the bottom of tank, we use the horizontal motor, with manway hole, chaff door, false bottom, bolt legs, drains, agitator, etc. Three layers are made up of the mash/lauter/kettle/whirlpool tun, outer layer, inner layer, insulation layer’ thickness is 80-100mm, and we usually use PU to achieve the keep temperature goal.

Excellent brewhouse system 7bbl size

Fermentation system

A whole system we will be equipped with 4 pcs equal capacity of the fermenters to our customers at least. If you want to make many batches of mashing per day, the answer is different, this time the capacity of fermentation is not equal to the mashing system,it can be twice size of brewhouse and more. Fermenters have the conical bottom, the angle of conical is 60° , the benefit to yeast precipitation. Pressure vacuum relief valve and mechanical pressure regulation valve are installed in the fermenters, to guarantee the tanks’safety. When the pressure is negative or too higher than normal, it will be automatic open.

Install top 7bbl fermentation tanks

Cooling system

It was made up of an ice water tank, chiller, circulate pump. The ice water tank function is cool down the temperature of wort, and fermenter. Ice water means the mixing of water and alcohol, and alcohol concentration is 95%, they will be mixed together, and in the rate of one to four. The tank is cylindrical in appearance, the tank is fitted with a level gauge, you can see the rest of liquid, avoid leaking and can help you observe.

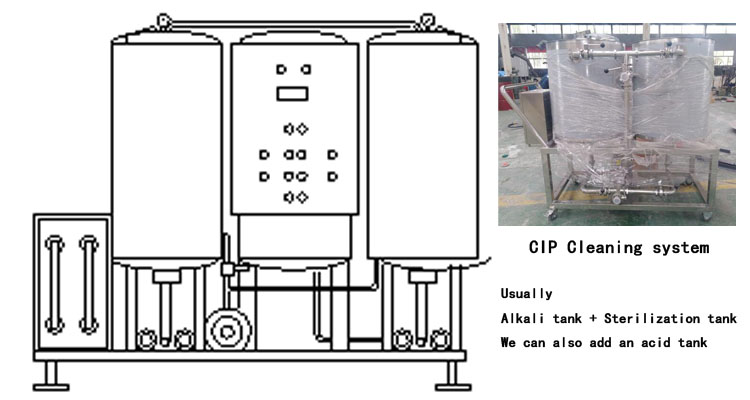

CIP cleaning system

Two tanks with one control cabinet were installed on the skid cart. One of them is sterilized tank, and another is a alkali tank.

Control system

PLC and Siemens digital display control cabinet with touch screen, you can monitor the temperature of each tank and situation. The control panel will have each tank’s button and screen.

In our excellent collection of brewing equipment, we offer our clients premium quality Microbrewery Equipment. This brewery equipment is well-manufactured by the use of premium quality components, basic material and sophisticated technology.
