Best Technology Machinery Beer Mustard Oil Machine Plate And Frame Filter Press

The convex point filter plate is used to effectively increase the cross-sectional area of the water, reduce the liquid filtration and flow resistance, make the liquid flow to the improper dead angle, and maintain the stability of the liquid properties.
Availability:
Quantity:
  • Best Technology Plate And Frame Filter
  • DEGONG
Product Description

Best Technology Plate And Frame Filter


Technical parameter


Model specification

Number of layers (pieces)

Filter area(m2)

Filter material size(mm)

Membrane pore size(um)

Filtration pressure(Mpa)

Water flow(T/h)

Water flow(T/h)

Dimensions(mm)

1-150

10 0.170 150 0.8 0.1 1.5 1.1 750*330*680

1-200

10 0.314 200 0.8 0.1 3.0 1.1 790*380*750

1-300

10 0.706 300 0.8 0.1 5.0 1.1 850*460*880

1-400

10 1.250 400 0.8 0.2 8.0 2.2 1050*690*1100


Material

All are sanitary stainless steel SUS 304/316L.

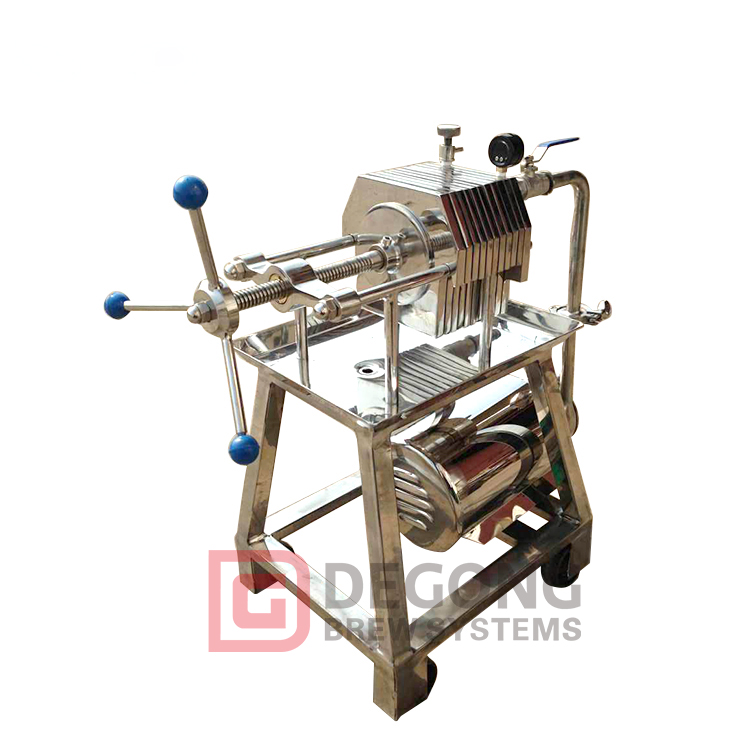

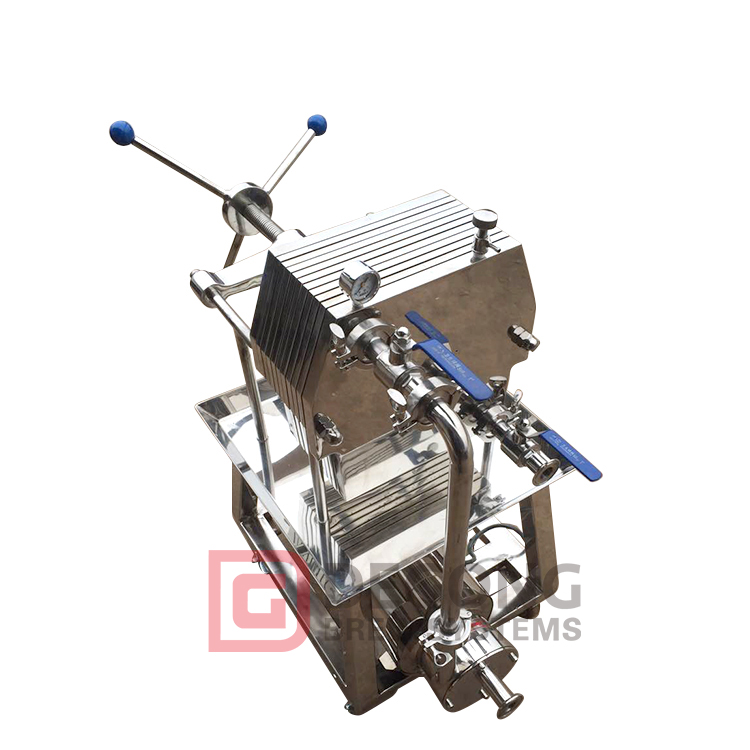

Products Show

329328

313311316315325


Application

This machine can be widely used in pharmaceutical, food, beverage, water treatment, brewing, petroleum, chemical, anti-corrosion, environmental protection and other industries. It is the latest equipment for filtering, clarifying, purifying and sterilizing various liquids.


Features

  • The convex point filter plate is used to effectively increase the cross-sectional area of the water, reduce the liquid filtration and flow resistance, make the liquid flow to the improper dead corner, and maintain the stability of the liquid properties. The convex point filter plate makes the filter material (filter membrane, filter paper, etc.) not easy to damage, and prolongs the service life of various filter materials.

  • All seals are installed (milky white silicone rubber seal ring, non-toxic and high temperature resistant) without leakage, that is, round seal rings are installed at the front and rear of the filter frame, and seals such as double folding snap rings at the water inlet and outlet.

  • The water inlet pipe is connected and sealed with a double-fold snap ring, which is easy to disassemble and clean and easy to clean.

  • This machine can replace different filter materials according to the requirements of different production processes of filtrate (primary filtration, semi-precision filtration, fine filtration). Users can reduce or increase the filter frame filter material according to the production flow rate, which is widely adapted to production needs.

  • When the filter is working, the sealing ring is pressed tightly, the material liquid will not be lost, and the liquid clarity is good. The microporous filter membrane is used for sterilization, and the sterilization effect is particularly good.


Our strength

  • Import advanced machinery to manufacture high-performance products.

  • R&D team with many years of experience to provide the best design

  • Reasonable price, punctual delivery, and 24-hour after-sales telephone service

  • Diversified products to help customers with one-stop purchase


We hope to establish good business relations with customers through sincere contact and cooperation. The company's aim is to supreme quality and reputation, and sincerely welcome domestic and foreign partners.

If you want to know more detailed information about our equipment, please contact us.
