| manhole for fermenter: | |
|---|---|
| Heating method: | |
| Control method: | |
| Quantity: | |
DGET-3000L
DEGONG
8438400000
| 3000L Commercial Beer Brewing Equipment |

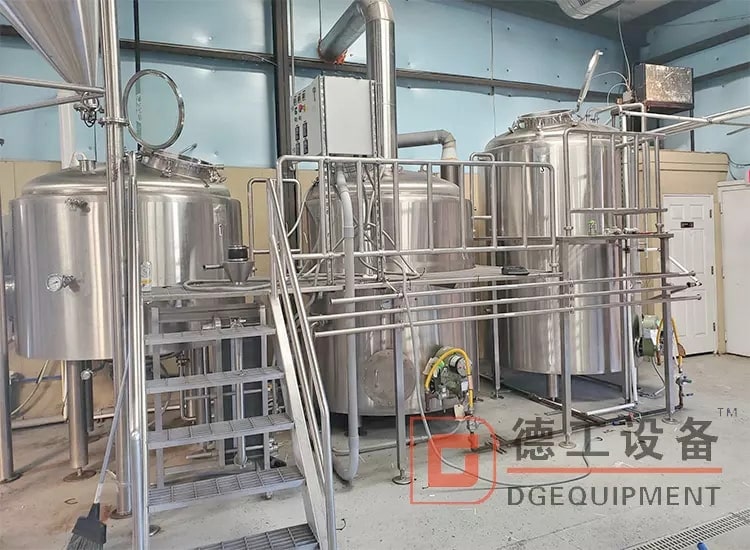

3-vessel brewhouse system 3000L
Item: 3000L Commercial Brewery system
Applications: Micro brewery, Industrial brewery
| 1 | Malt milling system | Malt miller machine,Grist case,Flex auger |
| 2 | Mash system | Mash tank, lauter tanK Boiling tank, whirlpool tank Hot water tank (Optional) Mash/wort/hot water pump Motors Wort oxygenation device Operation platform Plate heat exchanger |
| 3 | Fermenting system | Beer fermenters Bright beer tanks Yeast adding tank Accessories, such as sample valve, pressure gauge, safety valve and so on |
| 4 | Cooling system | Ice water tank Cold water tank Refrigeration unit Ice water pump |
| 5 | CIP cleaning system | Disinfection tank & alkali tank & cleaning pump etc |
| 6 | Controller | Control system: PLC automatic and semi-automatic, the elements brand include Siemens and so on. |

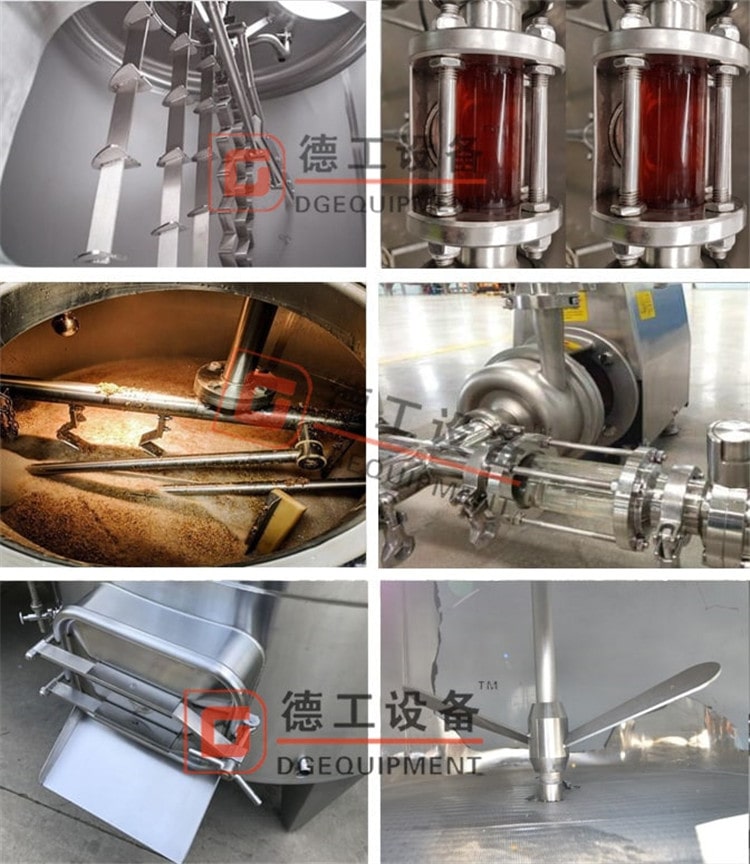

Rakes,Sight glass;Spent Grain Hatch;stirred
Main Features:
1. 3000L brewhouse:
1).Heating method: steam
2).Hot &cold water recycle for saving energy
3).Automatic lifting agitator and raker system
4).Automatic agitator and raker system for maxing and spent grain .
5).Famous brand for pump and steam boiler.
6).Mash pipe has no dead corner for easy cleaning and brewing.
7).Continue production, 3-4batches per times.
8).Semi-Automatic or full automatic control system for optional.
Beer fermenters and components:spray ball;thermometer,pressure gauge
2.Fermentation system
Technical Characteristics:
All AISI-304 Stainless Steel Construction
Jacketed & Insulated
Dual Zone Dimple Cooling Jacket
Dish Top & 60° Conical Bottom
4 Stainless Steel Legs with Leveling Ports
Specifications:
Working Capacity: 3000L, 6000L, 9000L
Inner Diameter: Customized
PU Insulation: 70-100mm
Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, outer shell: 2 mm
Fermenter Includes:
Top Manway or Side Shadow less Manway
Racking Port with Tri-Clover Butterfly Valve
Discharge Port with Tri-Clover Butterfly Valve
2 Tri-Clover Outlets with Butterfly Valves
CIP Arm and Spray Ball
Sample Valve
Pressure Gauge
Safety Valve
Thermowell
3.Cooling Unit
-Insulated glycol water tank and cold water tank
-Efficiency chillers or refrigerators with Freon to supply cooling energy
-Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
-All pipes, fitting, insulation materials are included
4.CIP unit
-Material SS304, Thickness for tank 2mm
-Heating power for Alkali Tank
-Tank amount: 4pcs: Sterilization tank, Acid tank, Alkali liquor tank.
-Separate control for CIP unit.
| Contact Alice today |
In our excellent collection of brewing equipment, we offer our clients premium quality Microbrewery Equipment. This brewery equipment is well-manufactured by the use of premium quality components, basic material and sophisticated technology.
