Ale and Lager 5-15 bbl production ​multi-vessel micro-breweries for sale

The ease and budget-friendliness of a plug and play system, backed with the outstanding support and service of DEGONG Company's 10 years of processing equipment experience. Our small brewhouse comes in 2, 3, or 4 vessel configurations to fit your production needs.
manhole:
brewhouse combination:
Heating method:
Quantity:
  • DGET-10BBL
  • DEGONG
  • 8438400000
Product Description
10BBLsmall breweries

Complete line of small scale, multi-vessel, ale and lager 5-15 bbl production micro-breweries


turnkey brewery-min

10bbl brewing system with grant and hopper


Standard product features:

1 x Brew kettle / whirlpool vessel with multi steam jackets

1 x Mash/lauter tun vessel with side grain out door

1 x DOUBLE brew length 316 SS hot liquor tank with dual steam jackets

1 x SS work platform with sanitary process piping & sanitary valves

2 x Sanitary wort pumps with variable speed control

1 x SS HLT pump with variable speed control

1 x SS wort grant

1 x Sanitary heat exchanger and wort aeration system

1 x Water flow meter

1 x Control panel PID or PLC touch screen

2 x Tank light assemblies

1 x Mash hydration assembly

1 x Cellar package with brewers hoses, valves and fittings

1 x SS grist hopper

1 x grain auger

1 x two roll malt mill – 1000kg /hr

6 x Fermenters/uni-tanks – DOUBLE brew length

2 x Brite beer tank – DOUBLE brew length

1 x Glycol chiller – outdoor unit

1 x Cellar control panel with RTD & solenoid valves

1 x Portable sanitary CIP/wort pump, SS cart & VFD controller

1 x CAD layouts, installation assistance, assembly, training

1 x Add Sink & Flash Chiller


fermentation tanks001-min

2 arm fermentation tanks 10bbl


OPTIONS:

Cold liquor tank

Mash/lauter rakes

Steam jacketed mash lauter tun

Extra capacity mash lauter tun

Magnetic flow meter

Hopback

2 stage heat exchanger

Kettle condensing vent stack

Platform Modifications for Future Vessels


The ease and budget-friendliness of a plug and play system, backed with the outstanding support and service of DEGONG Company's 10 years of processing equipment experience. Our small brewhouse comes in 2, 3, or 4 vessel configurations to fit your production needs.


Brewery details show:



lauter tun detail

Raker and spent grain hatch and Put a box below to collect

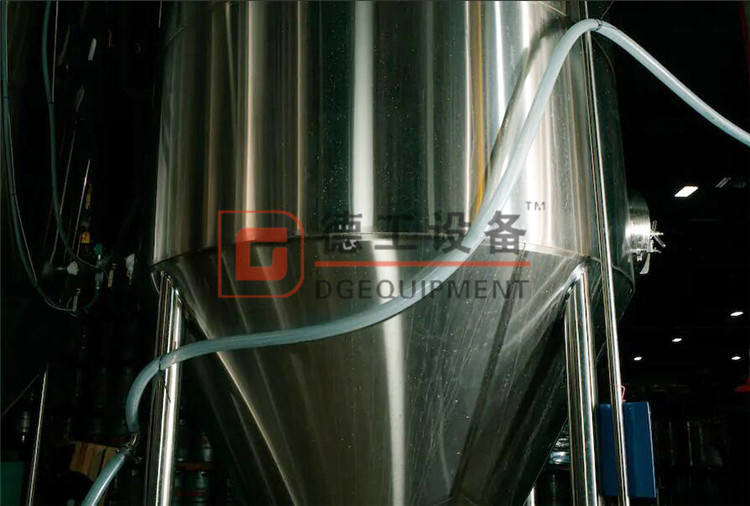

FV Bright

Cylindrical and cone of fermentation tanks


control system

Control cabinet PID panel


mash-tun-min

Brewkettle and adding hops into this tank


malt millers

Customized Grain miller based on your requirements


High Gravity Mash Tun

  • Low pressure steam jacket with PLC controlled temperature control for optimum profile capability

  • VFD speed and function controlled, custom engineering mash mixer for low sheer, efficient mash mixing designed to handle high gravity brews


High Gravity Lauter Tun designed to handle larger grist loads

  • Integrated, VFD speed and function controlled rake system designed to cut and lift grain bed to maximize extract yield, reduce lautering time and automate grain out processes

  • Custom designed wedge wire false bottom designed to maximize yield and minimize grain pass-through

  • Grain out access manway for easy and efficient grain out processing

  • Multipoint wort collection design for uniform bed formation and high yield extract collection


Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control

  • Custom designed vessel optimized for rapid boiling and efficient and high yield trub separation

  • Low pressure steam jacket with PLC controlled temperature control for efficient and vigorous boil control

  • Tangential inlet for proper centrifugal force for efficient trub separation


Semi-Automated Controls with Allen-Bradley PLC & Remote Access Support

316L Sanitary Pumps with VFD Controls

316L Stainless Steel Plate Heat Exchanger with integrated temperature controls

Manual Sanitary Butterfly Valves

Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions


Contact Alice today

In our excellent collection of brewing equipment, we offer our clients premium quality Microbrewery Equipment. This brewery equipment is well-manufactured by the use of premium quality components, basic material and sophisticated technology.
