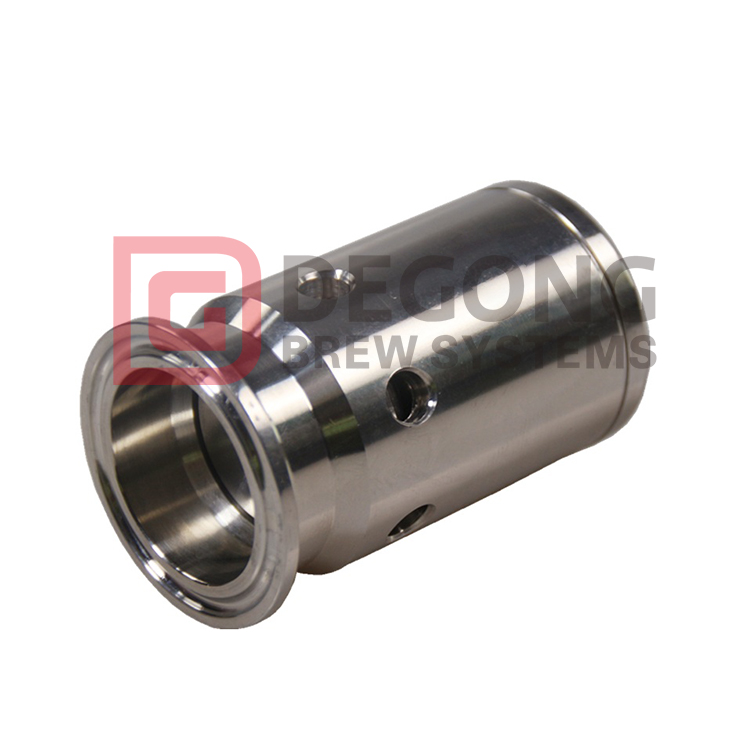

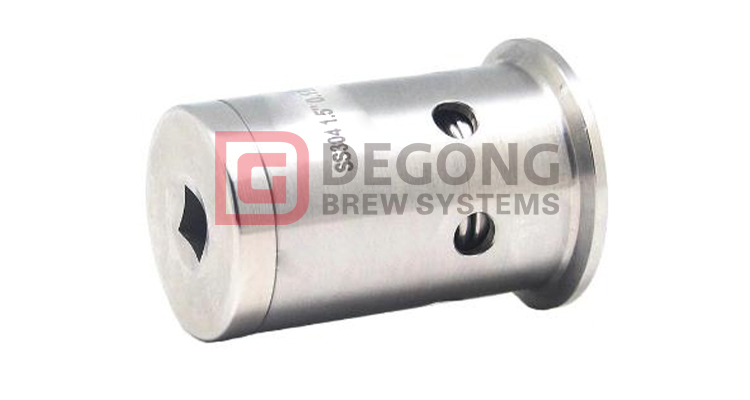

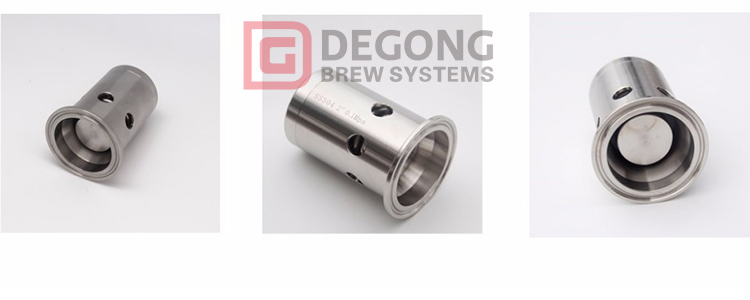

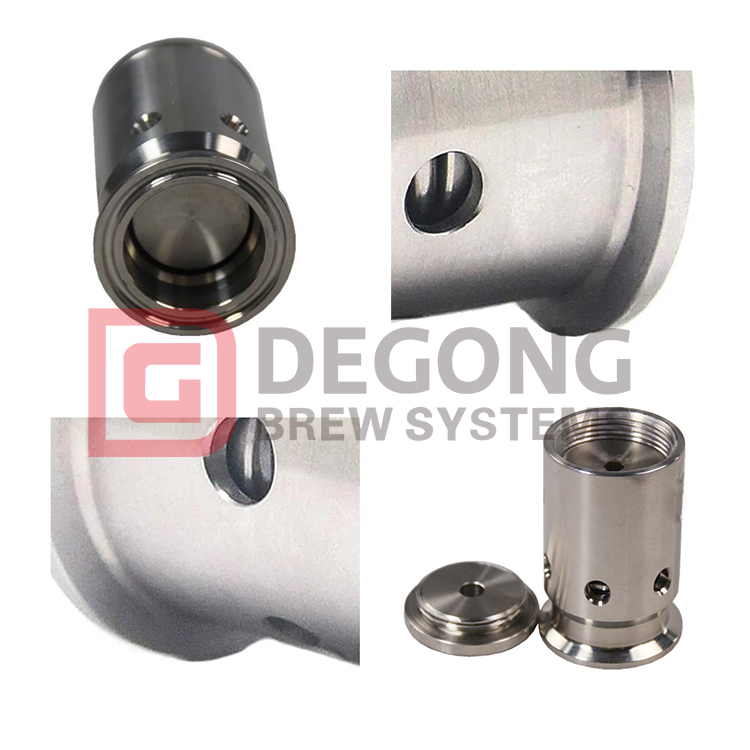

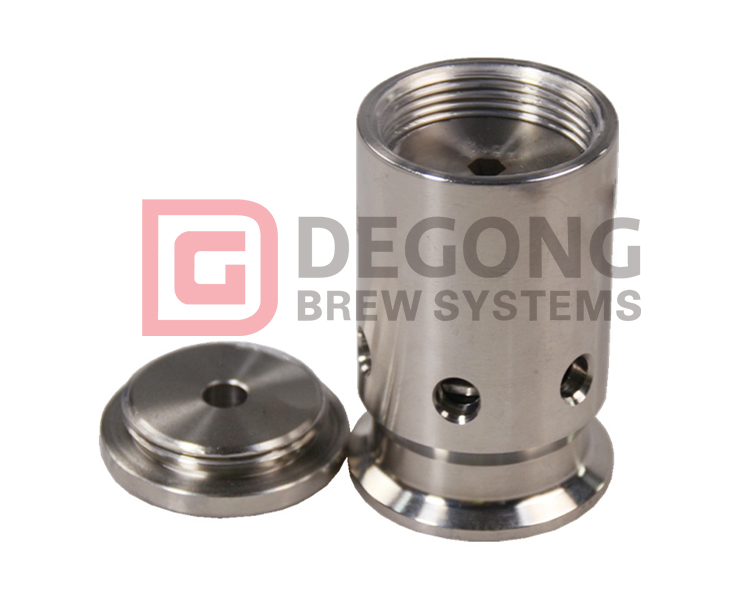

1.5" Tri Clamp Ferrule OD 50.5mm 304 Stainless Steel 0-1/2/3 Bar Adjustable Pressure Relief Breaker Vacuum Valve

Fermenter vacuum & pressure relief valve that can be calibrated by turning nut position from 1 bar to 2 bar to meet tank pressure rating. Sanitary design and construction for beer tank.
Availability:
Quantity:
  • Pressure Valve
  • DEGONG
Product Description

Adjustable Vacuum & Pressure Relief Valve

• Made of 304 stainless steel

• 2" tri-clamp connections

• Pressure 1 - 2 bar

To ajust PRV pressure relief, use a triclamp Tee with gas inlet on one port, pressure gauge and PRV on other 2 port.   Wear protect eyeware or face sheild.   Set the gas inlet to the desired relief pressure and validated with pressure gauge reading.  Adjust with a 3/8" drive rachet wrench so gas is just leaking out at the desired pressure.

4344454746




4948

It is adjustable!!!!!


Please contact DEGONG if necessary.
