Water Purification Device Stainless Steel Bag Filter Housing

Working principle

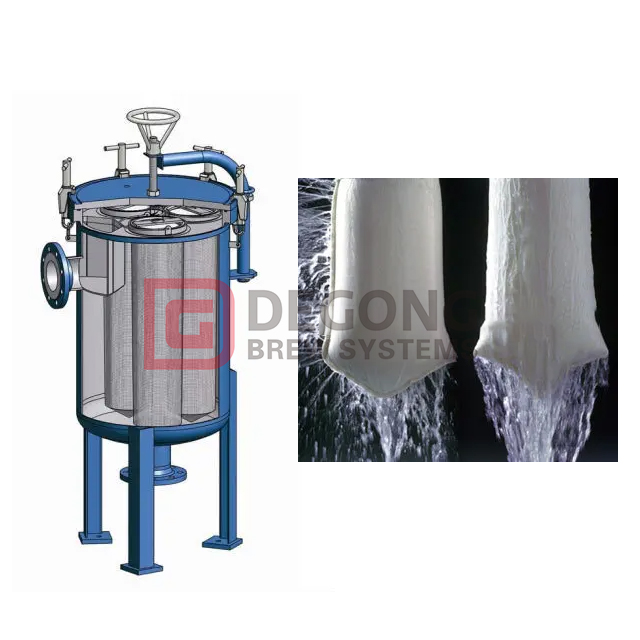

A bag filter is widely used for liquid filtration, it can remove particles of different sizes from liquid, to achieve liquid filtration, purification, separation, and recovery purposes. It comprises three parts: bag housing, supporting basket, and filter bags. You may use multiple bags in a bag housing according to flow rate. First, the liquid enters into the housing from the inlet, which may placed on the side or the top, and then flows into the filter bag which is braced by the basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flows out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete. When you replace or clean the bag, just loosen the bolt, rotary hand wheel lift the lid, and get the bag.

Main advantages

01. Small probability of side-bag leakage, which effectively guarantees the filtering quality.

02. A type filter can bear greater working pressure, it is of small pressure loss, low operation cost, and obvious energy saving.

03. The accuracy of the filtration bag increased continuously, it could reach 0.5 μm at most.

04. Bag-type filter with large handling capacity, small volume, containing a large quantity of pollutants.

05. Based on the working principle and structure of the Bag type filtering system, it is convenient to replace the filter bag without cleaning, and time-saving and labor-saving.

06. Filtration bag could be used repeatedly after cleaning to save cost.

07. The bag filter application scope is broad, with flexible operation and multiple installations.

To customers

1. What is the kind of water you want to treat?

2. What is the water flow you want to treat per hour?

3. Do you have other specific requirements for bag filters?

Technical parameters

Application

Bag filter systems are applied in various industry solutions. Treated liquids include milk products, paint, lime, beer, chemicals, mineral water, hot solvents, latex, inks, sugar water, juice, etc.
