(1) Able to achieve continuous discharge and feeding
(2) The change of feeding amount can be achieved by adjusting the speed of the impeller. Within a certain speed range, the feeding amount is proportional to the speed.
(3) It has a certain degree of airtightness and is suitable for discharging equipment with pressure difference between two places.
(4) Granular materials are not easy to break.
(5) Suitable for feeding or discharging high-temperature materials
(6) Simple structure, easy operation and maintenance

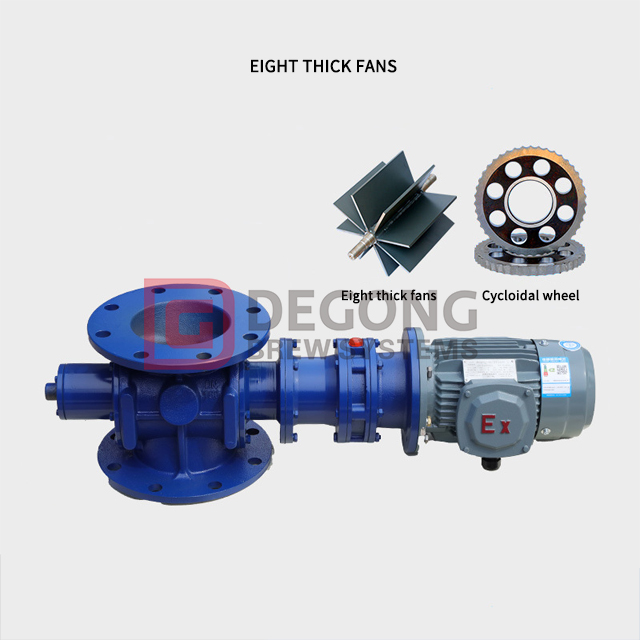

The conventional product 2L-26L fan (non-standard can be customized) currently produced adopts eight-blade conveying, the blade shaft is enlarged, and the torsional strength of the blade shaft is enhanced. The reduction device adopts the motor coupling plate (Southern National Standard Motor Zhiheng Swing Plate), which is easy to install and maintain. The box body and the side cover adopt tension fit, which reduces the deformation of the box body during use.
Positioning: The discharger is the main equipment for dust removal equipment to discharge dust, supply air and other equipment feeding, suitable for powdery materials and granular materials.
Classification: The discharger is mainly divided into A-type discharger and B-type discharger
The square inlet and outlet flanges are A-type, and the round ones are . This discharger device is the main equipment for dust removal equipment to discharge dust, shut off air and other equipment feeding, suitable for powdery materials and granular materials. It is widely used in environmental protection, metallurgy, chemical industry, grain, food and other industrial departments.
Product function introduction
1. Compact structure, beautiful shape, easy to use
2. Smooth operation and low noise
3. Since the bearing and gear box are a distance away from the housing, high temperature and lubrication are greatly improved
4. Our factory can also design and manufacture according to user requirements
5. This product has been filled with special grease for pinwheel cycloidal reducer before leaving the factory. Please check and refuel regularly

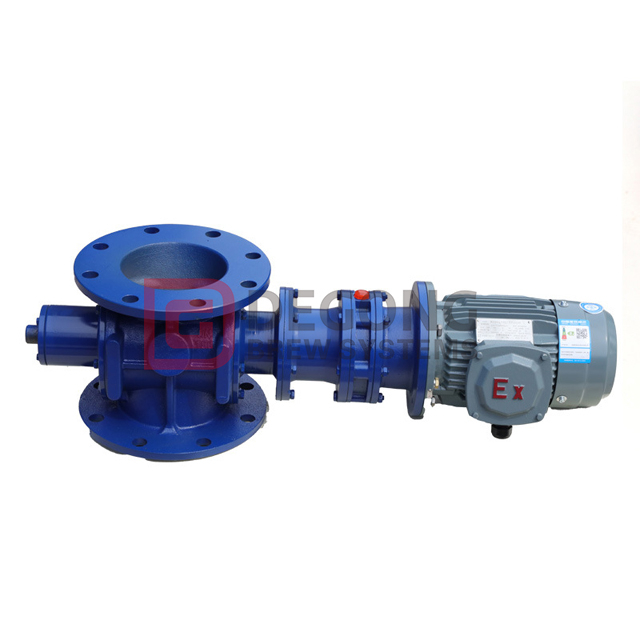

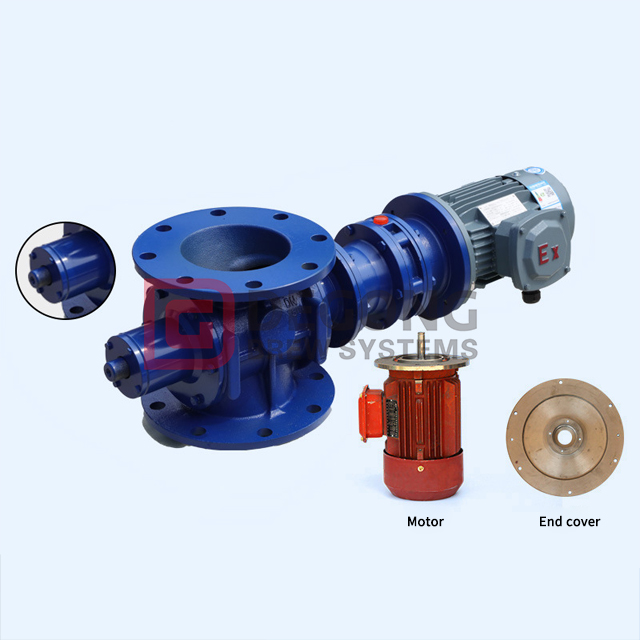

The discharge device is divided into three parts: motor, cycloidal pinwheel reducer and dragon-type ash discharge valve. The star-shaped discharger device is the main equipment for dust removal equipment to discharge dust, supply air and other equipment feeding. Excellent sealing performance, even and stable feeding, smooth unloading operation, low noise, few faults, long service life, high wear resistance, bearings, gear boxes, away from the valve body, avoid the influence of high temperature dust, front and rear cover sealing performance is good, prevent dust leakage, extend the service life of motor parts and lubrication system. Strong overload capacity, small impact resistance inertia force, suitable for frequent starting and reverse rotation. This product has been filled with special grease for pinwheel cycloid reducer, please check and refuel regularly.
