DEGONG-10'' 20'' 30'' 40''
DEGONG

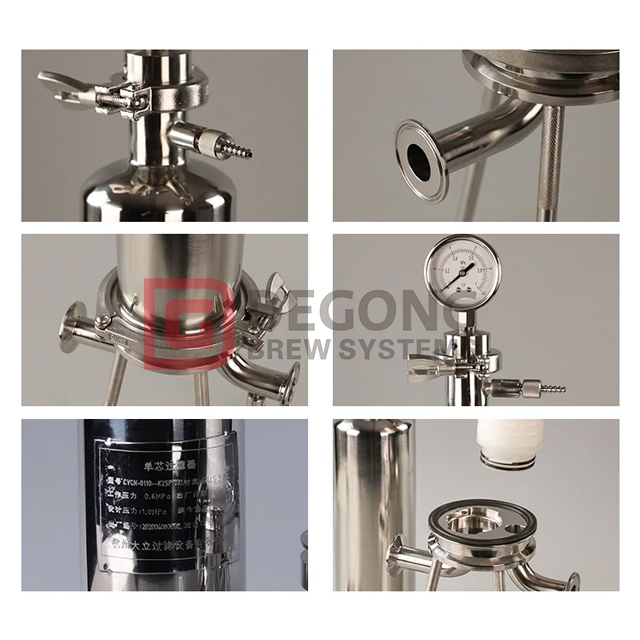

Single Cartridge Filter Housings
PSCF Series Single Cartridge Filter Housings are used for small flow rate liquid filtration, it is constructed of stainless steel material, inside and outside surface is electropolished finish, Sanitary grade. It has the vent valve and clean drain, hose barb port.

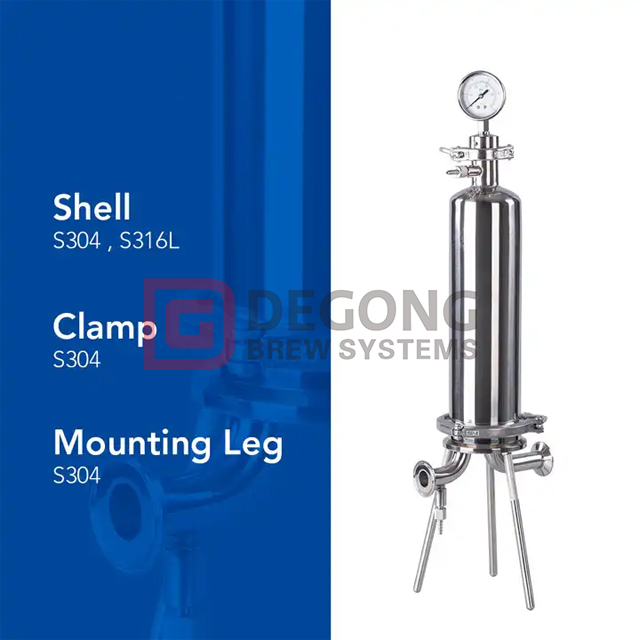

Material of Constructions | |
Shell | S304,S316L |
Clamp | S304 |
Mounting Leg | S304 |
O-Ring | EPDM,Silicone,Viton |
Performance | |
Maximum Operation DP | 0.6MPa |
Maximum Operation Temperature | 150℃ |
Surface Polishing | Inside Ra<0.4um, electropolished finish |
Port | Outside Ra<0.8um, electropolished finish Inlet:DN25,Outlet:DN25 |

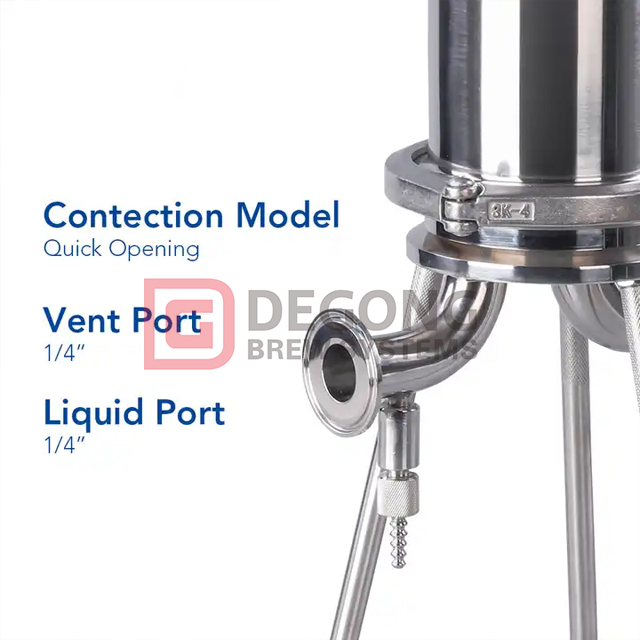

Vent Port | 1/4" |
Liquid Port | 1/4" |
Connection Model | Quick Opening |
• Filter Cartridges are manufactured in a clean room environment
• Manufacturered according to ISO9001:2015 certified Quality Management System
• Materials used to produce filter media and hardware meet the specifications for biological safety per USP Class VI-121C for plastics.
• Filter cartridges Meet European Commission Directives (EU10/2011)
