Single Or Double Head Keg Washing/filling Machines Beer Kegs

Keg washing/filling machines produced by DEGONG performed with 1 or 2 washing heads. The machine is specially designed for washing and sterilizing various beer fresh-keeping containers, such as stainless steel barrels, plastic beer barrels and fresh beer barrels. It can automatically accomplish all of the procedures of washing, sterilizing and CO2 pressure preparing, heated by steam or electric heating elements.
heated:
Availability:
Quantity:
  • DEGONG keg washer/filler
  • DEGONG
Product Description

Keg washing/filling machines produced by DEGONG performed with 1 or 2 washing heads. The machine is specially designed for washing and sterilizing various beer fresh-keeping containers, such as stainless steel barrels, plastic beer barrels and fresh beer barrels. It can automatically accomplish all of the procedures of washing, sterilizing and CO2 pressure preparing, heated by steam or electric heating elements.

Each step of working procedure is controlled with programmable Siemens controller at worksite with time sequence.

This machine is easily installed and operated, can be used in both factories and brew pubs.


001


TECHNICAL DATA:

Dimension of machine (l*w*h): 1200x1450x1800 mm

Maximum piston travel of cylinder: 300 mm

Net weight: 220 kg

Capability: 80-100 barrels/hour (20L barrels)

Air consumption: 8-22.5 m3/h

Water consumption: 1-3 m3/h

Power: 950w

Washing way: Upside down

Demanded size of barrel: Diameter: 250 - 500 mm

Height: 360 - 560mm

Air source pressure: 0.6-0.8mpa

Co2 pressure: 0.2-0.3mpa

Voltage: Ac 220v 50hz single phase (for steam heated machine)

002


Working Process

Filling Station: Fix The Keg--Filling--Stop--Take The Keg

Washing Station: Impact The Keg ---Drain Residue--Water Rinse--Caustic Rinse--Hot Water Rinse--Steam Sterilization -- Co₂ Pressurization -- Take The Keg

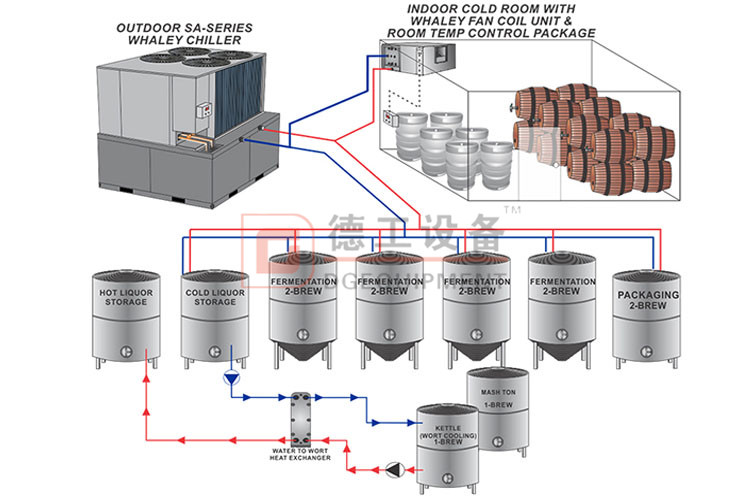

glycol systemAlice downroad
