Liquid/oil/wine/beer/honey/syrup/paint Filtration Machine Stainless Steel 304 Multi Bag Filter Housing

Liquid bag filters can effectively remove dirt, pipe scale and other contaminants in process liquids such as water, beverages, chemicals and petroleum products. The net-like inner lining basket of the bag filter housing can also be used as an optional feature to provide a relatively large effective filtration area and achieve more effective filtration results. The eye bolt closes the system.
Availability:
Quantity:
  • Multi Bag Filter Housing
  • DEGONG
Product Description

Multi Bag Filter Housing


Model
Filter bag#
Filter bag Qty
Firltration area(m²)
Connection
Max. Flow (m³/h)
Working pressure(MPa)
1D
1#
1
0.25
DN50
20
0.5-1.6
2D
2#
1
0.5
DN50
40
0.5-1.6
2P2S
2#
2
1
DN50-DN100
70
0.5-1.6
3P2S
2#
3
1.5
DN80-DN100
100
0.5-1.6
4P2S
2#
4
2
DN80-DN150
140
0.5-1.6
5P2S
2#
5
2.5
DN80-DN150
175
0.5-1.6
6P2S
2#
6
3
DN80-DN150
210
0.5-1.6
7P2S
2#
7
3.5
DN80-DN150
245
0.5-1.6
8P2S
2#
8
4
DN100-DN200
280
0.5-1.6
10P2S
2#
10
5
DN150-DN200
350
0.5-1.6
12P2S
2#
12
6
DN150-DN250
420
0.5-1.6
4P2S
2#
14
7
DN200-DN250
490
0.5-1.6
16P2S
2#
16
8
DN200-DN300
560
0.5-1.6
18P2S
2#
18
9
DN250-DN350
630
0.5-1.6
20P2S
2#
20
10
DN250-DN400
700
0.5-1.6
22P2S
2#
22
11
DN300-DN450
770
0.5-1.6
24P2S
2#
24
12
DN350-DN450
840
0.5-1.6


Advantages of bag filter

◆ Large capacity and small volume

◆ Easy to replace the filter bag and save effort

◆ The filter bag can be reused after cleaning, saving cost

◆ Filtration accuracy reaches 0.5-500 μm

◆ Low leakage risk, guarantee quality

◆ High working pressure, low pressure loss, low operating cost, energy saving

◆ It has a wide range of application, flexible use, and a variety of installation methods to choose from.

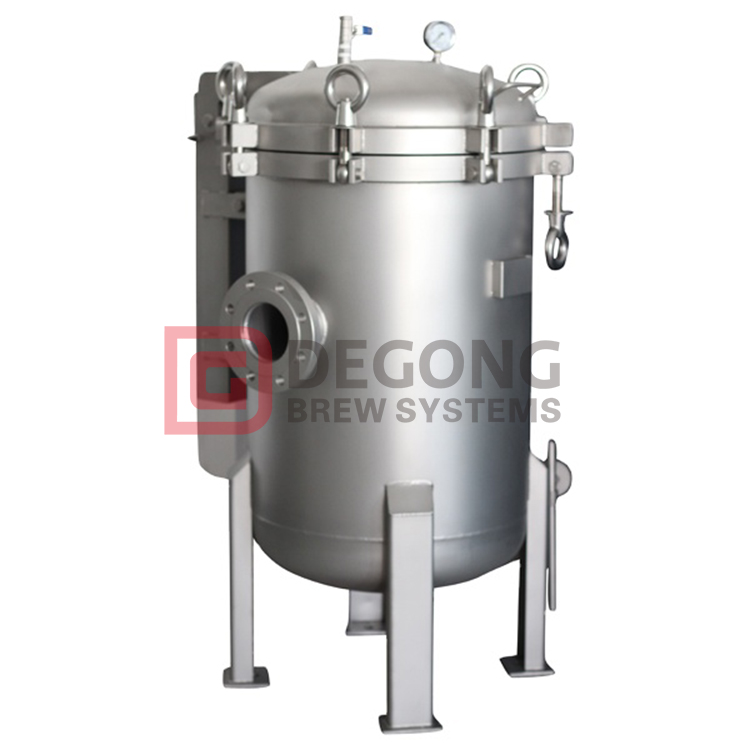

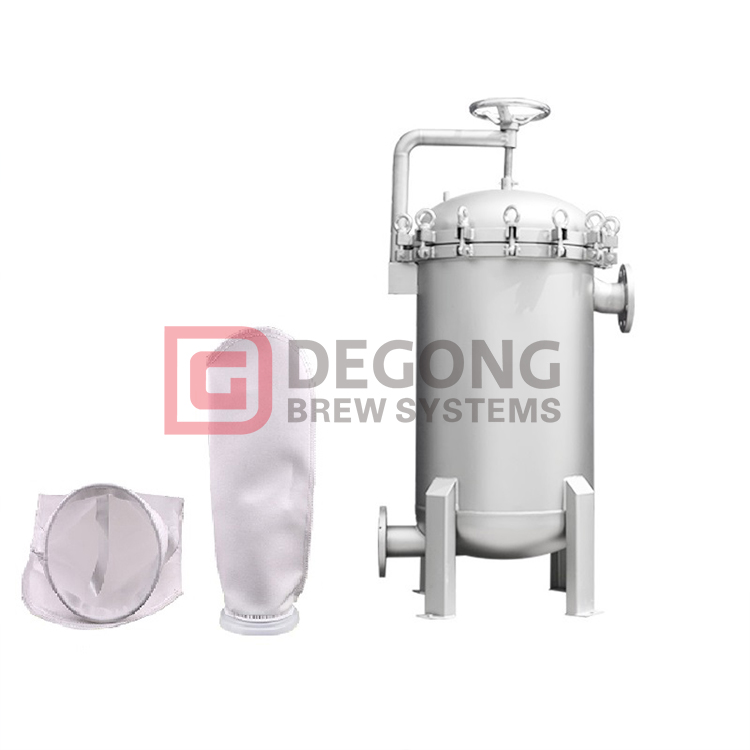

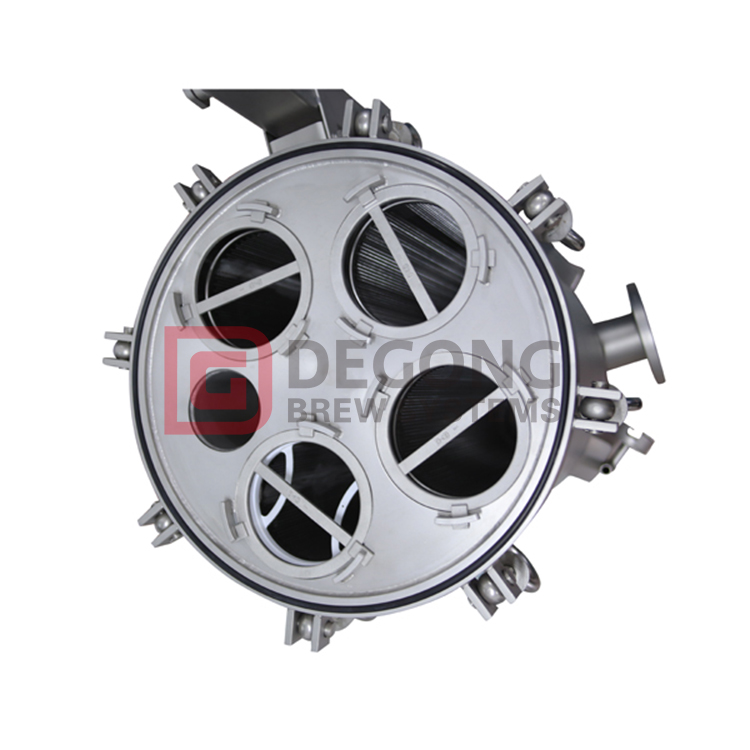

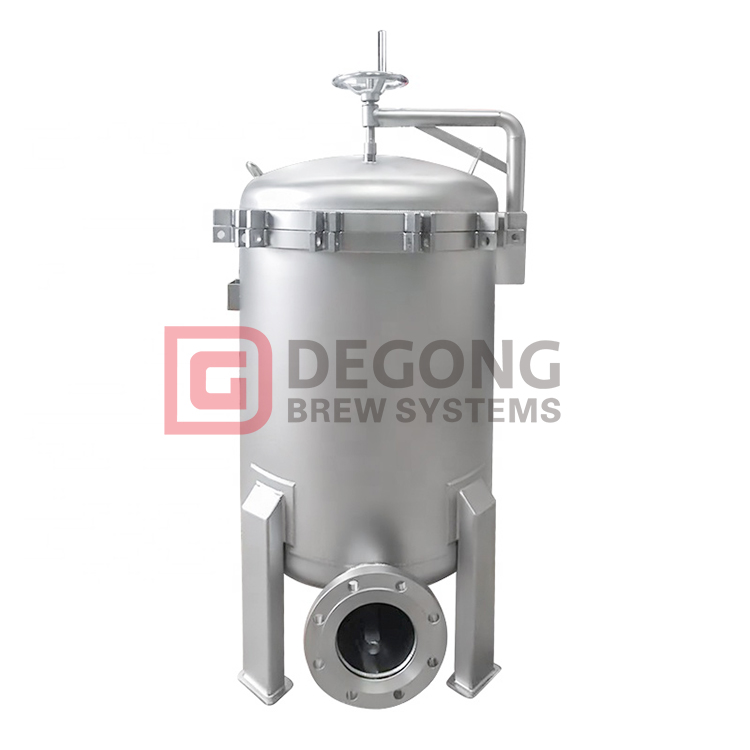

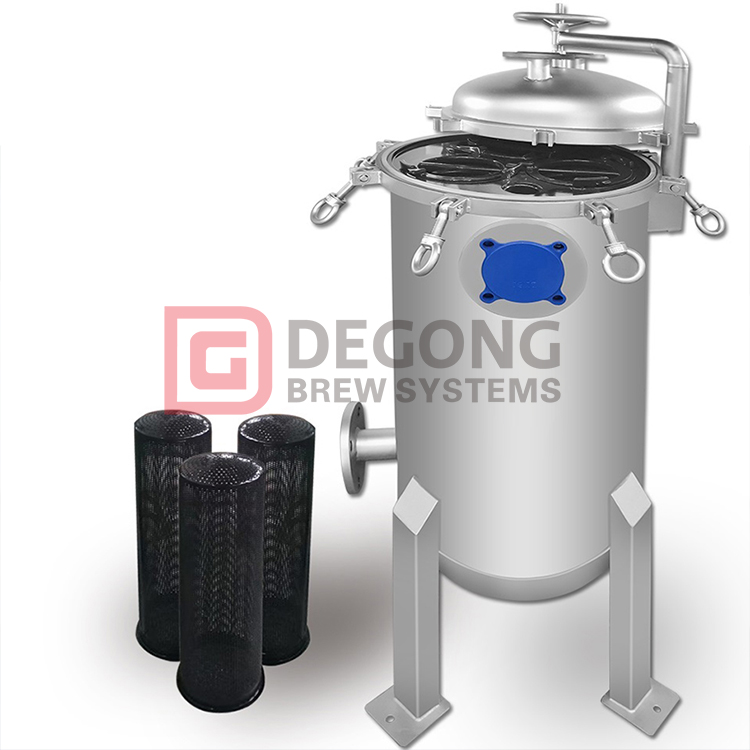

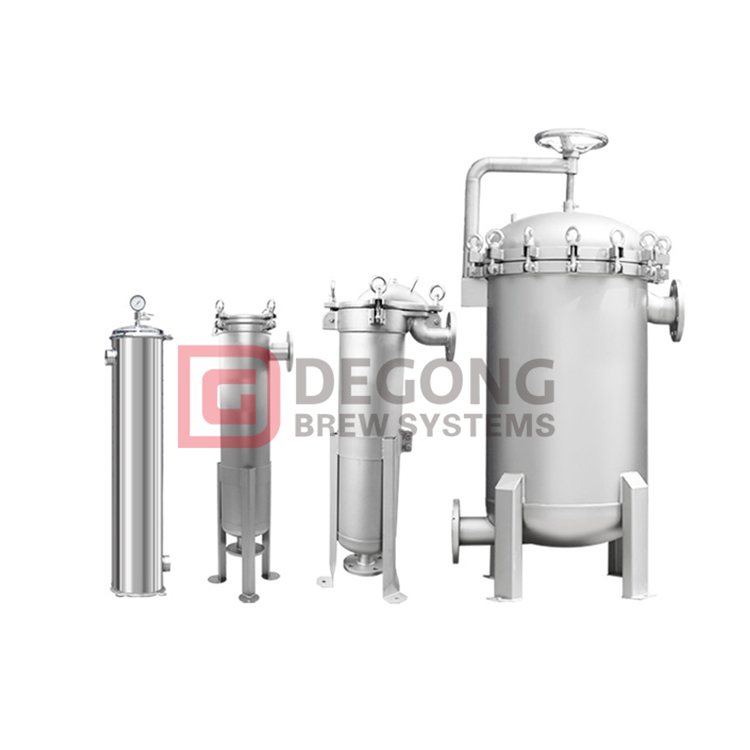

Products Show

275279280278281282

Application scenarios

  • Pure water, beverage filter unit

  • Industrial water treatment filter machine

  • Paints and coatings filter machine

  • Grease filter machine


Packaging and shipping

In order to be a clear production cost, payment must actually control production; otherwise, it is considered another type of expense. We often pack according to customer requirements.


The best quality and ex-factory price Our company has always insisted: integrity management, quality first, reasonable price, and service first are the cornerstones.

You are welcome to send us inquiries and orders.
