Glycol Chiller Industrial Water Cooled Screw Chiller For Injection Factory

The air-cooled cold and hot water unit adopts a control system with a microcomputer as the core. The control system has strong control accuracy and anti-interference ability to ensure safe, reliable and economic operation of the unit. The automatic control of energy adjustment can make the unit always operate efficiently at the best economic mode point.
Availability:
Quantity:
  • Air-cooled Screw Chiller
  • DEGONG
Product Description

Air-cooled Screw Chiller


Product Description

Feature

Compressor

The unit is equipped with semi-hermetic screw compressors. Compared with piston compressors, semi-hermetic screw compressors have two major advantages: 1 Few parts (about 1/3 of piston compressors), simple structure, and easy Few damaged parts, high reliability and long life. 2 The compressor has uniform suction and exhaust, low exhaust temperature, low vibration, insensitive to wet compression, and strong anti-liquid hammer ability.

Throttle device

For the expansion valve, we choose the most advanced products, with a compact overall design, and a solid stainless steel diaphragm to provide stable and accurate control under a wide range of working conditions.

Electronic control

The air-cooled cold and hot water unit adopts a control system with a microcomputer as the core. The control system has strong control accuracy and anti-interference ability to ensure safe, reliable and economic operation of the unit. The automatic control of energy adjustment can make the unit always operate efficiently at the best economic mode point. Complete protection functions The unit has functions such as overload, short circuit protection, antifreeze, high and low voltage protection, and overheat protection.

Tube-fin air-cooled condenser

The tube-fin air-cooled condenser adopts an inverted "V" layout, which on the one hand improves the space utilization rate and increases the heat exchange area, and on the other hand improves the airflow and heat transfer efficiency, thus improving the cooling and heating capacity of the unit .

Shell and tube evaporator

The shell-and-tube structure is adopted, and the exterior is made of flame-retardant, waterproof and thermal insulation materials, and the working pressure on the water side is 1.0 MPa. The evaporator adopts PVC plastic water board, which is corrosion resistant. Chilled water flows up and down along the diaphragm to increase the turbulence effect and improve the heat transfer capacity of the evaporator. The latest DAC corrugated spiral high-efficiency heat transfer tube is used to strengthen the heat transfer capacity of the fluorine side, improve the heat transfer coefficient, and ensure the good cooling and heating performance of the unit.


Technical data

Model
Unit
AW150
AW180
AW250
AW320
AW380
AW430
AW500
Cooling capacity
kW
156
180
250
320
380
428
497.6
Heating capacity
kW
180
198
276
353
416
474
550
Compressor
Qty
Nr.
1
1
1
1
1
2
2
Cooling power input
kW
49.3
54.2
77.4
96.7
114
131.6
154.8
Cooling current
A
87.8
95.2
134
166
199
229.2
268
Heating power input
kW
48.4
53.2
76
95
112
129.2
152
Heating current
A
86.5
93.7
132
164
196
225.7
264
Energy adjustment steps
step
4
4
4
4
4
8
8
Evaporator
Water flow rate
m3/h
26.7
31
42.8
54.8
65
74
85.6
Water side pressure drop
kPa
41
41
42
42
42
42
43
Water pipe
DN
100
100
100
125
125
125
125
Axial Fan
Fan motor number
Nr.
4
4
6
6
8
10
12
Power input
kW
4*2.2
4*2.2
6*2.2
6*2.2
8*2.2
10*2.2
12*2.2
Current input
A
4*5.6
4*5.6
6*5.6
6*5.6
8*5.6
10*5.6
12*5.6
Air flow
m3/h
68000
96000
144000
144000
196000
240000
288000
Dimensions
Length
mm
2500
2500
3300
3590
4680
5800
6790
Width
mm
2160
2160
2160
2160
2160
2160
2160
Height
mm
2450
2450
2450
2450
2450
2450
2450
Sound pressure level
dB(A)
73
73
75
75
78
80
81
Net weight
kg
2050
2350
2750
3150
3650
4800
5250
Model
Unit
AW570
AW640
AW700
AW760
AW870
AW930
AW1000
AW1180
Cooling capacity
kW
568
637.8
700
758
868
923.8
992.8
1172
Heating capacity
kW
630
706
772
827
953
1014
1086
1264
Compressor
Qty
Nr.
2
2
2
2
3
3
3
3
Cooling power input
kW
174.1
193.4
210.7
228
268.8
286.4
309.6
348.2
Cooling current
A
300
332
365
398
467
497.2
536
600.4
Heating power input
kW
171
190
207
224
264
281.2
304
342
Heating current
A
296
328
360
392
460
489.7
528
591.2
Energy adjustment steps
step
8
8
8
8
12
12
12
12
Evaporator
Water flow rate
m3/h
97.4
109.7
120
130
149
159
170.8
201.6
Water side pressure drop
kPa
43
44
45
45
45
45
45
45
Water pipe
DN
125
150
150
150
150
150
150
200
Axial Fan
Fan motor number
Nr.
12
12
14
16
18
18
18
20
Power input
kW
12*2.2
12*2.2
14*2.2
16*2.2
18*2.2
18*2.2
18*2.2
20*2.2
Current input
A
12*5.6
12*5.6
14*5.6
16*5.6
18*5.6
18*5.6
18*5.6
20*5.6
Air flow
m3/h
288000
288000
333600
384000
432000
432000
432000
576000
Dimensions
Length
mm
6790
7190
8280
9370
10290
10580
10980
11780
Width
mm
2160
2160
2160
2160
2160
2160
2160
2160
Height
mm
2450
2450
2450
2450
2450
2450
2450
2450
Sound pressure level
dB(A)
81
81
82
83
83
83
83
83
Net weight
kg
5600
6150
6900
7600
8900
9650
10000
11000

The performance values refer to the following conditions:

Cooling: ambient air temperature 35ºC; evaporator inlet/outlet water temperature 12/7ºC.

Heating: ambient air temperature DB 7ºC, WB 6ºC; condenser inlet/outlet water temperature 40/45ºC.

The sound pressure is measured in an open area 1 m above the ground and 1.5 m above the ground.

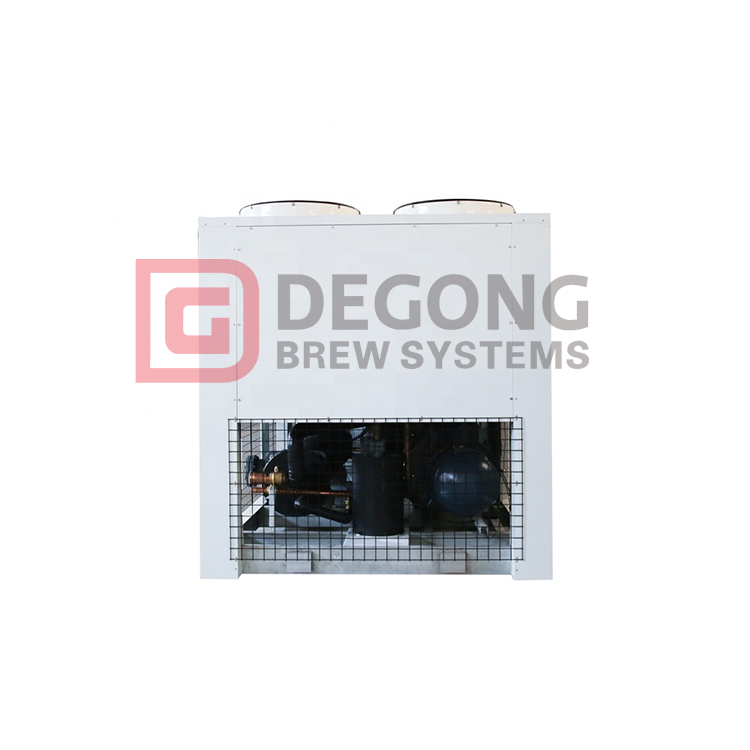

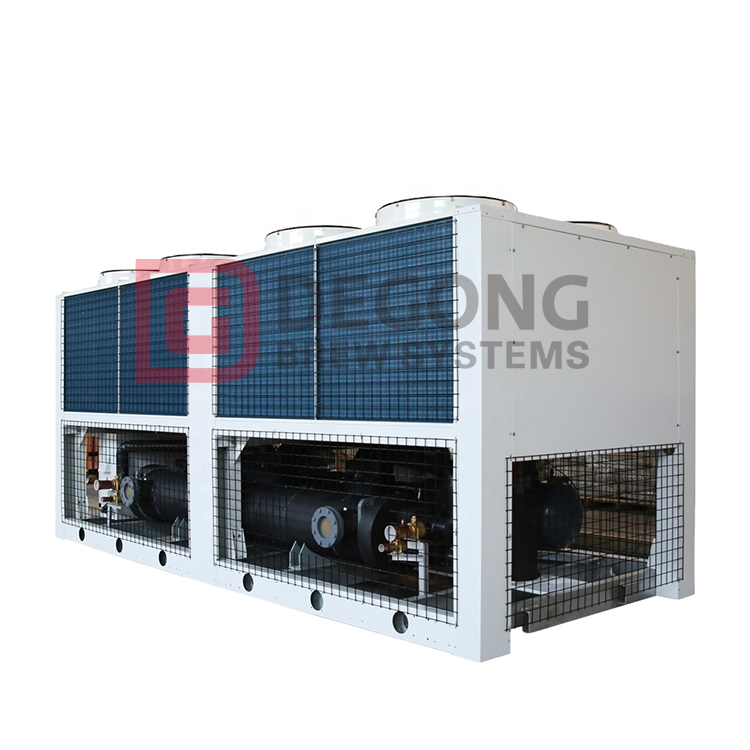

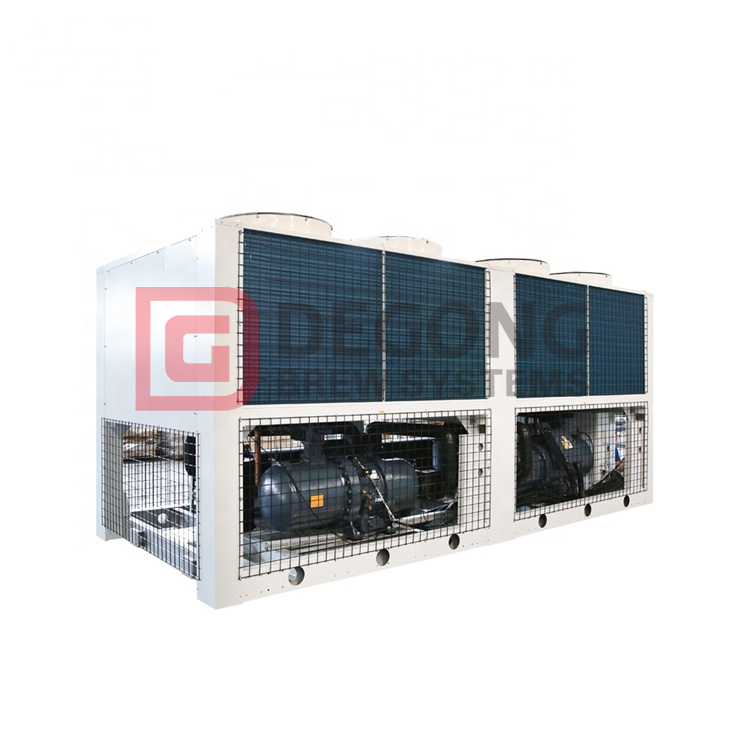

Products Show
