YD star-shaped discharge device

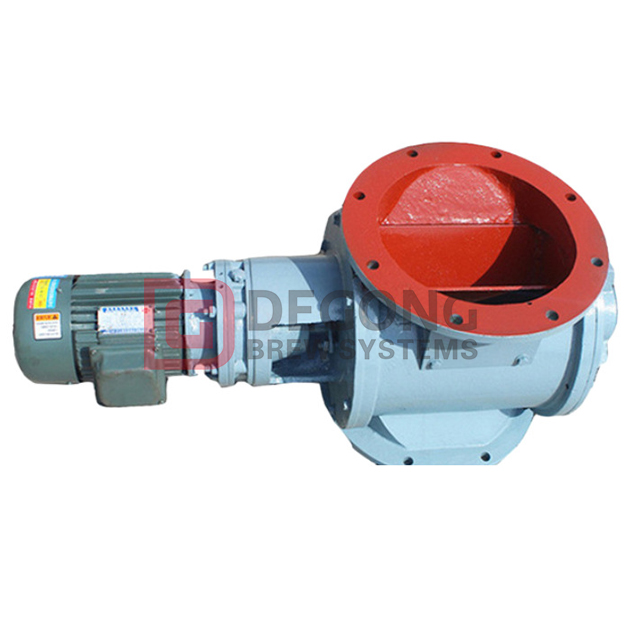

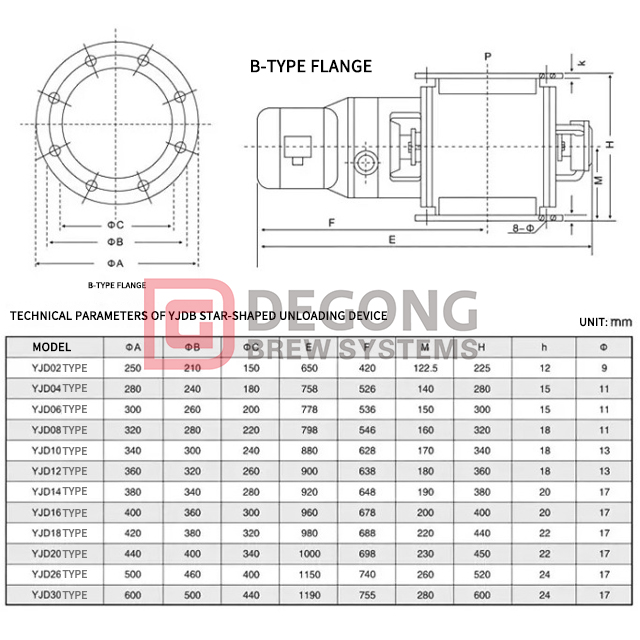

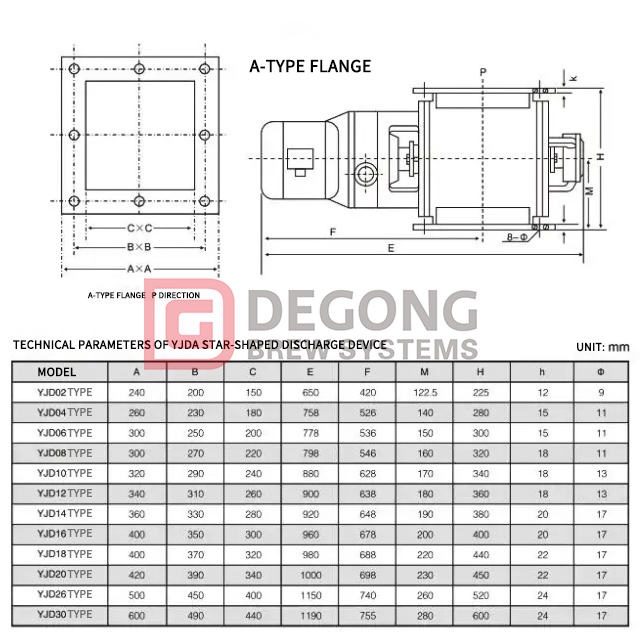

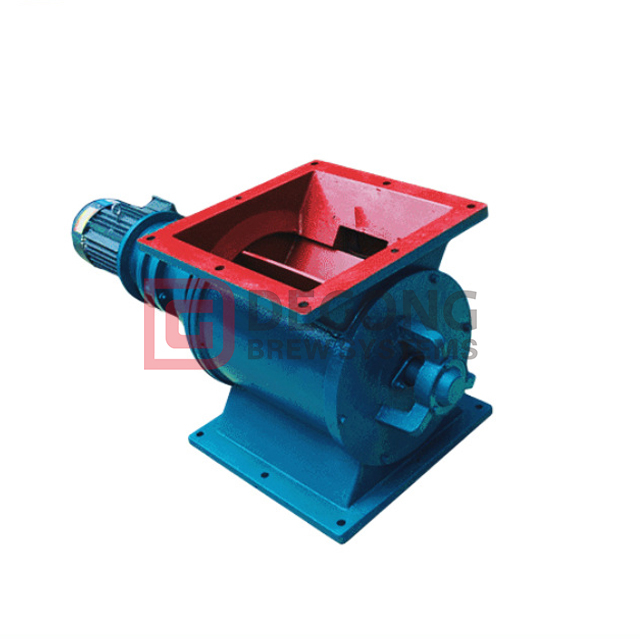

The YD series discharge device is also known as an electric ash discharge valve. It consists of three parts: a motor, a planetary reducer with gear difference (X) or a cycloidal reducer (Z) and a rotary dragon type discharger. There are two series and 60 specifications. The square inlet and outlet flanges are type A and the round ones are type B. This discharge device is the main equipment for dust removal equipment to discharge dust, supply air and feed other equipment. It is suitable for powdery and granular materials. It is widely used in environmental protection, metallurgy, chemical industry, grain, food and other industrial sectors.
Features of this machine:
1. Compact structure, beautiful shape, easy to use. 2. Smooth operation and low noise. 3. Since the bearings and gearboxes are a distance away from the housing, they have a greater effect on high temperature and lubrication. 4. Our factory can also design and manufacture according to user requirements. 5. This product is filled with cycloidal reducer grease before leaving the factory. Please check and refuel regularly.
| Specification | Nominal diameter（DN） （ mm ） | Nominal pressure（PN） （ MPa ） | Valve body material (glass fiber reinforced plastic) | Connection Type |
| YJD-02-A/B | DN150 | 1.5 | cast iron | Flange |
| YJD-04-A/B | DN180 | 1.5 | cast iron | Flange |
| YJD-06-A/B | DN200 | 1.5 | cast iron | Flange |
| YJD-08-A/B | DN220 | 1.5 | cast iron | Flange |
| YJD-12-A/B | DN260 | 1.5 | cast iron | Flange |
| YJD-14-A/B | DN280 | 1.5 | cast iron | Flange |
| YJD-16-A/B | DN300 | 1.5 | cast iron | Flange |
| YJD-18-A/B | DN320 | 1.5 | cast iron | Flange |
| YJD-20-A/B | DN340 | 1.5 | cast iron | Flange |
| YJD-26-A/B | DN400 | 1.5 | cast iron | Flange |
| YJD-30-A/B | DN440 | 1.5 | cast iron | Flange |
| YJD-10-A/B | DN240 | 1.5 | cast iron | Flange |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
