Aseptic Transport tanks 500L stainless steel Transport IBC tanks containers optional

Steam sterilizable, vacuum resistant aseptic containers provide the highest level of protection for aseptic applications. Aseptic stainless steel IBCs guarantee maximum hygiene for sensitive applications in the food and cosmetics and pharmaceutical industries. These containers are easy to clean and have an outstandingly long service life.
Material:
volume:
Availability:
Quantity:
  • DEGONG 500L
  • DEGONG
Product Description

Germ Free Containers

Steam sterilizable, vacuum resistant aseptic containers provide the highest level of protection for aseptic applications. Aseptic stainless steel IBCs guarantee maximum hygiene for sensitive applications in the food and cosmetics and pharmaceutical industries. These containers are easy to clean and have an outstandingly long service life.


aseptic tank003

Aseptic tank 500L


Tank Material

Stainless steel 1.4301 / 1.4404 / 1.4571


Wall Thickness

1.5 to 2.5 mm for top section, shell and bottom section


Manhole

DN 400 in the top section with bolted or bayonet ring cover

Transport Frame

Profile frame or tube frame


cover

Equipment Manhole cover


Equipment

Manhole cover with pressure relief valve ('TUV approved) and DN 6.5 or DN 12 CO2 valve.

DN 50 threaded connectors with cap nuts (optional)



Approval

CE Mark in accordance with Pressure Equipment Directive 97/23 according to AD 2000 S5, up to 2 bar operating pressure

Complies with Regulation (EC) No. 1935/2004

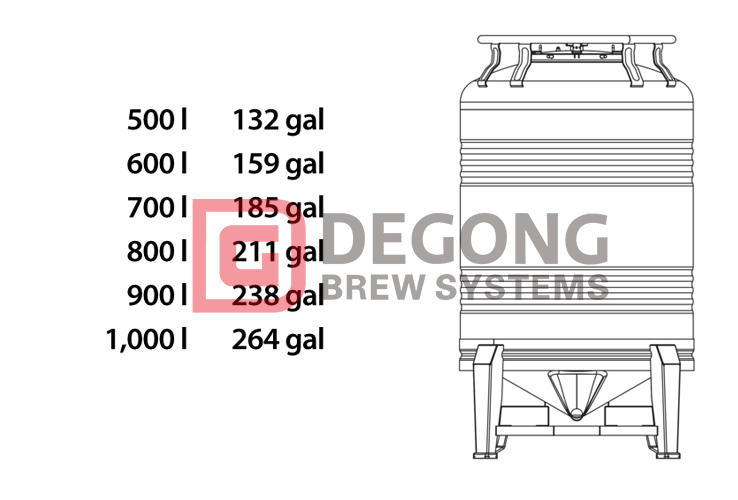

aseptic tank volumes

Germ Free Containers

Handling

Can be transported and stacked using all usual forklift vehicles

Steam sterilizable, vacuum resistant

Easy to clean



Optional

With heating or cooling shell

Stirring device


DIMENSIONS

Diameter 31.5 inches (800 millimeters)
Angled slopes 30°
