| 700L customied beer Brewing Equipment system |
The turnkey 700l micro brewery generally included the 700L brewhouse, 700L or 1500L Jacketed fermentation tanks, the glycol cooling system for cooling wort and fermenters, the controlling unit for temperature setting, and the CIP cleaning system. With 12 years manufacturing experience in beer brewery, we can do almostly of your requirements accoridngly. And our engineers are available to do installation for you on site
| Output/Brew | 700L |
| Brew/Week | 2-6 batches |
| Output/Week | 1400~4200L |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Electric/Steam/Direct Fire |
| Area Request | >60M2 |
| Brewmaster | 1 |
| Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter; | |
Grain Milling Unit
Our standard grain crushing machine based on Speed differencial double roller.
The Crushing Particle Size is adjustable.
The Flexible auger, Grist hopper and Hydrator for optional.
Grain miller
Brewhouse Unit
The Picture as below is turnkey 700l micro brewery beer equipjment customized for other customers. The brewhouse based on combined three vessel structure: Mash/Lauter+ Brew kettle /whirlpool tun. Just mean one combined vessel of Mash/lauter tun; And one combined Brew kettle /whirlpool tun.
The heating source have electric,gas burner and steam(boiler)
Brewhouse with a hot liquor tank can deliver brewing efficiency.
Cooling dimple jacket fermeters
Today cylindro-conical vessels, or CCVs are popular style. The cone aperture is typically around 60°, an angle that will allow the yeast to flow towards the cone's apex, but is not so steep as to take up too much vertical space. CCVs can handle both fermenting and conditioning in the same tank. At the end of fermentation, the yeast and other solids which have fallen to the cone's apex can be simply flushed out of a port at apex.
Jacket fermentation tanks
Features of cooling jacket fermenters:
Interior Shell:SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
Insulation Polyurethane; TH=80mm
Glycol Jacket:Dimpled plate on cone and side
Head and Bottom:Dished head and 60 degree cone bottom
Sampling valve:Full sanitary perlick style sampling valve
Mechanical relief valve 2 bar on CIP arm
Pressure gauge:Shockproof pressure gauge on CIP arm
Beer outlet:Rotating racking arm and port on cone with butterfly valve
Hopping port:Dry hopping port with solid end cap
Leg:4pcs completely SUS304 heavy duty legs with leveling pad and legs support

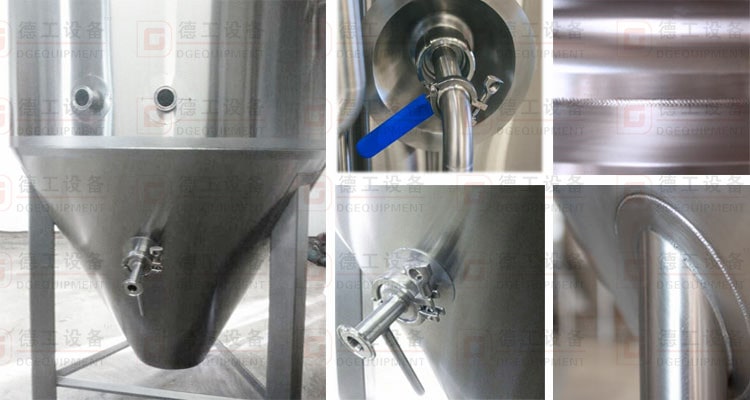

60 degree cone fermenters detail
legs and port welding
Just contact Alice and she will make certain you get exactly what you want and need. Our passion is building and providing the best quality brewing equipment to our customers world-wide.
| Contact Alice today |
In our excellent collection of brewing equipment, we offer our clients premium quality Microbrewery Equipment. This brewery equipment is well-manufactured by the use of premium quality components, basic material and sophisticated technology.
