5BBL Three-Vessel Brewhouse System Craft Beer Brewing Equipment Small Size Brewery Machinery

The 5BBL beer making equipment is designed to brew craft beer on a small scale for commercial use in nanobreweries, microbreweries, breweries, bars and restaurants. Even beginners can easily brew great full-bodied beers like Ale, Lager, Stout, IPA and more.
Availability:
Quantity:
  • DG-5BBL
  • DEGONG
Product Description

5BBL Brewhouse System


Model
5BBL Three-Vessel Brewhouse System
Useful capacity
5BBL
Thickness
Inner (SUS304)thickness: 3.0mm;
External (SUS304) thickness: 2.0mm
Material
Stainless steel SUS304
Cooling way
Dimple jacket plate
Cleaning way
CIP cleaning,with rotary spray cleaning ball
Insulation
Polyurethane-thickness:100mm
Accessories
Sample valve,Pressure gauge,Breath valve,Temperature gauge,
Top manhole,Washing ball,Butterfly valves,CIP Arm,Hop port,Discharge arm and so on.

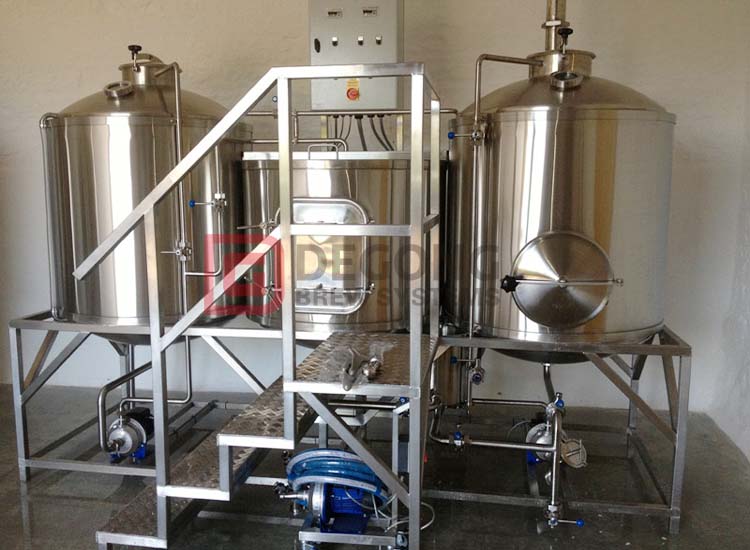

190


More Options

2 Vessel Brewhouse

  • Mash/Lauter Tun + Boil Kettle/Whirlpool Tun

  • Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun

  • Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank


3 Vessel Brewhouses

  • Mash/Lauter Tun + Boil Kettle + Whirlpool Tun

  • Mash(kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun


4 Vessel Brewhouses

  • Mash(kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool


5 Vessel Brewhouses

  • Mash Tun + Lauter Tun + Boil Kettle + Whirlpool + Holding Kettle

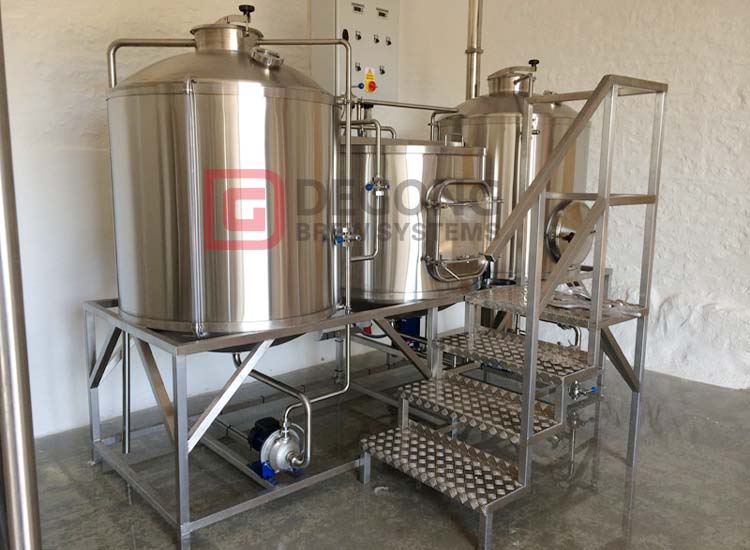

188


Name Accessories Configuration
Grain Milling Unit Rolling Miller Double roller
Speed differential
Brewhouse unit Mash/Lauter tun Grain rake with VFD
Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring
Multihole wort collect ring(optional)
Anti-rinser(optional)
Kettle/Whirlpool Tun Steam Jacket on bottom and side/direct gas fired heating/electric heating
Steam vent with condensate ring for kettle stack
Hot water tank Steam Jacket heating/direct gas fired heating/electric heating
Heat exchanger SUS304 plate
Fermentation unit Fermenter Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm
Mechanical relief valve
Shockproof pressure gauge
Rotating racking arm
Dry hopping port
Carbonation stone
Sight level
Bright beer tank Bright beer tank Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm
Mechanical relief valve
Shockproof pressure gauge
Rotating racking arm
Dry hopping port
Carbonation stone
Sight level
Glycol Chilling Unit Glycol Water Tank Insulated conical top and sloped bottom
Cold Water Tank Dimple plate on side wall
Chiller
Control unit Brewing and fermetation process Controlling Manual button control panel or PLC control with touch screen for special
CIP unit Caustic Tank electric heating element inside
Sterilization Tank
Transfer&Control

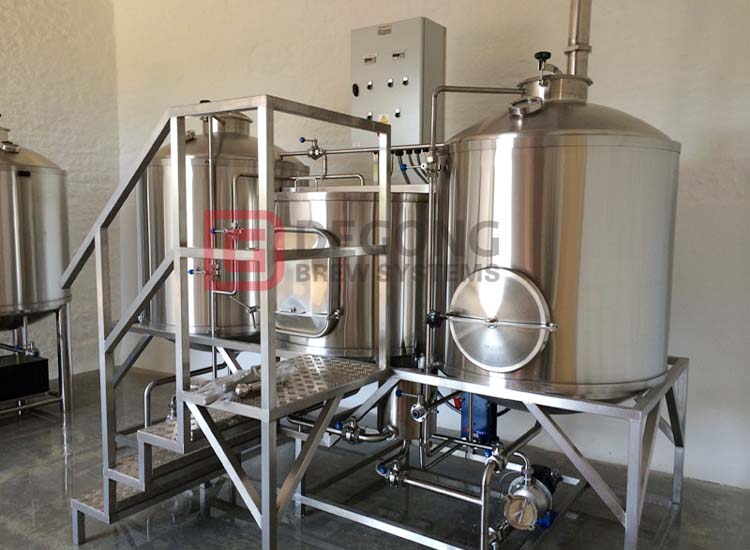

189
