5BBL Copper Miniature Brewery Craft Beer Brewing Plant Equipment for Sale

The 5bbl brewing system can include a two-tank brewing room, a three-tank brewing room, and a four-tank brewing room. More capacity, more ships. Just to reduce the brewing time and improve work efficiency.
Availability:
Quantity:
  • DEGONG-5BBL
  • DEGONG
Product Description

5BBL Craft beer equipment


Introduction

The 5BBL brewing system can include a two-tank brewing room, a three-tank brewing room, and a four-tank brewing room.

The two-container brewery includes a mash/filter barrel and a kettle/vortex tank.

The three containers include mash tank, filter bucket and kettle/vortex tank.

The four vessels include mash vat, filter barrel, boiling pot and swirl vat.

More capacity, more ships. Just to reduce the brewing time and improve work efficiency.

96

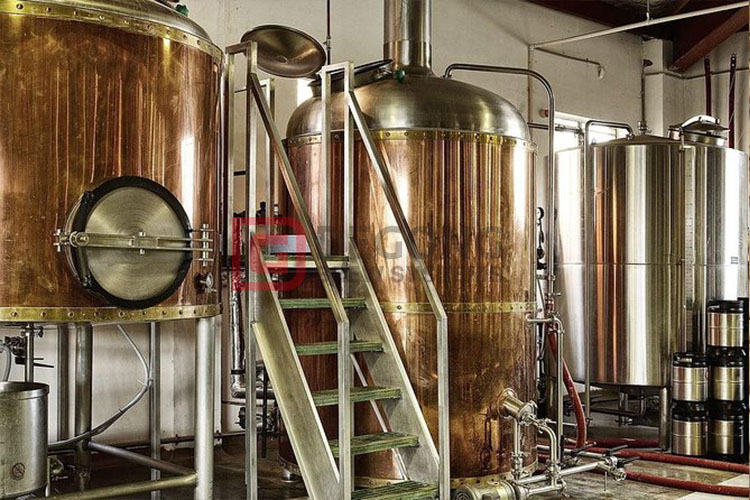

5BBL Brewing System Mash System
  • Total volume: 6.5BBL, effective volume: 5BBL,

  • Inner surface: SUS304, thickness: 3mm

  • Outer surface: matt polished red copper, thickness: 1.5mm;

  • Insulation material: rock wall, thickness: 80MM,

  • Polishing factor: 0.4µm

  • Material: stainless steel 304

  • Heating method: steam heating jacket, heating area: 1.5M2, side and bottom.

97

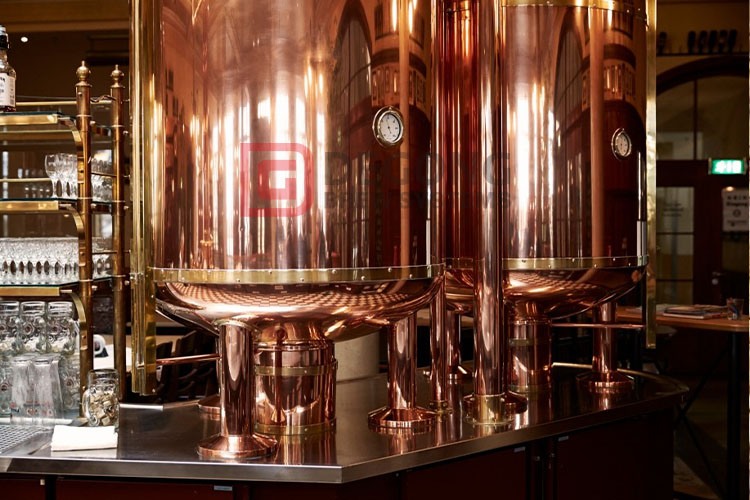

5BBL brewing system Lauter tank & Whirlpool
  • Mechanical mixing & rake mixing at the top.

  • Power: 0.75kw, speed 60RPM. High power and low speed ensure the completion of the differential layer.

  • In and out: pump out, high-power low-speed saccharification pump.

  • Filtration method: machine screen filter plate (gap: 0.75mm), anti-blocking ladder structure.

  • Processing technology: The filter tank is located in the upper part of the pot body, and the rotating sedimentation tank forms natural filtration in the lower part of the pot body, which effectively solves the problems of the original pump filter and water leakage. Lumpiness, and the turbidity of the wort.

  • Stirring method: Stirring at the top of the reducer.

  • Voltage: 380V50HZ

94

5BBL brewing system configuration list
Item 5BBL Copper Miniature Brewery Craft Beer Brewing Plant Equipment for Sale
Specification Daily output 5BBL beer per day, 12 days fermentation period

standard configuration

Packaging Inside stretch film and PE paper
Size One 20 feet container
Power consumption per day 60kwh
Total water content 1.5t per day
Raw material consumption Malt: 300 KG, Hops: 018KG, Yeast: 0.6 KG.
Saccharification appearance classic style Stainless steel shape design
Floor area 40square meters
Power of electricity heater 25KW
Cooling System The heat exchanger refrigeration unit
Electricity control system quality assurance 18 months

86


The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. A wide range of models can meet the various requirements of each market and ensure that you can always find a solution that suits you.

30


Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
