50HL/Batch Brewhouse Four Vessels Mashing System Beer Brewing Equipment Brewery

The brewhouse is used to get quality wort by mashing, lautering, boiling and whirlpooling etc. In the independent commercial or industrial beer plant, the brewhouse is usually customized to four vessel for getting a super output, 4-5 batches per day. Accordingly, the brewmasters would work in shifts to keep the brewhouse running at day and night. In order to save labor efficiently, the control system of brewhouse equipment usually be much more automatic, such as the pneumatic valve, PLC touch screen etc. It is in compliance with modern brewery standards and specifications.
Availability:
Quantity:
  • DG-50HL
  • DEGONG
Product Description

50HL/Batch Brewhouse


Structure 50HL mash tun+50HL lauter tun+50HL whirlpool tun+50HL kettle tun+100HL hot liquor tank
Tank Capacity 50 HL (+25% Headspace minimum)
Tank Size Φ2400x3800mm
Material Stainless steel 304/316
Batches/Day 4-5 batches per day
Heating Way Steam heating
Electric Power 3phase/380(220,415,440...)v/50(60)Hz
Note Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;


575

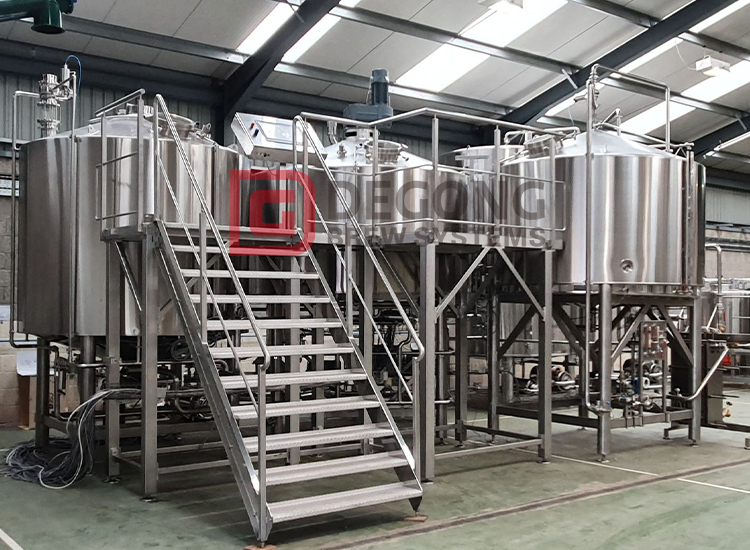

DEGONG 50HL 4 VESSEL BREWOUSE SYSTEM


Work Platforms and Ladders
  • Platform with stairs and railings

  • Height adjustable feet

  • Process piping

  • Pumps for all transfers

  • Material Stainless steel 304/316


Electrical control panel with PLC and touch screen
  • Temperature control, pump speed control, motor reducer speed and direction control, safety switch, sound and light alarm

  • Touch screen for automatic or manual control

  • PLC requires wired internet connection for maintenance and support

  • Fully automatic

  • Flow meter records and displays volume on touch screen

  • Material Stainless steel 304/316


535


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
