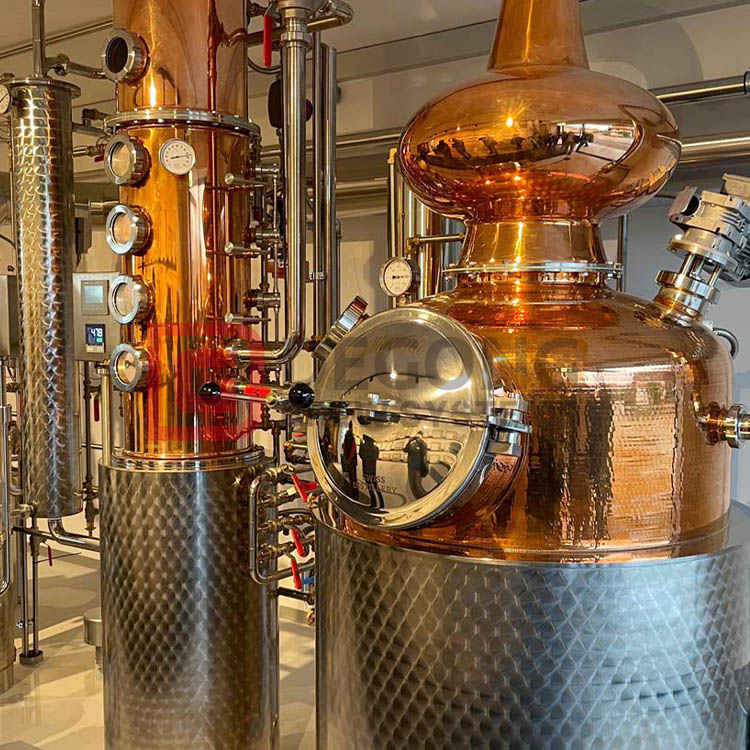

500L Vodka Still Copper Column Distiller Moonshine Bourbon Distillery Equipment for Sale

The distillation unit (pot + tower distillation equipment) is composed of distillation pot, spice blue, distillation tower, product condenser, pipeline and control system; Each distillation unit includes a distillation pot, gooseneck, Lynn arm and condenser.
Availability:
Quantity:
  • DG-500L
  • DEGONG
Product Description

500L Vodka Still


Configuration
  • One cavity boiler in stainless steel

  • Copper or stainless steel insulation for cavity boiler

  • Stainless steel manway

  • Copper stack rectification column

  • Four copper plates

  • Two Sight glasses located on side of column; one for light and one for viewing

  • Side discharge outlet with valve DN 100, manual operated

  • Explosion proof agitator, (motor and motor starter not included)

  • Manometer and safety gauges for steam jacket

  • Reflux complete with flow meter

  • Copper tube condenser, dephlegmator

  • Stainless steel cooling coil


441


Product Name
Copper vodka moonshine still
Capacity(L)
500L
Weight(KGS)
100Kgs
Heating Method
electric/steam heating
Power(KW)
11 - 165KW
Voltage(V)
110V/220V/240V/380V
Material
SS304/SS316/red copper
Application
produce Vodka,Whisky, Brandy,moonshine,ect.


40


Capacity

Cycle Time

Energy Consumption

Steam Consumption

Liters

Gallons

Hours

Hp/h

Kg/s

Lbs/h

5000

1315

9

4.0

625

1377.9

4000

1052

8

3.0

500

1102.3

3000

789

7

2.0

375

826.7

2500

658

6.5

2.0

313

690.0

2000

526

6

1.5

250

551.1

1500

395

5.5

1.5

180

396.8

1000

263

4.5

1.0

120

264.5

500

131

3.5

1.0

60

132.2

300

78

3

0.7

40

88.1

200

52

2.5

0.7

30

66.1


36
