DG-500L
DEGONG
500L Customizable Beer Brewhouse
| System list | Equipment | 100L | 200L | 300L | 500L | 1000L |
| Mashing system | Mash tun | 100L | 200L | 300L | 500L | 1000L |
| Lauter tun | 100L | 200L | 300L | 500L | 1000L | |
| Wort pump | 1m3/h | 3m3/h | 3m3/h | 3m3/h | 3m3/h | |
| Heat exchanger | 2m3 | 3m3 | 4m3 | 6m3 | 6m3 | |
| Wort Oxygenator (optional) | accessory | accessory | accessory | accessory | accessory | |
| Fermenting system | Fermentation tank | 100L / 6-8pcs | 200L / 6-8pcs | 300L / 6-8pcs | 500L / 6-8pcs | 1000L / 6-8pcs |
| Yeast tank | 2L | 2L | 3L | 5L | 10L | |
| Bright beer tank (optional) | 100L | 200L | 300L | 500L | 1000L | |
| Cooling system | Ice water tank | 300L | 500L | 800L | 1500L | 2000-3000L |
| Cooling machine | 3HP | 4HP | 5HP | 5HP | 5HP/Group | |
| Ice water pump | 1.7m3/h | 1.7m3/h | 1.7m3/h | 1.7m3/h | 1.7m3/h | |
| CIP system | Washing tank | 50L / 2pcs | 50L / 2pcs | 50L / 2pcs | 50L / 2pcs | 100L / 2pcs |
| Pump | 3m3/h | 3m3/h | 3m3/h | 3m3/h | 3m3/h | |
| Control system | PCL style control cabinet (200*700*400) | |||||
| Comment: All components & parameters can be customized according your requests. | ||||||
| Product Details |
Mirror Polishing
Inside Polishing: Overall polishing to 0.4μm without dead corner .
Outside Polishing: Mirror polishing, smooth enough and passivating treatment.
Purpose: Make sure the inner tank smooth enough to avoid form any dead cornor which caused bad taste in the wort beer. Outer tanks looks more like an artwork.
100% WIG Welding
All welding is TIG welding.
All welding is Full welding.
All welding is double side welding.
Purpose: The use of argon on the protection of metal welding material, So that welding can not be in contact with oxygen in the air, thus preventing the oxidation of welding consumables.Which Makes tanks durable and strong.
False bottom / Sieve plate
Equipped in Lauter tank, Laser milling
Filter gap: 0.8mm
This filter plate is made on a complete stainless by CNC lathe, it is strong, filter fast and leak no any grist. Which has a good effect in Separating wort and impurities.
| Features |
Automatic/semi-automatic operating system, requires one or two brewery operations
With our equipment, you can make different kinds of beer, such as ale, lager, IPA, dark beer, etc. We provide brewing recipes
Our capacity per batch varies from 50 L to 5000 L, and our beer equipment has passed Pessure CE, ISO, ROHS, TUV certificates
Got great feedback from our customers
Installation/Operation/Service/Maintenance Manual: Available in English.

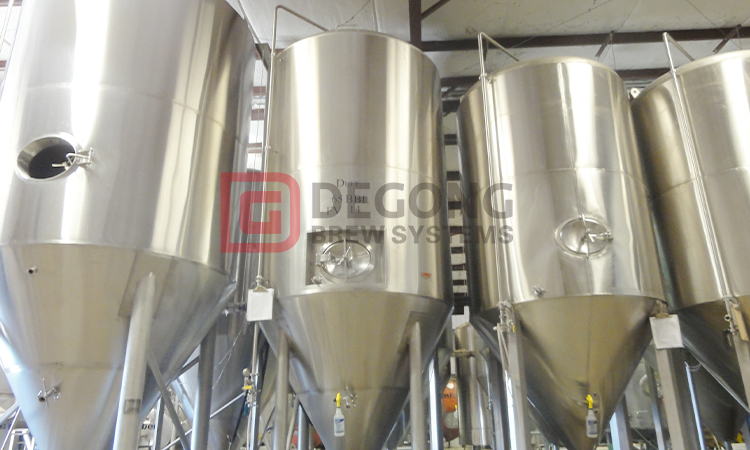

DEGONG high quality fermentation tanks
Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
