Material: SUS 304 Stainless steel.
Volume: 500L effective, 625L total volume.
25% vacant space in the top not counting the curved top.
Curved top, 60-degree conical bottom.
Double layer with cooling jacket.
Working pressure: 2 bar. Tested up to 3 bar.
Thickness of steel, inner tank: 3 mm.
Thickness of steel, outer tank: 2 mm.
Insulation of polyurethane, thickness: 80mm, sides and bottom are insulated.
2 cooling zones controlled separately: cylinder and a conical base.
External surface: polished.
Every internal welding surface is polished and cleaned with acid. The surface is polished.
Roughness: 0.4 um
4 stainless steel legs with adjustable feet.
In the top: CIP arm, rotating sprayball, combined overpressure- and low pressure valve (PVRV), entrance for dry hopping.
On the side: Glycol Inlet and outlet, thermo sensor and sampling port.
At the bottom: drain valve, beer outlet, turnable racking arm, carbon stone unit and thermo sensor.
Option: carbonation device (CO2-stone).
Mechanical pressure valve mounted on CIP arm.
Prepared for half batches.
Input and output for glycol cooling.
Ball valve and solenoid valve to control glycol.
Piping is assembled before shipment.

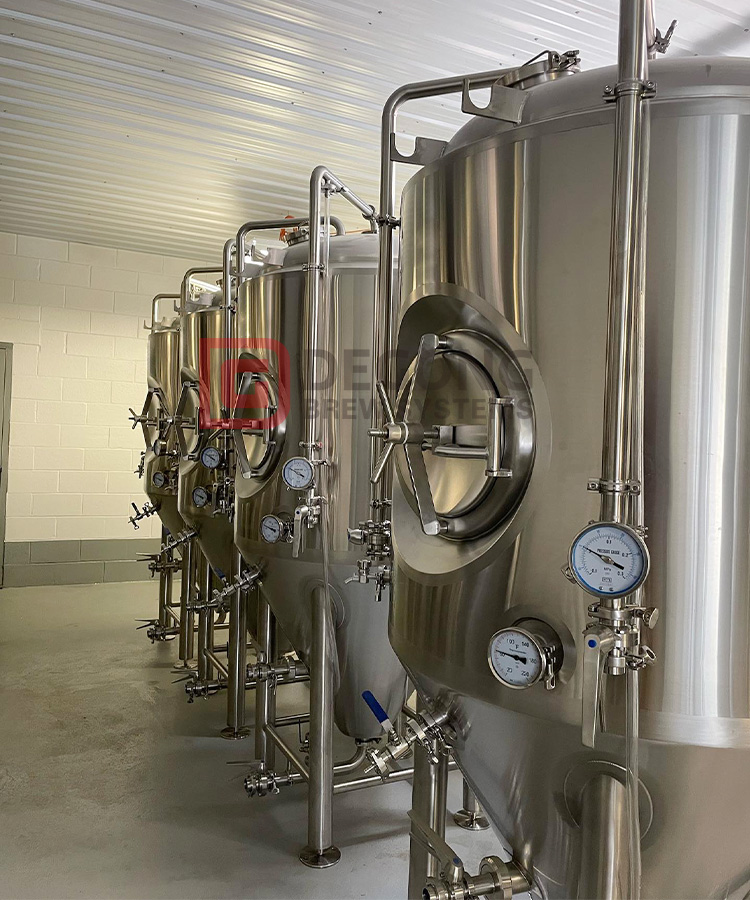

DEGONG 500L FERMENTER
|Item||Effective volume||Total volume||Volume in US Gallon||Diameter||Height|
|DG-100||100L||130L||26 US Gallon||640mm||1300mm |
|DG-200||200L||260L||53 US Gallon||740mm||1750mm|
|DG-300||300L||370L||79 US Gallon||840mm||1850mm|
|DG-400||400L||480L||106 US Gallon||960mm||2000mm|
|DG-500||500L||630L||132 US Gallon||960mm||2200mm|
|DG-600||600L||730L||158 US Gallon||1010mm||2250mm|
|DG-700||700L||930L||185 US Gallon||1100mm||2350mm|
|DG-800||800L||1000L||212 US Gallon||1160mm||2450mm|
|DG-1000||1000L||1300L||264 US Gallon||1300mm||2550mm|
|DG-1500||1500L||1780L||396 US Gallon||1400mm||2900mm|
|DG-2000||2000L||2500L||528 US Gallon||1500mm||3300mm|
|DG-3000||3000L||3850L||792 US Gallon||1700mm||3750mm|
|DG-5000||5000L||6250L||1320 US Gallon||2000mm||4350mm|
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
