500L Horizontal Beer Tank Bright Beer Tank Stackable Food Grade Stainless Steel Tanks

A draft beer tank is a horizontal cylindrical pressure vessel with a usable volume of 500 liters for storing and serving beer. The boat is mounted on two saddles. It is equipped with safety valve and pressure valve.
Availability:
Quantity:
  • DG-500L
  • DEGONG
Product Description

500L Horizontal Beer Tank


Bright Beer tank/Serving tank/Maturation tank/Lagering tanks
Useful capacity/volume 50L~10000L Forhomebrew,pub/restaurant brewery, micro breweyr plant
Type Vertical/horizontal Frame-system for positioning of horizontal tanks at several levels above each other
Interior&Exterior material Stainless steel304/316 Food and sanitary material, easy to clean and maintain
Insulation Polyurethane Thickness corresponding to the size of the tank and the environment
Cooling method Liquid/Air cooled

Double walled tank with glycol

Un-insulated tank used in a temperature controlled room

Cooling jacket Dimple/cooling coil Stainless steel cooling jacket
CIP Spray ball &CIP arm Clamp connection, 360° thorough cleaning
Temperature control PT100/Bimetallic thermometer Insulated with PT100, display & control through digital control cabinet Un-insulated with Bimetallic thermometer
Pressure relief valve Stainless steel 304 Prevent the tank from over-pressuring, allow a vacuum relief
Manway Stainless steel 304 Top manway/ side manway/ Clamp manway/Flange manway
Sampling valve Stainless steel 304 Sampling &testing
Pressure gauge
Display pressure level
Safety valve Optional On top of the tanks, normally for tank above 2000L
Carbonization Optional Special jet for carbonation of beverages from CO2 bottle
Level indicator Optional Cleanable and sanitizable glass/hose level indicator
Ladder Optional Stainless steel ladder for large capacity tanks


158

Horizontal tanks are very space-saving


Features
  • Our Fermentation tanks/tun available from 50L to 10000L and average 25% Head Space.

  • All tanks have a Dish top.

  • Cylinder body & 60/70° Cone Bottom.

  • Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.

  • Dimple Plate jacket for Glycol cooling & high efficient Polyurethane

  • Foam insulated.

  • All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.

  • We can customize fabricate any tank to meet your brewery's space and height restrictions.


57


Advantages
  • Eliminate the cold room and reduce energy costs

  • Fresher beverages at the tap

  • Longer shelf life of product

  • Less labor for beverage safety and handling (compared to kegs)

  • Eliminate tank cleaning with bag inliners —no water needed

  • Decreased consumables (chemicals and CO2)

  • Stackable configurations for space savings

  • Visual advantage in your tasting room

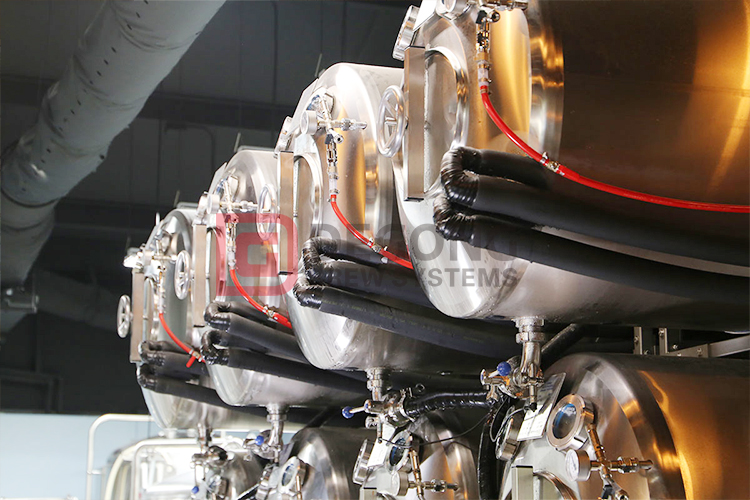

159


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
