500L Fermentation Tank Beer Storage Tank Hot Sake Micro Brewery Fermenters

500L beer fermentation tanks are made in top-grade certified stainless steel materials (2B or precise polish for available surface). We are always attaching high importance to be in line with international standard and fortunately. We also can custom fabricate any tank to meet your brewery’s space and height restrictions.
Availability:
Quantity:
  • DG-500L
  • DEGONG
Product Description

500L Brewery Fermenters


Configuration
  • Function:Wort Fermentation or maturation

  • Tank Capacity: 500L (+25% Headspace minimum)

  • Dimension: Φ1010mmx2100mm

  • Interior Shell: SUS304 full welded; TH=3mm

  • Exterior Shell:SUS304 full welded; TH=2mm

  • 100% TIG welding with pure argon gas shield

  • Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner

  • Insulation: Polyurethane; TH=80mm

  • Glycol Jacket: Dimpled plate on cone and side

  • Stringent tank leakage test by water and pressured gas

  • Stringent Jacket leakage test by water and pressured gas

  • Dished head and 60 degree cone bottom

  • Sanitary top mounted manway

  • CIP arm with 360° coverage CIP spraying ball

  • Full sanitary sampling valve

  • Mechanical relief valve 2 bar on CIP arm

  • Shockproof pressure gauge on CIP arm

  • Rotating racking arm and port on cone with butterfly valve

  • Tri clamp discharge arm with butterfly valve

  • Thermowell for high accuracy temperature sensor

  • 4pcs completely SUS304 heavy duty legs with leveling pad and legs support

  • Complete valves, fittings and all parts

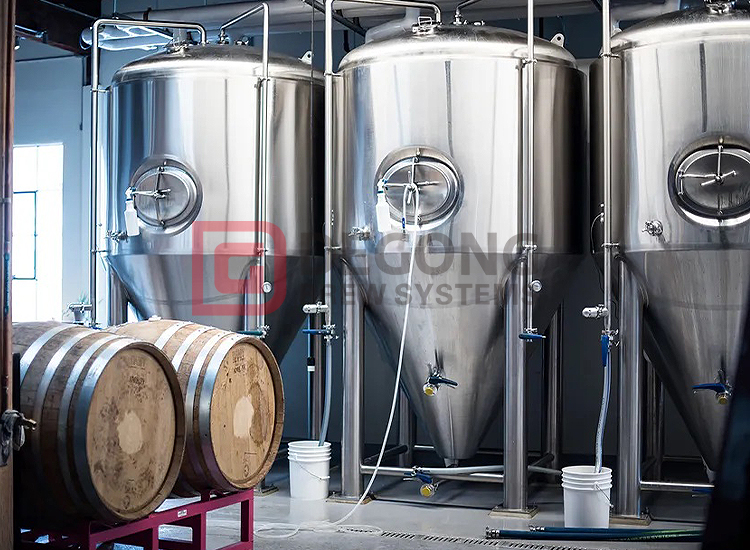

483


Item
Production capacity
Volume in US Gallon
Heating area
Tank diameter
Height
DG-100
100L
26US Gallon
0.5㎡
650mm
1500mm
DG-200
200L
53US Gallon
0.8㎡
850mm
1600mm
DG-300
300L
79US Gallon
1.2㎡
960mm
1700mm
DG-400
400L
106US Gallon
1.5㎡
1060mm
2000mm
DG-500
500L
132US Gallon
1.8㎡
1160mm
2300mm
DG-600
600L
158US Gallon
2.0㎡
1220mm
2350mm
DG-700
700L
185US Gallon
2.4㎡
1260mm
2380mm
DG-800
800L
212US Gallon
2.5㎡
1260mm
2400mm
DG-1000
1000L
264US Gallon
2.6㎡
1360mm
2500mm
DG-1500
1500L
396US Gallon
3.2㎡
1520mm
2900mm
DG-2000
2000L
528US Gallon
3.6㎡
1560mm
2850mm
DG-2500
2500L
660US Gallon
3.8㎡
1650mm
3200mm
DG-3000
3000L
792US Gallon
4.5㎡
1760mm
3800mm
DG-4000
4000L
1057US Gallon
4.9㎡
1900mm
4100mm
DG-5000
5000L
1320US Gallon
7.2㎡
1960mm
4400mm


477

DEGONG 1000L Beer Conical Fermentation Tank


Packaging & Shipping

LCL: plastic film and bubble film, fumigation free wooden case.

FCL: plastic film and bubble film, especially designed iron frame with fixtures for sea shipment.
