500L Electric/steam Heated Copper 45% 55% 95% Vodka Gin Brand Rum Whiskey Distilling Equipment Distillery Machine

Certificate:
column plates:
Material:
Heating method:
Control method:
Quantity:
  • DGET-500L
  • DEGT
  • 8438400000
Product Description


Distillation equipment is the result of continuous innovating and developing based on our experience of brewery equipmentmanufacturing. DEGONG distillation equipment can be used to make fruit wine, whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small and medium size, automatic control, easy operation and beautiful outlook. The equipment is suitable for small and medium sized workshops, hotels etc.

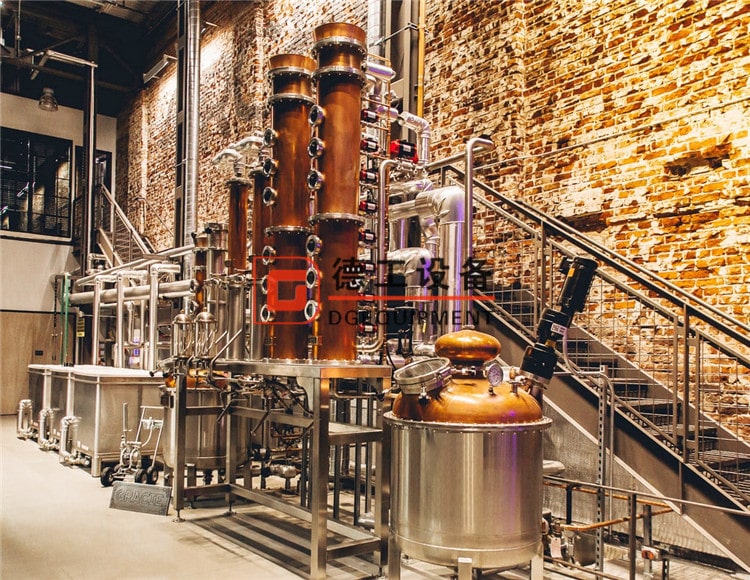

distillation equipment-min



750 蒸馏 -min


01

500L Still Pot

1 piece

1.Total capacity:700L,Working capacity:500L;Mirror polishing on the inner, fish scales on the outer, mirror polishing on the welding seam;

2.Inner:material: SUS 304,thickness: 5(3.5)mm;

3.Outer:material SUS 304 brushed plate,thickness: 2(1.5)mm;

4.The heating method:Steam heating;designed pressure:2Bar,working pressure:1.0 Bar-1.5 Bar;

5.Steam jacket:material SUS 304,thickness: 4(2.8)mm;

6.Insulation thickness:100mm(polyurethane Insulation)

7.The steam inlet and outlet are equipped with tri-clamp connecter. In order to prevent the steam pressure from being too high, So it is equipped with a pressure gauge and a pressure relief valve,pressure:0.2Mpa;

8.Temperature measurement method: a physical thermometer is equipped on the copper dished head.

9.Cleaning method:a 360 degree no dead corner rotating cleaning ball,material is 304 stainless steel;with check valve;

10.Agitator motor:1.1KW 46r/min (380V/50HZ/3PH) EX Explosion-proof motor;

11.Supporting:4 stainless steel supporting feet

02

Copper dished head

1 piece

1.Material is red copper,thickness:5(3)mm; Mirror polishing on the inner & outer surface;

2.Connection flange material :stainless steel Ф600 customized flange;

3.Cleaning method:a 360 degree no dead corner rotating cleaning ball,material is 304 stainless steel;with check valve;

4.Temperature measurement method: a physical thermometer

03

Helmet

1 piece

1.Material is red copper,thickness:3(2)mm,Mirror polishing on the inner & outer surface;

2.Connection flange material :stainless steel Ф600 customized flange;

3.Cleaning method:a 360 degree no dead corner rotating cleaning ball,material is 304 stainless steel;with check valve;

4.Temperature measurement method: a physical thermometer

04

Still Column

1 piece

1.Material:red copper T2 , thickness:3(2)mm;Outer surface:mirror polish, inner surface:brushed polish;

2.Single distillation column

3.20 bubble trays

4.21 sight glasses

5.Drain wrench on each plate,cleaning CIP;

6.Connection flange material :stainless steel Ф350 customized flange;

7.DN100 flexible joint sight glass. It is convenient to observe the steam during distillation

8.Cleaning method:fixed cleaning ball each plate,material:SUS 304;with check valve

05

Dephlegmator

1 piece

1.Material:SUS 304,Shell:3mm

2.Inner 304 Vertical tube

06

Gin basket

1 piece

1.Connection flange material :stainless steel Ф300 customized flange;

2.The cylinder material is high silica glass;top glass manhole, the internal stainless steel filter basket;

07

Condenser

1 piece

1.Material is stainless steel,thickness:3(2)mm,Fish scales on the outer surface;

2.Connection flange material :stainless steel Ф300 customized flange;

3.Temperature measurement method: a physical thermometer

4.Cooling water inlet and outlet is 1'' tri-clamp.The cooling water should enter from below and go out from above

08

Supporting feet

3piece

Material:SUS304,thickness:3(2)mm;

09

Cleaning pump & pipeline

1piece

1.Stainless steel sanitary pump:1.1KW (380V/50HZ/3PH) EX Explosion-proof pump 2. 5T/H,20m lifting,inlet and outlet with tri-clamp

3.Using stainless steel 304 pipe, single-sided welding and double-sided forming to ensure the beauty of the pipeline

10

Control box

1piece

1.Stainless steel control box, switch to control agitator and cleaning pumps, with emergency stop

2.The interface is marked in English. There is a spare temperature control mouth on the equipment. So you can design a new control box to meet your needs.

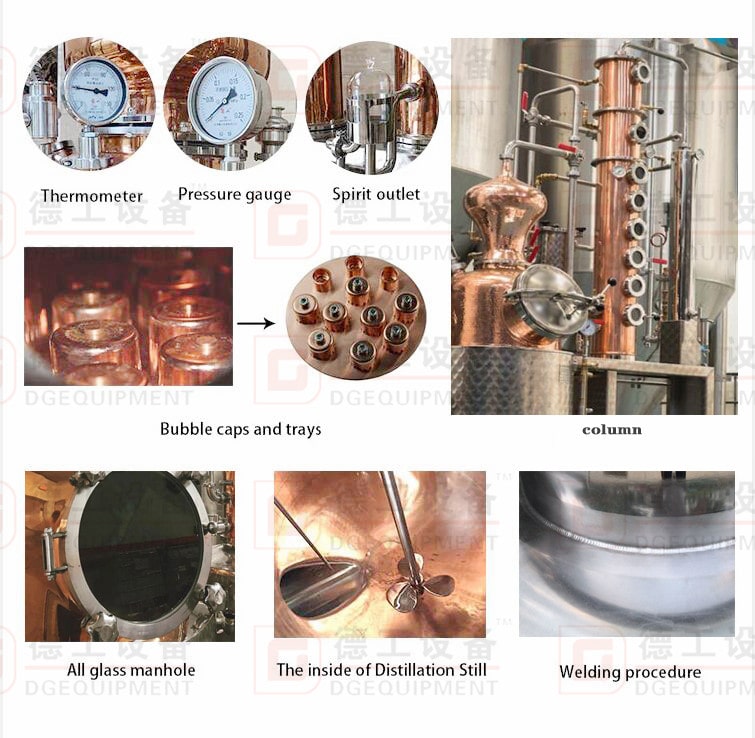

details-min

750DIS 细节-min

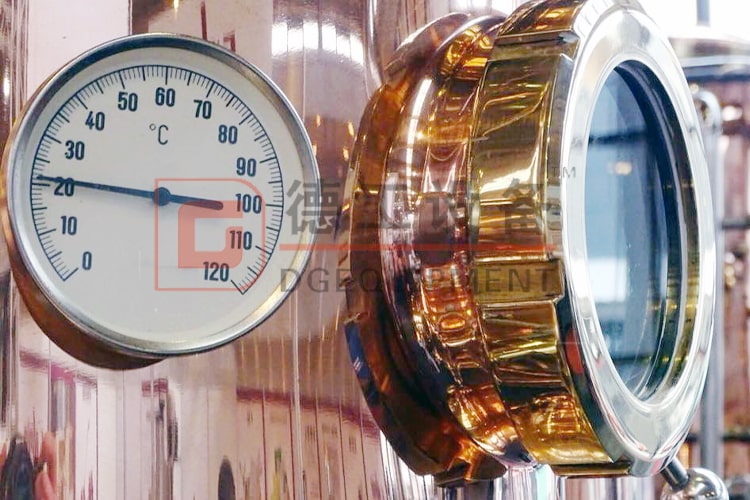

750 DIS 细节2-min
