500L customized turnkey beer brewing equipment with two stage plate heat exchanger for sale

The Hotel Micro Brewing Equipment range from 200L to 1000L.And Hotel Micro Brewing Equipment can be placed in: restaurants, pub, bars, hotels, tourist and shopping centers. Interpreter may be faced with polished brass, copper besides stainless steel. Also, the Hotel Micro Brewing Equipment can be placed behind a glass partition that allows visitors to observe the process of making beer. This is an excellent design solution interior and a powerful marketing tool.

manhole:
brewhouse combination:
Heating method:
Quantity:
  • DGET-500L
  • DEGONG
  • 8438400000
Product Description
500L Hotel Micro Brewing Equipment

500L Hotel Micro Brewing Equipment is between home brew and microbrewery equipment according to the capacity, it is a set of technological equipment for the production of heavy feeling craft beer. Because of its affordable cost and limited space requirement, It is really a good springboard for brewers to realize their brewing dreams further by sell beer to market. By Hotel Micro Brewing Equipment, Brew master make their beer attractive to consumers by unique brewing process and distinctive beer favor.


The Hotel Micro Brewing Equipment range from 200L to 1000L.And Hotel Micro Brewing Equipment can be placed in: restaurants, pub, bars, hotels, tourist and shopping centers. Interpreter may be faced with polished brass, copper besides stainless steel. Also, the Hotel Micro Brewing Equipment can be placed behind a glass partition that allows visitors to observe the process of making beer. This is an excellent design solution interior and a powerful marketing tool.


Beside the quality Hotel Micro Brewing Equipment, We can provide you: Free consultant, Free design, Free installation, Training and commission. We will be your sincere partner on NanoBrewery System.

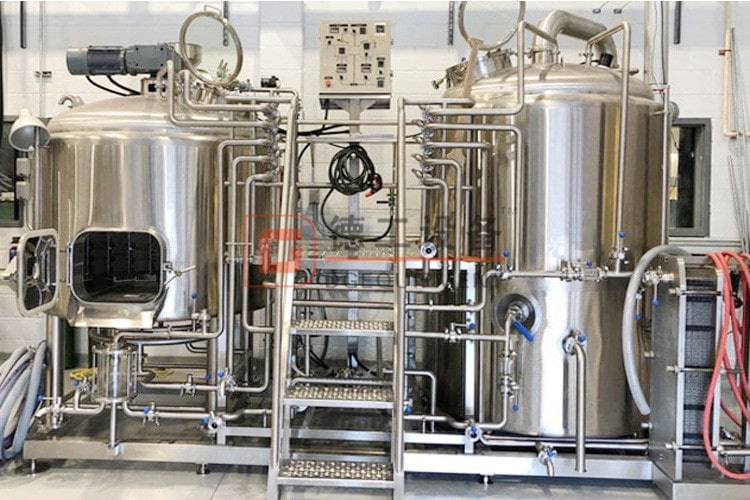

2 tanks-min

500L Craft beer brewing equipment



Mash tun Lauter tun

Function: Grain mashing

Steam jacket heating; tank body and bottom with dimple plate jacket;

Insulation: Polyurethane 100mm

Conical top and conical bottom, top mounted light

Top mounted Manhole with glass door,

Liquor level side tube

Two CIP 360°rotary spray device

Material: SUS304, Brushed outer shell. Interior Finish: Completely acid washing and passivation

Plate Surface protection, ribbon polished on welds.

100%TIG welding with pure argon gas shield

4pcs completely SUS304 heavy duty legs with leveling pad

With all matched valves and accessories.

Function: Wort lautering and sparging

Insulation: Polyurethane

Grain rake with VFD controled motor and turbine reducer at bottom

Spent grain dozer automatic lifted

Bottom spent grain port with valve

Bottom with wort collection tube.

Conical top and flat bottom, top mounted light

Top mounted Manhole with glass door

Liquor level side tube

Two CIP 360°rotary spray device

Back pressure flushing device under false bottom with nozzels

Material: SUS304, Brushed outer shell.

Interior Finish: Completely acid washing and passivation. 100% TIG welding with pure argon gas shield


raker&stir welading

Raker & agitator & the welding process


Boil kettle/ Whirlpool tun

Function: Wort boiling/ whirlpool

Insulation: Polyurethane 100mm

Side tangential whirlpool inlet

Two sections wort outlet on side of the bottom bone and side wall

Conical top and conical bottom, top mounted light

Top mounted manhole with glass door,

Two CIP 360°rotary spray device

Temperature sensor PT100

Liquor level side tube

Material: SUS304, Brushed outer shell.

Interior Finish: Completely acid washing and passivation, inside polishing to 0.4μm without dead corner.

Plate Surface protection, ribbon polished on welds

100%TIG welding with pure argon gas shield

4pcs completely SUS304 heavy duty legs with leveling pad

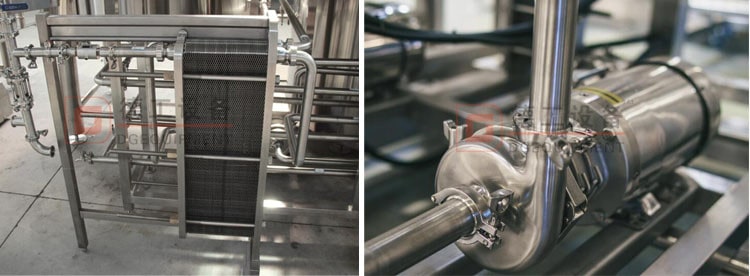

phe-and-wort-pump-min

Two stage plate heat exchanger & wort pumps


Heat exchanger:

1.Effective cooling area: 5-20m2

2.Two stage for city water and ice water

3.Material:SUS304,plate Heat exchanger

4.Ice water inlet/outlet,water inlet,water outlet:clamp connecting



Hot water/Wort pump

Flux:3m3/h,lift pump:18m

Type :Sanitary Centrifugal pump,frequency control

Temperature resistance:120ºC inlet φ38,outlet φ32,clamp connection

Material:Sanitary SUS304

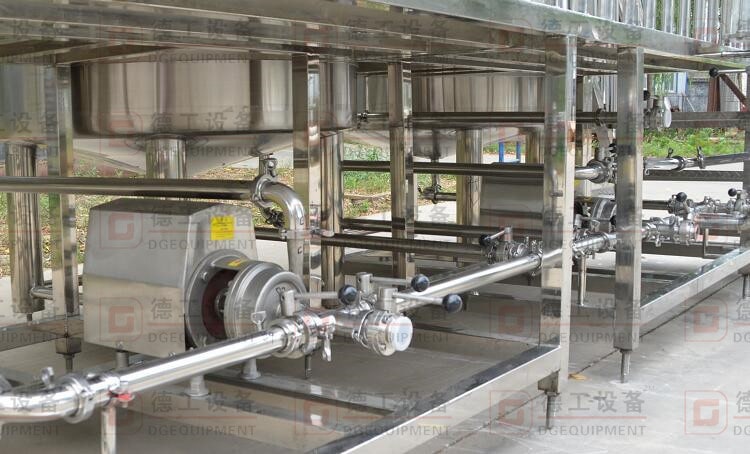

brewhouse-Pipelines-min

All pipes will be connected by tri-clamp.


We manufacture and sell pre-designed craft beer brewing equipment systems for those of you who are either starting out or just want to click and brew. Check out our Brewing Systems to see which one would fit your needs the best. Give us a call if you have questions.

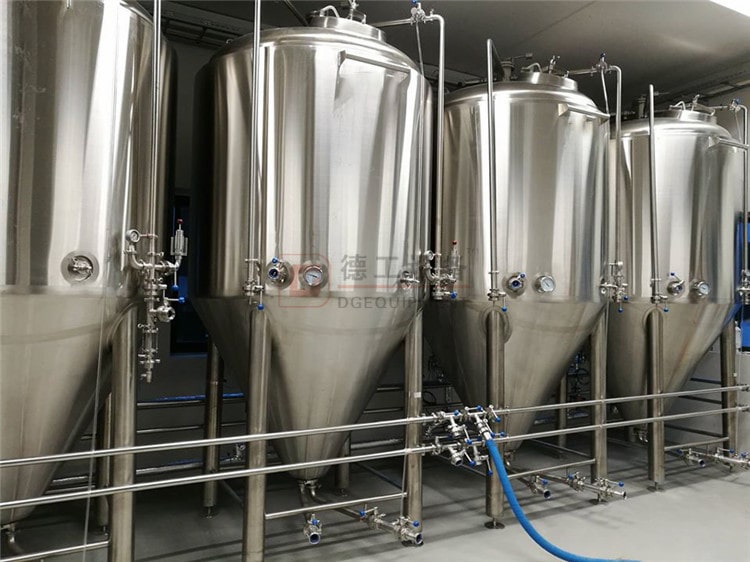

1-3-min

Beer fermentation tanks


For the more discerning and commercial brewing industry customers, we also custom fabricate systems to your specifications. Our systems are comprised of brewing tanks, brewing kettles, burners and all the parts and components necessary to get you up and brewing in a short time. If you need assistance designing your system, we can help you there as well.

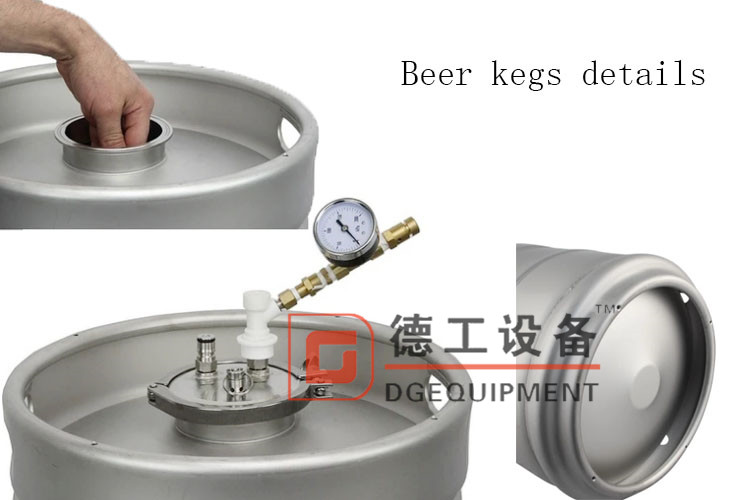

beer kegs detials

Beer kegs 1/2  1/6 1/4 available


Just contact Alice and she will make certain you get exactly what you want and need. Our passion is building and providing the best quality brewing equipment to our customers world-wide.


Contact Alice today

In our excellent collection of brewing equipment, we offer our clients premium quality Microbrewery Equipment. This brewery equipment is well-manufactured by the use of premium quality components, basic material and sophisticated technology.
