500L Capacity Cold Liquor Tank Dimple Plate Jacket In Beer Production

Our cold liquid tanks are designed to cool water efficiently and quickly. We rigorously test the reliability of all equipment and are happy to consult on setup and installation. All craft kettle equipment uses high-quality welds, reliable components and industry standard 304 stainless steel. Used for cold water used in wort heat exchangers.
Availability:
Quantity:
  • DEGONG-500L
  • DEGONG
Product Description

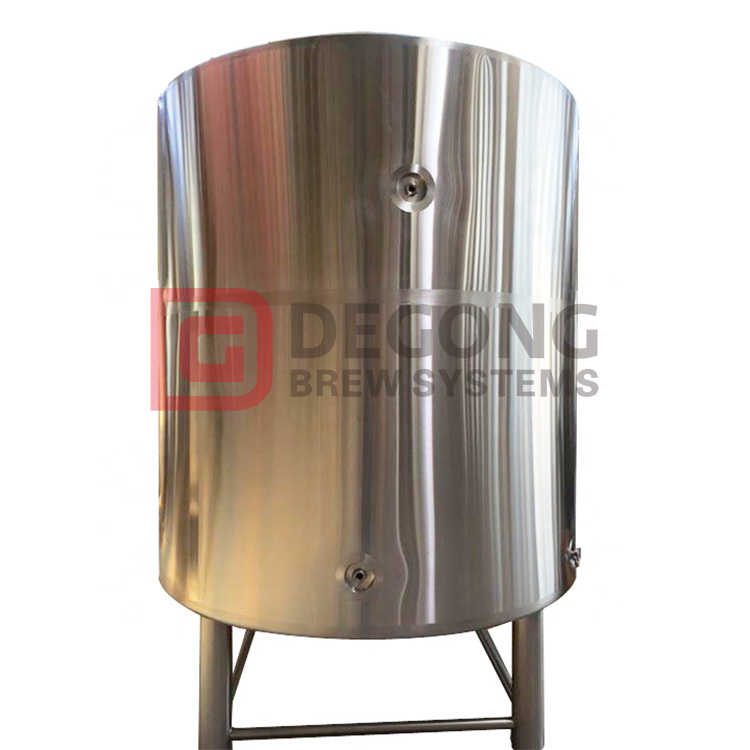

500L Cold Liquor Tank


Technology Parameters

Capacity 100L 200L 300L 500L 1000L 2000L
Floor space 15sq.m. 25sq.m. 35sq.m. 45sq.m. 80sq.m. 120sq.m.
Power consumption 18KW 25KW 29KW 35KW 60/20KW 60/25KW
Fermentation time 8-12 days 8-12 days 8-12 days 8-12 days 8-12 days 8-12 days

The thickness of the inner tank is 3.0mm, and the thickness of the outer jacket is 2.0mm, which has good heat preservation effect.

Cylinder (ellipse, SUS304), thickness: 3.0mm, insulation layer: rock wall thickness: 80mm.

Equipped with: mixer;

Power: 1.5KW;

Speed ratio: 1:43, separation device for wort tube and washing tube.

Top manhole door: diameter: 400mm, atmospheric manhole design.

Liquid level display device: sight glass, liquid level gauge, equipped with spray device for cleaning.

Outer surface: welding seam polishing treatment. The polishing accuracy can reach Ra0.4μm. The surface is polished 3 times.

65


Standard features

Side or top manhole

Observation tube with calibration strip

CIP spray ball and down tube

Outlet, with stainless steel butterfly valve

Inlet pipe joint

Overflow pipe in the water tank

Glycol cooling jacket for wiring under the pit plate

Thermowell with strain relief

Cone top and bottom

Stainless steel legs/ height adjuster and cushion

Stainless steel insulation layer;

Effective volume: 200L-10000L

Liner: SUS304, thickness 3mm,

Outer container: SUS304, thickness 2mm, frosted.

Shell: SUS304, thickness 1.5mm.

Insulation material: polyurethane, thickness: 80mm.

The welding strip is polished at the welding point.

Tapered top/cylindrical/tapered bottom/shell sheath (one or two parts)/bottom sheath/shell and bottom insulation/with adjustable legs.

Connection method: liquid level interface/steam inlet/outlet/Pt100 interface/top manhole/respirator/inlet/outlet.

525350

Beer brewing equipment System Overview
(Can be customized )

Architecture Main Components
1.Trituration System 01.Malt Mill

2.Heating System
(Optional)

01.Steam Boiler(Optional)
3.Saccharification System 01.Mash Tun / Lauter Tank
02.Whirlpool Tank /Brew Kettle
4.Fermentation System 01.Fermentation Tank
5. Cooling System 01.Glycol Tank
02.Glycol Unit
6. Cleaning System 01.Disinfection Tank
02.Alkali Tank
03.Sterilization Vehicle
04.Sterilization Pump
7. Control System

with PLC screens to monitor the temperature of the fermentation,
the Brew house and Glycol Tank. (High Quality)


Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
