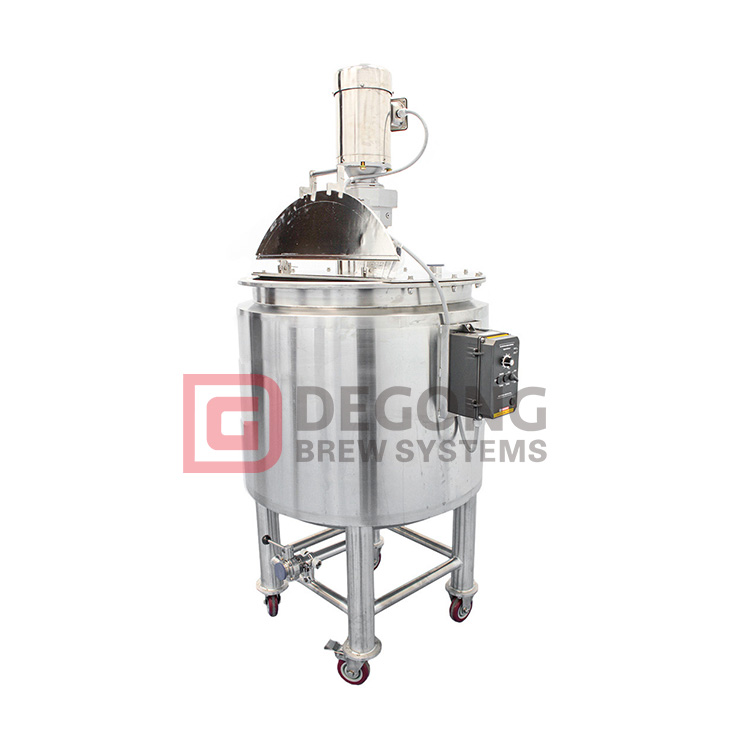

DG-500L
DEGONG
| Main Features |
Stainless Steel 304 overall construction.
Workable Volume: 500L.
15psi dimple jacket for heating or cooling with insulated stainless cladding.
Jacket does not include a heating or cooling source, please ask your sales rep for options.
The vessel interior holds NO pressure.Dimension : 20″ L x 20 ” W x 68″ H1.5″ tri-clamp outlet with sanitary butterfly valve.

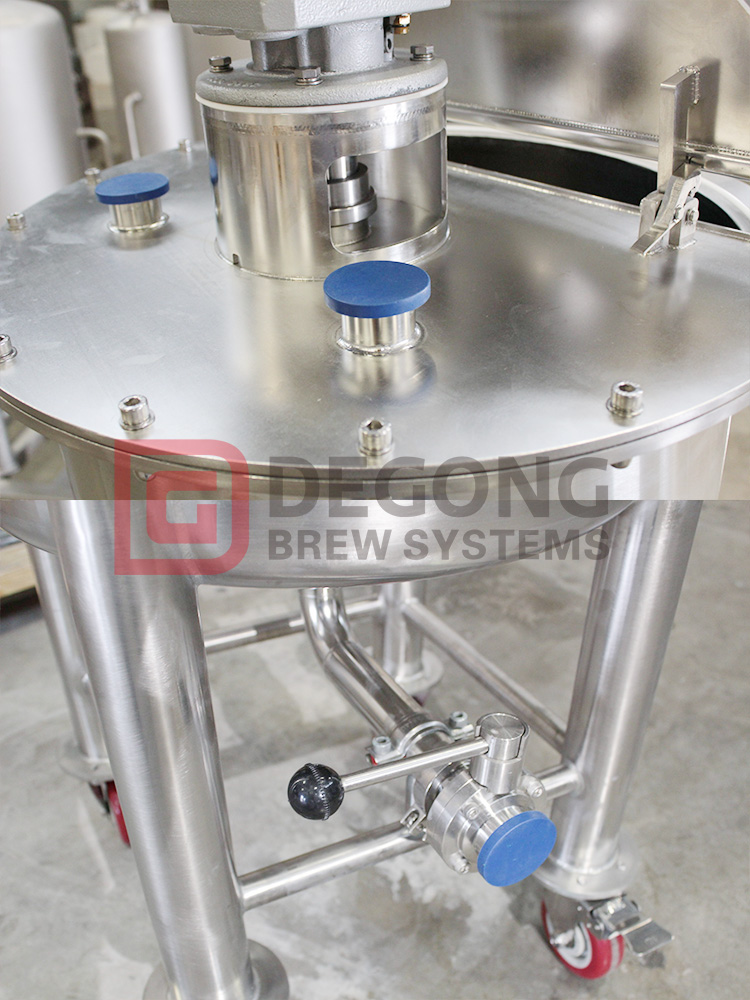

Top 2 x 1.5″ tri-clamp port.
Top spring-loaded hinged lid, with a locking mechanism in vertical holding position.
Tank inner side is electropolished to 0.8µm( RA32 uin, #4 food-grade finish) sanitary finish.
1 HP stainless Lesson motor, 5:1 speed reduction gearbox.
110v input, integrated Variable frequency speed control, 0 -350 RPM adjustable.
5:1 speed reduction gearbox.Impeller a 6″ OD marine propeller.
| Technical Parameters |
| Effective volume | Dimension of tank(D*H) | Total height | Motor power | Blending speed |
| (L) | (mm) | (mm) | (kw) | (r/min) |
| 500 | 840*1000 | 2750 | 0.75 | As customer's requirement |
| 600 | 920*1000 | 2850 | 0.75 | |
| 700 | 990*1000 | 2850 | 0.75 | |
| 800 | 950*1220 | 3000 | 0.75 | |
| 900 | 1010*1220 | 3000 | 0.75 | |
| 1000 | 1060*1220 | 3150 | 1.1 | |
| 1500 | 1160*1500 | 3350 | 1.1 | |
| 2000 | 1340*1500 | 3410 | 1.5 | |
| 3000 | 1410*2000 | 4000 | 2.2 | |
| 4000 | 1620*2000 | 4250 | 2.2 | |
| 5000 | 1810*2000 | 4300 | 3 | |
| 6000 | 1980*2000 | 4550 | 3 | |
| 7000 | 1930*2440 | 5000 | 3 | |
| 8000 | 2060*2440 | 5000 | 4 | |
| 9000 | 2180*2440 | 5050 | 4 | |
| 10000 | 2300*2440 | 5050 | 4 |
| Application |
Stainless steel mixing tanks can be used in food, beverage, pharmaceutical, chemical, wine and other industries.
The inner surface finish of the stainless steel mixing tank is mirror polished, Ra<0.4um.
Welds are ground to a smooth surface.
Stainless steel mixing tanks are available with a variety of agitators: impeller, anchor, turbine, high shear mixer, magnetic mixer. Mixing tanks can be jacketed or unjacketed.
Stainless steel food grade mixing tanks are available with or without jacket. Jacket types include full jacket, pit jacket, heating coil. Heating and cooling types include steam heating and electric heating.
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
