500L Aseptic Container Built For Breweries And Distilleries Stainless Steel Transport IBC Tanks

Our sterile containers for breweries and distilleries are manufactured using state-of-the-art laser welding equipment to ensure complete hygienic welding of the entire container. They can be equipped with a fully hygienic Tri Clamp ferrule on the lower side wall and can be used in a variety of combinations, rocker arms, carbide, thermal wells or level sensors.
Availability:
Quantity:
  • DG-500L
  • DEGONG
Product Description

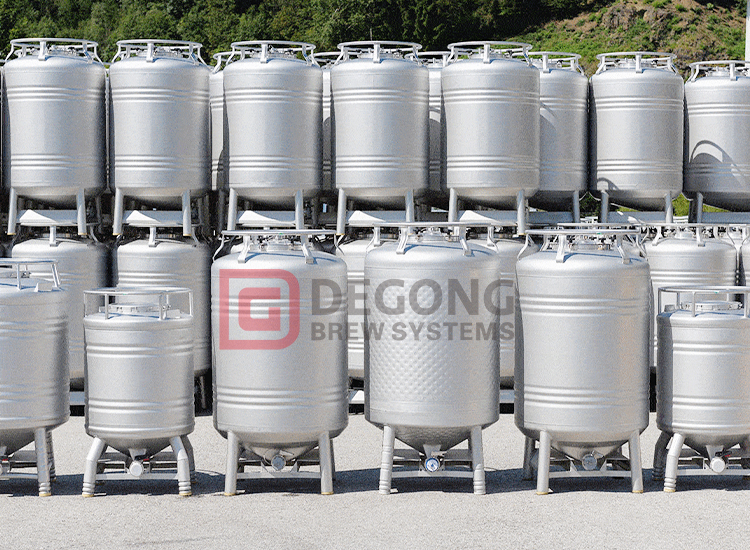

500L Transport IBC Tanks


Technical Parameter
Material stainless steel 1.4301 (aisi 304), 1.4404 (aisi 316L), 1.4571 (aisi 316Ti) or upon customer´s request
Capacity 500 - 2000 liters
Diameter 1000-1400 mm

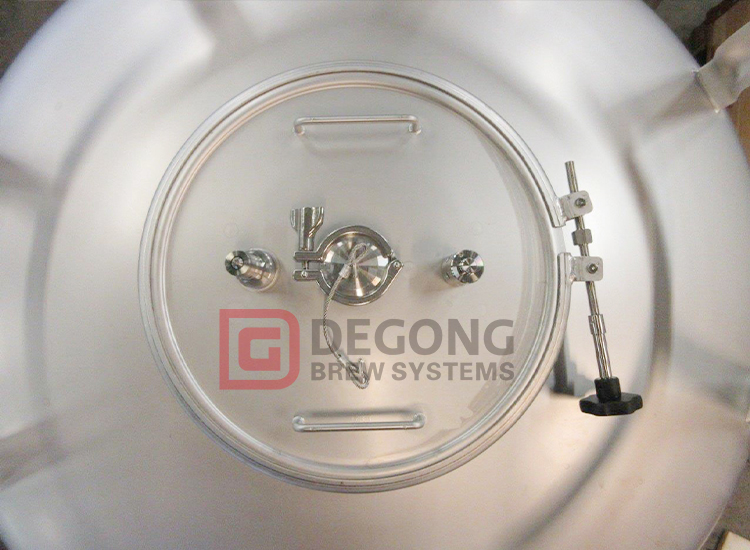

Top manhole DN 400 with various lid systems according to customer´s requirements
Bottom conical or asymmetrical bottom with deepdrawn outlet pocket and various outlet fittings according to customer´s needs
Handling with bottom clearance for floor-borne vehicles, with forklift pockets, sterilizable by steam, vacuum resistant and stackable
Technical details max. operating pressure 2,0 bar, max. operating temperature 130°C
Design sterilizable by steam, vacuum resistant and stackable


149


Advantages

  • Safe forklift transport (fork tunnels).

  • Complete emptying of container.

  • Weight optimized frame composed of tubular profile.

  • Various outlet versions.

  • Stainless steel options: AISI 304 or AISI 316.

  • Optionally available with heating or cooling jacket.


Applications
  • Fermentation

  • Carbonation

  • Yeast Propagation

  • Brite tank

  • Storage tank


151

CAPACITY DIAMETER HEIGHT

500 L

1000mm 1350mm

650 L

1000mm 1550mm

900 L

1000mm 1700mm

1000 L

1000mm 1880mm

1300 L

1140mm

1850mm

2000 L

1400mm

2020mm


150


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
