500L Alcohol Distillery Gin Still Machine Vodka Distillation Equipment Copper Distiller

A distillation column (distillation column) consists of several components, each of which is used to transfer thermal energy or enhance material transfer. We have two electric heating methods for heating the distiller, one is steam heating; the other is electric heating.
Availability:
Quantity:
  • DG-500L
  • DEGONG
Product Description

500L Alcohol Distillery


The standard of this equipment
  • Pot Materials: Stainless steel 304 with copper pot

  • Glass type gin botanical basket with a copper basket inside

  • Agitator with long heavy blades for mash cooking

  • Explosion proof motor

  • Low pressure steam jacketed heating or oil (water) bath electric heating system

  • Large glass manway

  • Variety of customized copper whisky head

  • Large size Tube and Shell Condenser, stainless steel or copper

  • Pressure Relief Valve and pressure gauge for inner boiler and jacket

  • PU insulation

  • Tri Clamp Butterfly Valve on the drain

  • CIP in the pot, whisky head and condenser

  • Stainless steel or copper parrot

  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.

  • Mirror Polish Inside

  • Swirl pattern outside, satin finish outside or mirror polish

  • CIP pump and CIP manifold is optional

  • Copper spirits safe is optional

  • Coil type condenser is optional

  • Spirits storage tank is optional

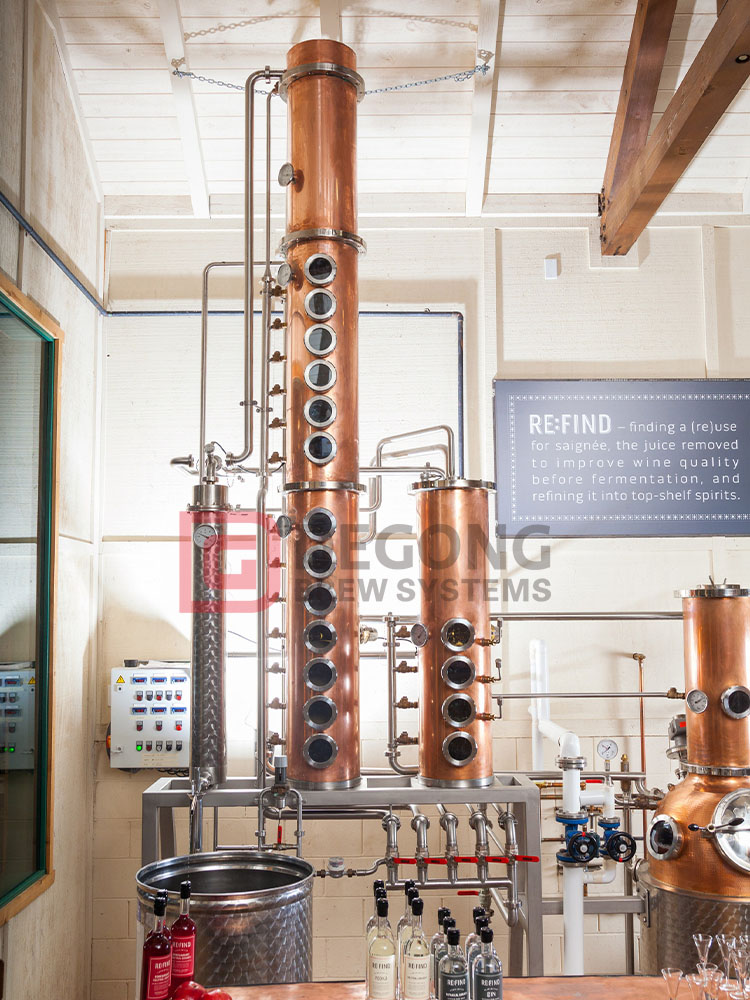

334


Key Components

01.STILL POT

lt is used for heating mash.This boiler can be built in single wall or jacketedwall. The pot can be heated by electric, steam, gas or even wood per need.


02.HELMET/GOOSE NECK

This is an expansion chamber sitting on the top of the still pot. lt helps holdback higher boiling compounds while allowing desirable aromatics and flavorsto continue up the column. This is very important for making alcohol with excellent taste.

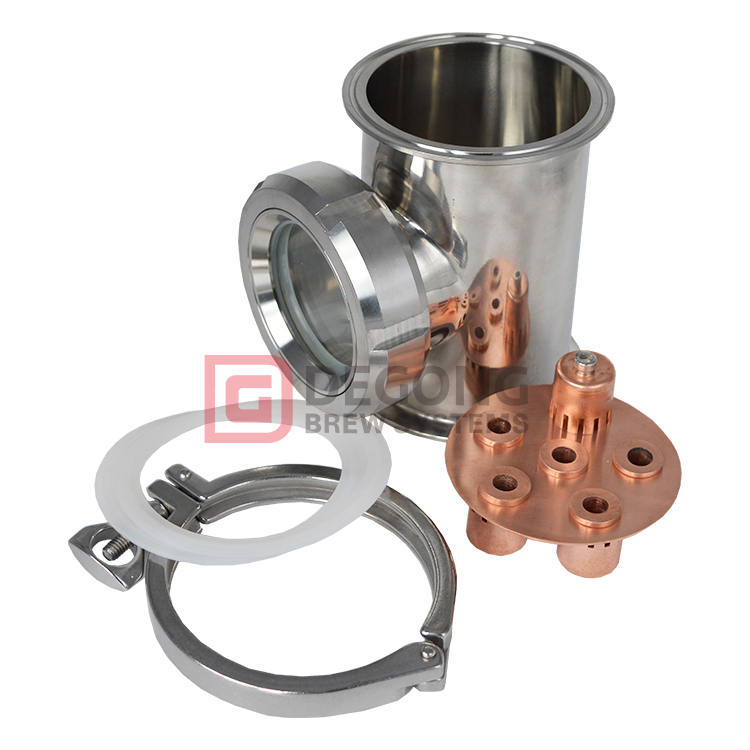

03.REFLUX COLUMN

Bubble plates are used to create more reflux in the column, ultimately to create multiple distillation cycles during one run. The number of plates means the time of distilation you have for one run.

355


04.DEPHLEGMATOR
A dephlegmator is sometimes incorporated into the top of a column still. It uses "active cooling" to force the condensation of alcohol vapor and induce reflux action.

05.GIN BASKET

The Basket can be used to infuse your spirit with botanical flavours from the Gin  range or your own

ingredients.


06.PRODUCT CONDENSER

In the context of a still, the condenser is a device that cools down whatever hot vapors that flow through it to the point where the vapors condense into a liquid.


07.PARROT

A parrot is a device that allows for measurement of the proof of alcohol comes out of the still.

356


Typical Distillation Times
• 1 hour heat up
• 2-4 hr stripping run
• 3~5 hour distillation time
Structure
-1 x SS304/red copper still pot
-1 x Red copper goose neck(helmet)
-1 x SS304/red copper Gin basket
-1 x Red copper 4~12plate distillation colum
-1 x SS304/red copper dephlegmator
-1 x SS304/red copper condenser
-1 x SS304 parrot outlet
-1 x SS304 support for condenser
Options
High Torque Mash Agitator
Copper Kettle
Copper dephlegmator/condenser
CIP pump and CIP pipe
Bottom spirit storage tank
System at a Glance
Best use: Dedicated Stripping Still, Whiskey, Brandy, Tequila, Gin or Rum Production
Versatile and Cost Effective
Easy Maintenance with Clean in Place
304 Polished and Brushed Stainless and Polished Copper construction
