500L 5HL Pub Beer Equipment Craft Beer Brewing System Micro Brewery 2 Vessel Brewhouse

The 500l capacity could meet the daily beer consumption in a normal pub, bar, tap room or restaurant etc. Compared with commercial brewery, it no need that much investment at beginning. The 2 Vessel structure suitable for brewing 1~2 batches per day. The steam heating is the most popular heating method in beer brewing industry. It could heat the wort more evenly and good for getting high quality wort. But it would need extra steam boiler to support heating, that may would increase your investment at beginning.
Availability:
Quantity:
  • DG-500L
  • DEGONG
Product Description

500L 5HL Pub Beer Equipment


500L MICRO BREWERY EQUIPMENT SCONFIGURATION LIST

System

Main machine

Specifications

Milling System

Malt mill machine

300kg/h, stainless steel

Brewhouse System

Mash/Lauter Tun

500L, Stainless Steel 304

Kettle/Whirlpool Tun

500L, Stainless Steel 304,

Hot liquid tank

1000L, Stainless steel 304

Fermentation System

Fermentation Tank

6*500L Top manway, Dimple cooling jacket

Yeast Adding Tank

Stainless Steel 304

Cooling System

Refrigerator machine

7HP, Coopland inside

Icw water Pump

3T/H
Glycol tank 1000L, with copper cooling coils

CIP Cleaning System

Acid Tank

2*100L, SUS304 full welded with a match control box

Alkali Tank

Cleaning Pump

3T/H
Control System

Control System

Semi-automatic, temperature display

Heating System

Electric/Steam heating

with electric elements

boiler:gas,electric,oil


628

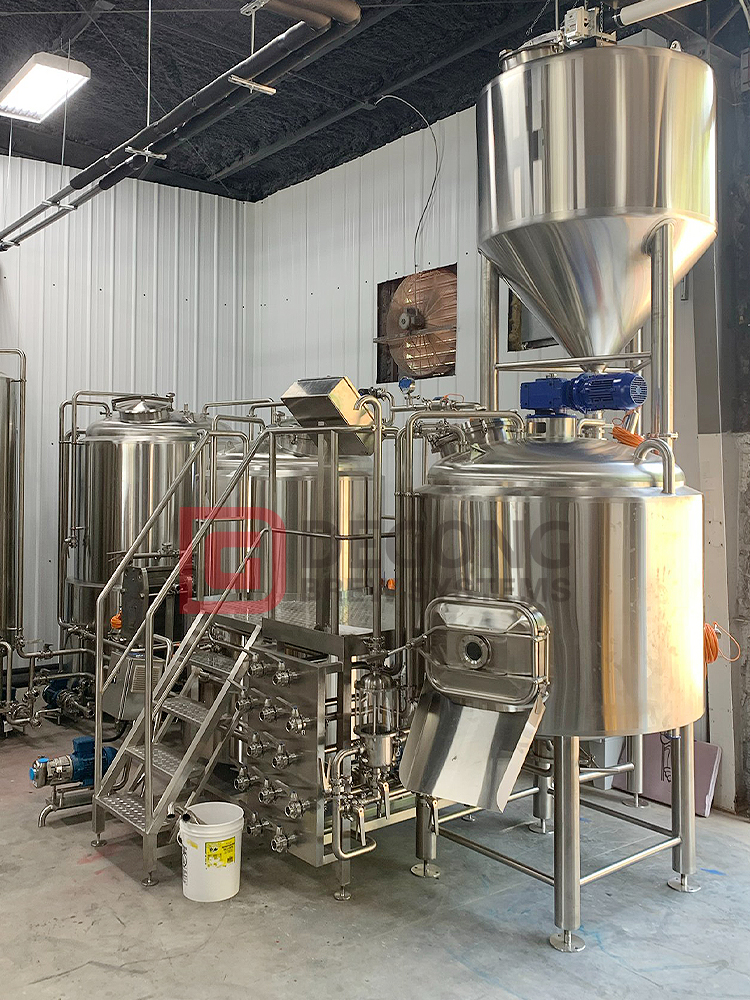

DEGONG 500L 2 vessel brewhouse(M/LT+K/WT+HLT)

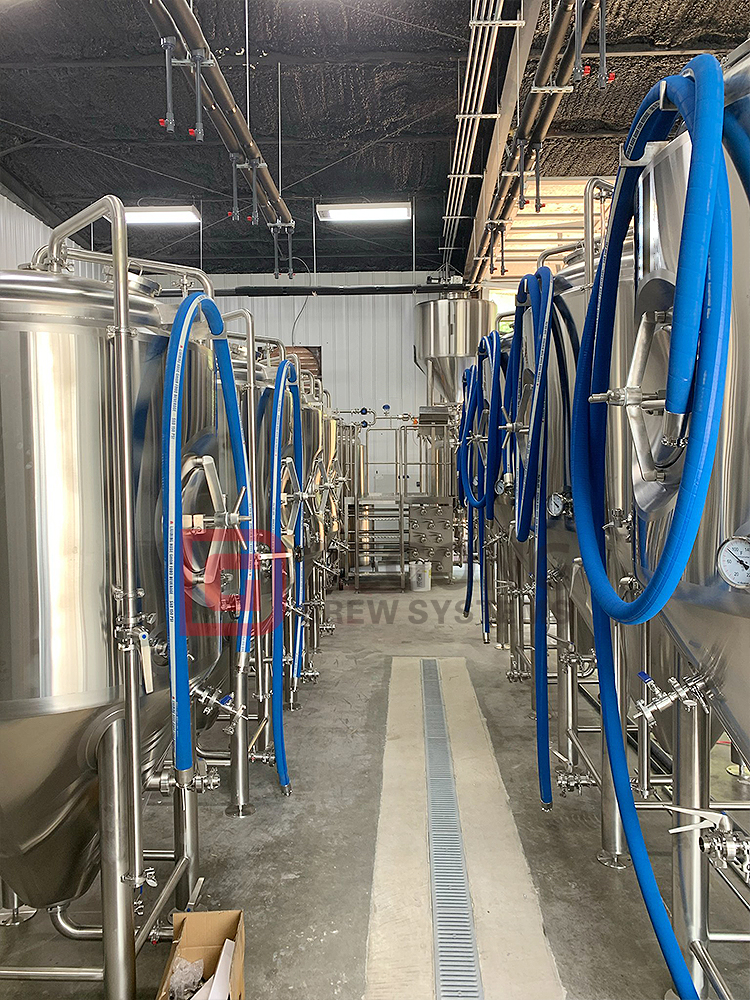

Fermentation tank
  • Made of stainless food steel AISI 304

  • Standardized dimensions and equipment, or according to individual customer requirements

  • Classic design, PUR insulation, double stainless steel jacket, water (or glycol) cooling duplicators

  • Accurate temperature control and reliable CIP are requirements to ensure a quality finished product

  • Cone angles can be changed to suit customer requirements

  • Adjustable pressure valve for controlled fermentation – Overpressure setting mechanism with a glycerine manometer

  • Guaranteed inner surface roughness : Ra < 0.8 μm or less (grinded surfaces) / Ra < 0.5 μm or less (polished surfaces), according to customer´s requirement

  • Service door (manhole) on the top cone or on cylinder part, according to customer requirements

  • Sample valve – cleanable and sanitizable sampling cock for collection product samples

  • Safety valve – double-acting overpressure and vaccum protection safety valve

  • Venting valve – Dedicated venting valve for safety draining of the tank and for accurate measuring of current pressure in the tank using manometer (it ensures properly function of the manometer when the shower ball shower is blocked with a foam)

  • Thermometer socket – welded socket for inserting of thermosensor or thermometer

  • Manometer – It is included in the set of the adjustable pressure valve

  • Filling level indicator – Sanitizable glass or plastic pipe for visualisation height level of the beverage product in the tank


627

629

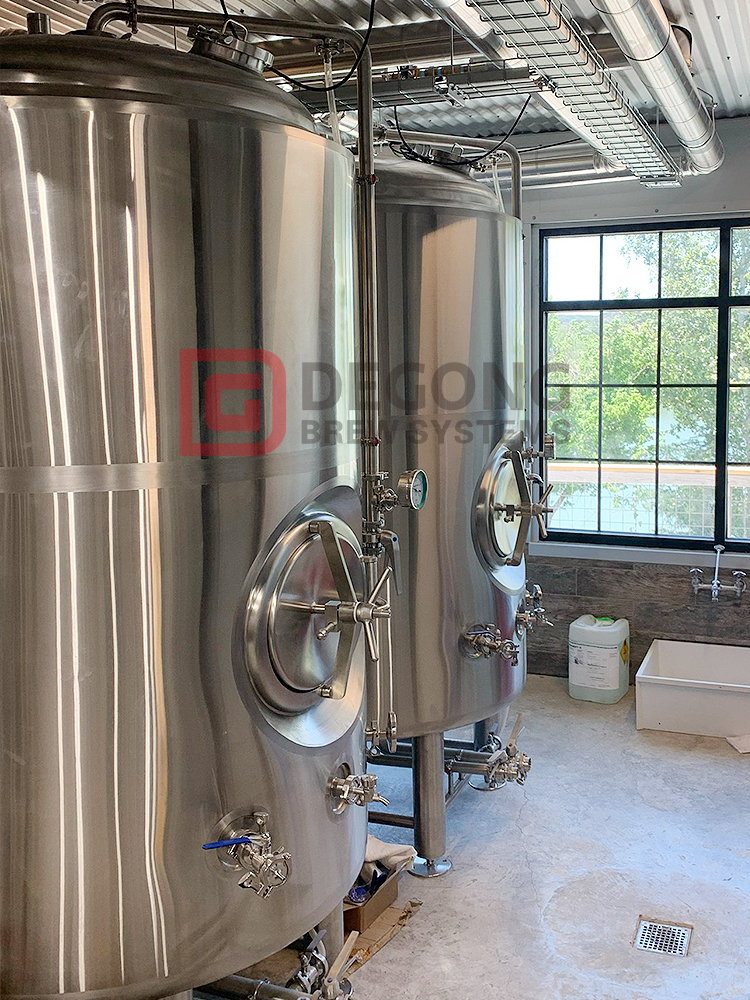

Beer brite tanks are optional
