Spirits: vodka, whiskey, brandy, rum, health.
Heating: steam system
Swirl finish, satin finish or mirror finish
Static pot: 500L, 1000L, 2000L, 3000L, 5000L.
Port material: copper, SUS 304
Motor: 0.75kw, 1.1kw 2kw
Copper pillar board
Equipped with Siemens control system
Top agitator-explosion-proof agitator motor
CIP cleaning pump and all necessary SS CIP cleaning pipes
Safety valve, glass manhole, sight glass
Although the central goal of distillation is to extract alcohol, an equally important task is to navigate homologues. The distiller needs to retain what they want and remove what they don't want (and in the correct amount) to achieve the flavor profile they want. They cannot simply pick their favorites. The homologues are present in different parts of the distillation batch, the "run" part. The brewer selects congeners by keeping some parts of the run and discarding (or recycling) other parts. So distillation is not true flavor creation, but flavor separation.

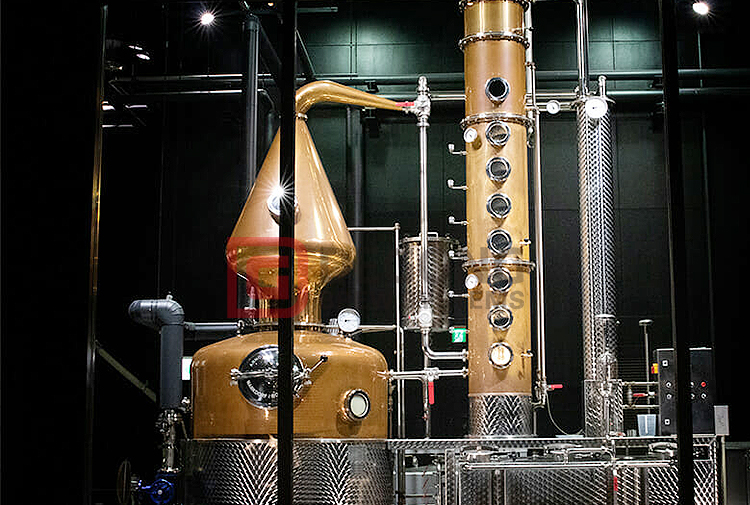

The design is quite clever, much more complicated than the pot still. As you might have guessed, the columnar stills are composed like pillars. Inside the column is a series of perforated plates-usually made of copper-spaced like steps in a ladder. Each of these plates is essentially a small distiller that can filter out congeners as the alcohol vapor passes through. Essentially, a row of stills is like several stacked tank stills.
Flexible production of various spirits
The column distiller can not only be used to make large-volume spirits. There are many complex and strong spirits, such as bourbon and Armagnac. Like the tank distiller, the column distiller is fully customizable, some have multiple columns, some have only one. For stronger spirits that fall off at the lower ABV, there may only be 4-6 plates in a row. For the purest and highest ABV spirit, it will be 50-60.
|Spirits usually made in the column|
Grain whiskey used to blend Scotch, Canadian and Irish whiskey.
Most large American whiskies-bourbon and rye whiskey.
A wide range of models can meet the various requirements of each market and ensure that you can always find a solution that suits you. If you want to know more detailed information about our equipment, please contact us.
