DG-500L
DEGONG

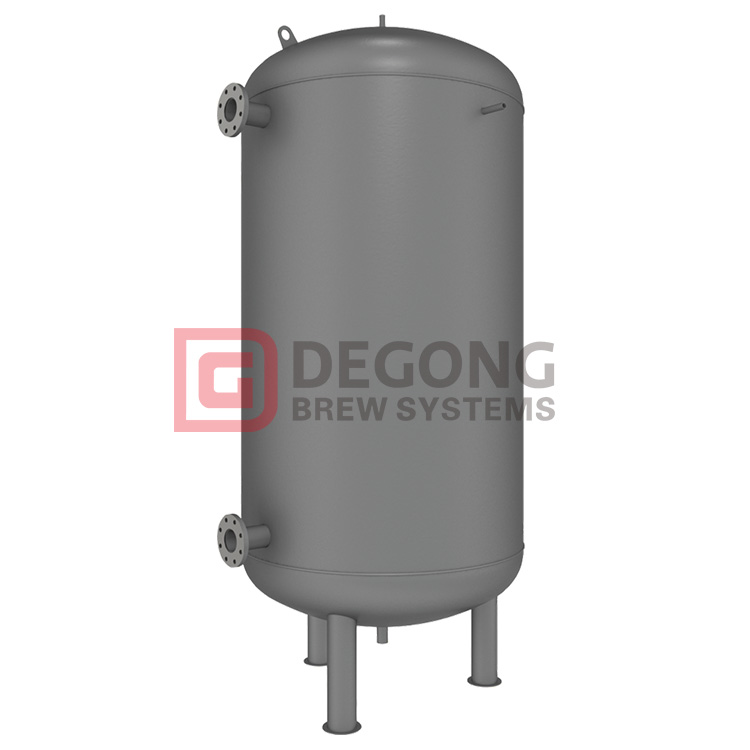

| Stainless Steel Storage Tank | |
| Volume | 50L- 5000L |
| Material | SS304 |
| Type | Vertical/Horizontal |
| Surface Finish | Mirror Polish, Satin polish, 2B Finish, EP(When required) |
| Option | With or Without weels, With or without mixer |
| Application | Food, Dairy, Beverage,Beer, Chemical, Pharmacy,etc |
| Design Pressure | According to requirement (From vacuum to 10 bar) |
| Temperature | According to requirement (From -20℃ to 200℃) |
| Technical Parameters | |||||
| Working Volume (L) | Dimension of Tank(D*H)mm | Total Height(H)mm | Diameter of Inlet&Outlet(mm) | PU Insulation(mm) | Man Hole Size(mm) |
| 500 | 800*800 | 1750 | 38 | 50 | 440*320 |
| 1000 | 1000*1200 | 2200 | 38 | 50 | 440*320 |
| 1500 | 1100*1400 | 2500 | 38 | 50 | 550*430 |
| 2000 | 1200*1500 | 2700 | 38 | 50 | 550*430 |
| 3000 | 1400*1700 | 3150 | 51 | 50 | 550*430 |
| 4000 | 1500*2100 | 3450 | 51 | 50 | 550*430 |
| 5000 | 1600*2200 | 3590 | 51 | 50 | 550*430 |
| 6000 | 1700*2200 | 3690 | 51 | 50 | 550*430 |
| Features |
Strong and durable stainless steel. Stainless steel is resistant to acid and alkali, does not rust, and has a long service life;
Structural form. Vertical/horizontal specifications are complete.
Large capacity special capacity. 50L-10000L various capacity specifications to meet your needs.
Imported grain wheel compressor. Adopt imported Copeland compressor, with good cooling effect, stable performance and long service life.
Microcellular full foaming. The polyurethane foam layer has high density and good thermal insulation and cold insulation effect.
Microcomputer control. Fully automatic microcomputer control system, one-step observation operation.
| Application |
Milk refrigerated tank farm is an important supporting equipment for mechanized milking, which is more suitable for manual milking farm;
Milk collection stations and dairies to cool and store fresh milk, as well as other liquid materials;
Keep cool raw milk in good condition to prevent bacteria from multiplying.
| Installation and debugging |
1. Requirements before installation
(1) Care should be taken during handling, and the left and right inclination should not exceed 30 degrees to prevent damage to the equipment.
(2) Check the wooden box to make sure there is no damage.
(3) The refrigerant has been filled into the unit, and it is not allowed to open the valve of the compressor unit.
2. The location of the workplace
(1) The studio should be spacious with good air flow. There should be a one-meter access (or operator for work and maintenance. Consider connections to other equipment when mechanized milking,
(2) The foundation of the milk tank should be 30-50mm higher than the ground.
3. Installation of milk tank
(1) After the milk tank is in place, adjust the support bolts to tilt the milk tank body to the end of the milk outlet, but the inclination should not be too high. In general, the best position is where the milk in the milk can be washed clean. The six feet are evenly stressed, and one supporting foot is not allowed to float. The left and right support feet can be adjusted with a spirit level so that the milk is not tilted.
(2) Open the condenser inlet.
(3) The equipment must be connected to the ground when it is connected to the power supply.
