5000L Industrial Alcohol Distillery Copper Boiler Still Whisky Vodka Distillation Equipment

Basically, we have 7 types of distillation equipment. But all our equipment can be customized, so we can also produce other types of distillation equipment according to your needs. We can also supply fermentation tanks, storage tanks, mixing tanks, CIP, draught beer tanks, beer beverage plants and various wineries and tanks for beverage or food.
Availability:
Quantity:
  • DG-5000L
  • DEGONG
Product Description

5000L Alcohol Distillery


Pot Working capacity 5000L
Tank materials Stainless steel inner pot and top copper dish head (optional all copper inner pot and dish head)
Installation Size (Length * Wide * Height)  5500*2200*5800mm
Steam requirment 5000L
Production time: 6-7 hours 500 KG/Hr
Max alcohol reached to 75-80%/ 160Proof
Specifications SS Steam jacketed and Insulated warm layer
with  handhole outlet and valve
With top agitator (explosion proof CE approved motor)
Copper Gooseneck
6 plates copper column
6 pcs Drain valve be mounted on each plate
SS Dephlegmators on top of column
SS Ccondenser
SS Parrot spout
2 pcs SS Tube Legs
Come with a CIP Cleaning Pump and all necessary SS CIP cleaning piping lines etc.

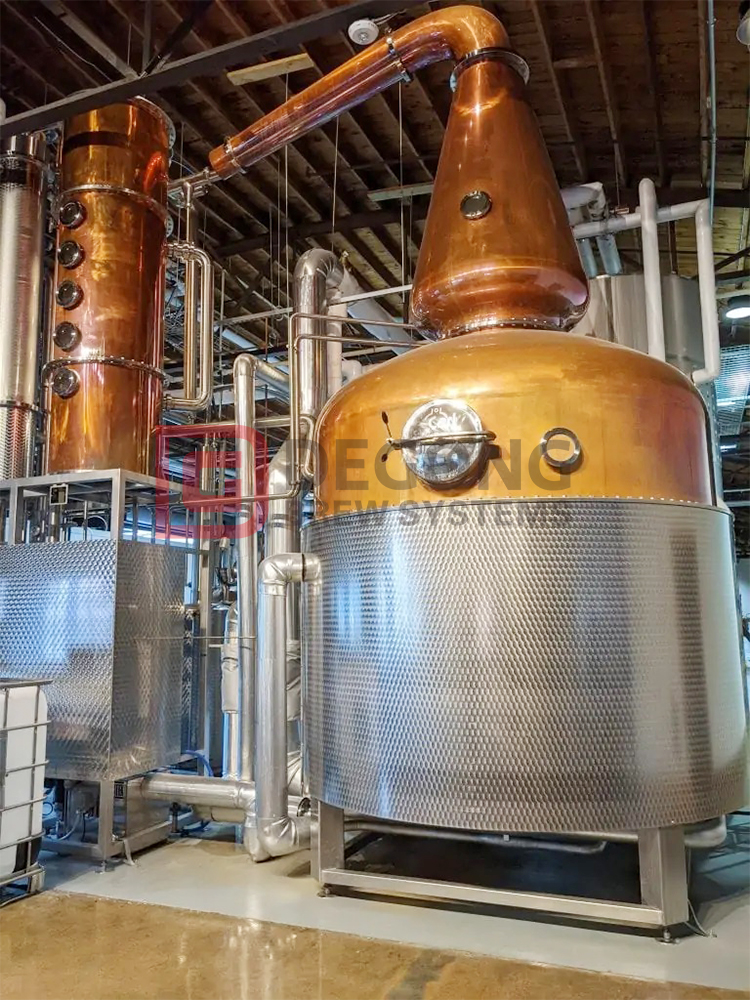

398

DEGONG 5000L brewery


Spirit type
Capacity
Components
Whisky distiller
50-5000L
Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller
50-5000L
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Bradny distiller
50-5000L
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Rum distiller
50-5000L
Still pot, column, condenser, CIP, pipe system
Gin distiller
50-5000L
Still pot, column, gin basket, condenser, CIP, pipe system
Multi-spirits distiller
50-5000L
Still pot, onion head, column, gin basket, dephlegmator, condenser, CIP, pipe system


396

DEGONG 3000L brewery
