5000L Conical Fermentation Tank Beer Brewing Stainless Steel Fermenter Brewery Equipment

The conical fermenter is a vessel designed to produce high-quality craft beer. Often referred to as an “Unitank” by brewers, the conical fermenter can be used for fermentation, maturation and sedimentation. With a special fitting, it can even serve as a brite tank for beer carbonation.
Availability:
Quantity:
  • DG-5000L
  • DEGONG
Product Description

5000L Conical Fermentation Tank


Product advantages
  • 304 stainless steel plate as a whole

  • The insulation layer material is high-grade polyurethane with a thickness of 80mm.

  • Polishing accuracy up to Ra0.4μ m.

  • The cooling efficiency of Maitreya plate jacket is greatly improved.

  • Two stage cooling mode.

  • Strict tank pressure test.

  • Energy conservation and pollution emissions.


4

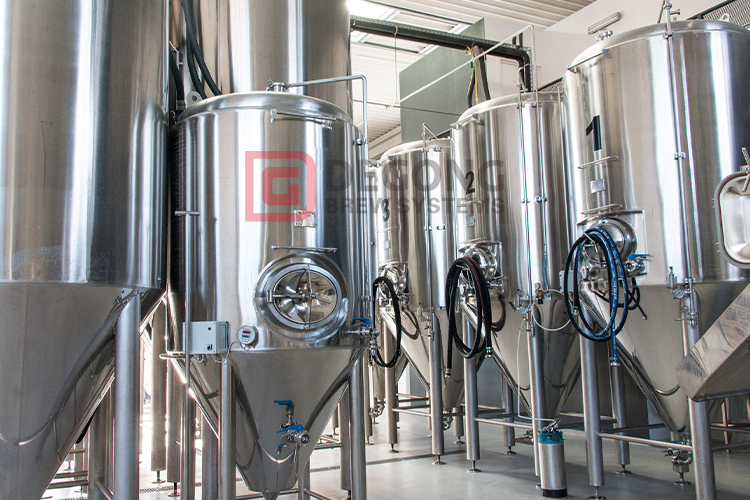

Various fermentation tanks in a brewery


Conical Fermenter Size Chart
Type Capacity (L) Capacity (US gal) Total Volume (L) Total Volume (US gal) Diameter (mm) Total Height (mm) Shell Height (mm)
DG-500L
500 132 670 147 800 2350 1000
DG-1000L 1000 264 1350 297 957 3057 1500
DG-1500L 1500 396 1940 427 1116 3100 1500
DG-2000L 2000 528 2620 576 1275 3330 1500
DG-3000L 3000 793 4000 880 1400 3963 2000
DG-4000L 4000 1057 5300 1166 1600 4304 2000
DG-5000L 5000 1321 6650 1463 1750 4430 2000
DG-6000L 6000 1585 7846 1726 1750 4930 2500
DG-8000L 8000 2114 10250 2255 1911 5225 2750
DG-10000L 10000 2642 13100 2882 2071 5700 3000
DG-12000L 12000 3170 15000 3300 2200 5950 3000
DG-16000L 16000 4227 20650 4542 2200 7450 4500


3

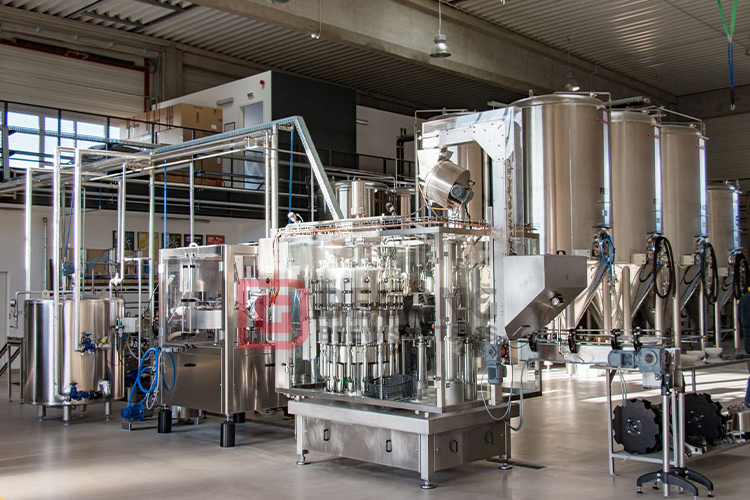

DEGONG a complete brewery



Standard


  • Operating Pressure – 2.5 bar

  • Operating Temperature – (min)-5°C/(max)30°C

  • Pressure Gauge

  • Insulation – Polyurethane foam layer (60 mm)

  • Manway Door – Oval

  • Legs – Adjustable height and tilt

  • Temperature Control

  •     Cooling Jacket on Coat

  •     Cooling Jacket on Conical Bottom

  •     Thermometer (analog)

  •     Thermowell (with PG9 fitting)

  • Valves

  •     Sample Tap – Butterfly valve (DN15 DIN11851)

  •     Partial Discharge – Butterfly valve (DN40 DIN11851)

  •     Total Discharge – Butterfly valve (DN40 DIN11851)

  •     Safety valve

  •     Vacuum valve

  • Type Plate – With note card

  • Ladder rack – Coat height 1500 mm onwards

  • Welding

  •     Outside – Brushed finish

  •     Inside – Brushed and polished (Ra<0.8 µm)
