5000L 50HL Beer Brewing System Commercial Brewery Equipment Large Factory Brewhouse Plant

More than 5000L brewhouse can be made of copper or stainless steel. The pipelines and valves of the whole set of equipment are connected by sanitary parts. And can be realized automatic control of temperature, pressure, concentration, etc by automatic control technology. More than 5000L brewhouse is mainly for brewing industrial beer. And it can be brewed bloody beer, brown ale, fruit beer and stout to meet the needs of consumers with different tastes.
Availability:
Quantity:
  • DG-5000L

  • DEGONG

Product Description

5000L Commercial Brewery Equipment


No. Name Components Capacity Parameter
1 Milling system Rolling Miller 2000-2500kg/hr Double roller Speed differential
Flexible Auger 2t/h Stainless steel screw PVC pipe
Silo 3000L SUS304
2 Brewhouse system Mash/Lauter tun 5000L

Steam jacket on bottom and side Agitator inside Wort hydrator mounted top of mash tun

Grain rake with VFD Laser cutting V-wire False Bottom Easyclean and detachable sparging spray ring Multihole wort collect ring(optional) Anti-rinser(optional)

Kettle/Whirlpool Tun 5000L Steam Jacket on bottom and side Steam vent with condensate ring for kettle stack
Hot water tank 10000L
Heat exchanger 30M2 SUS304 plate
3 Fermentation system Fermentation tanks 5000L/10000L Glyco cooling jacket on cone and bottom Side or top manway CIP arm and CO2 blow off arm Mechanical relief valve Shockproof pressure gauge Rotating racking arm Dry hopping port Carbonation stone Sight level
4 Bright beer tank Bright beer tank 10000L/20000L Glyco cooling jacket on cone and bottom Side or top manway CIP arm and CO2 blow off arm Mechanical relief valve Shockproof pressure gauge Rotating racking arm Dry hopping port Carbonation stone Sight level
5 Glycol system Glycol Tank 10000L Insulated conical top and sloped bottom
Cold Water Tank 10000L Dimple plate on side wall
Chiller 30HPx2
6 Control system Brewhouse controlling PLC control with touch screen for special
Fermentation Controling
7
CIP system Caustic Tank 1000L
electric heating element inside
Sterilization Tank 1000L
Sterile Water Tank 1000L


619

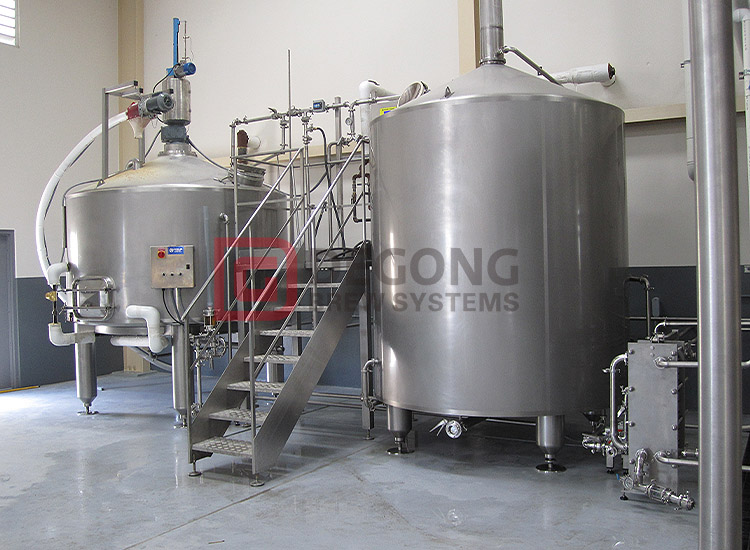

DEGONG 5000L beer brewhouse


Output / Brew 5000L/50HL
Brews / Day 2~4
Output / Month 300,000~600,000L
Electric Supply 3phase/380(220, 415,440)v/50 (60)Hz
Heating Source Steam heating
Area Request >700M2
Brewmaster 5


218

DEGONG 5000L beer fermentation tanks


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
