500 Liters 1000 Liters Per Batch Copper Beer Equipment 2 Vessels Brewing House Brewery Plant

An innovative copper beer equipment system created with the aim of providing a brewing house that can produce your beer in less time with an excellent yeld and particular attention to the consumption of electricity and cubic meters of water, fundamental variables for your reality.
The brewing room is not only a production plant. For many people it becomes a design element of their pub, restaurant or tasting room. The copper color will fascinate your visitors and give your premises an added value that you proudly can show to everyone.
Availability:
Quantity:
  • DG-1000 Liters

  • DEGONG

Product Description

1000 Liters Copper Beer Equipment


1000L Brewhouse specifications

Mash/Lauter tun

Capacity

Effective capacity 1000L,with 25% head space

Rake

Top motor rake with VFD control, cleaning plate

Sieve

False bottom, removable smart sieve.

Grain remove

Sanitary grain gate on side

HLT vessel

2000L capacity, electric heating, level gauge

Kettle/Whirpool tank

Capacity

Effective capacity 1000L,with 25% head space

Heating

Steam heating

Whirpooling

Tangent design for whirpooling

Specification Overall dimension

According to layout design

Material Sanitary stainless steel SUS304
Wall thickness 3mm (inner) / 2mm (outer)
Welding 100% TIG/GTAW
Interior finish Overall polishing to 0.2~0.4 μm without dead corner
Head Dish head, 3mm, conical head available

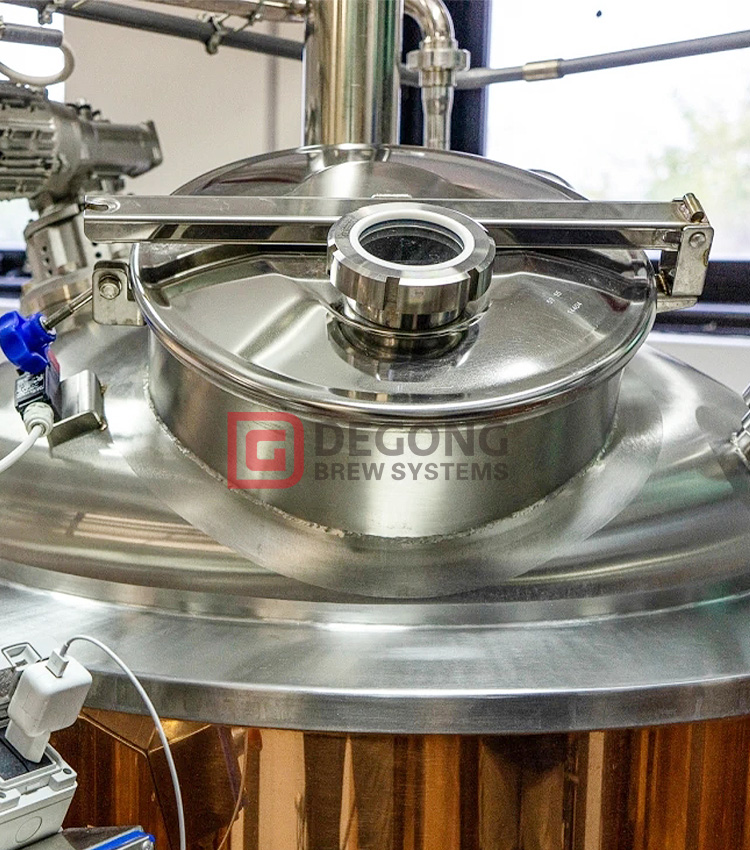

Manhole Sanitary glass manhole on top, with led light
Temperature sensor PT100 sensor (except lauter tank)
Insulation Polyurethane, 80mm
CIP 360° spray revolving CIP ball
Legs 4pcs SUS304 heavy duty legs with leveling pad
Pre-shipment test 48 hours motor performance and pressure/leakage test


911912


Advantages
  • Ease of use

The goal was to understand the master brewer‘s needs by finding solutions that could help them do their job. After a research and study of possible alternatives, our team designed a plant with an automatic control system of mashing and boiling temperatures. In order to reduce the movement of the operators during the production phases, we have designed a compact block of the product transfer valve drives in order to have all the production phases under control with minimum effort.


  • Efficiency

An innovative system created with the aim of providing a brewing house that can produce your beer in less time with an excellent yeld and particular attention to the consumption of electricity and cubic meters of water, fundamental variables for your reality.


  • Aesthetics

The brewing room is not only a production plant. For many people it becomes a design element of their pub, restaurant or tasting room. The copper color will fascinate your visitors and give your premises an added value that you proudly can show to everyone.


  • Flexibility

Our 2 vessels Brewing House is designed and built according to your needs. It can be placed even in small spaces, the brewing house have a capacity from 500 to 1000 lt/ batch and can be powered by steam heating or electric heating.


917

913915


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
