500 Liter FV Stainless Steel Fermentation Vessel Micro Brewery Fermenter Conical Bottom Beer Tank

Fermentation tank, you may also heard some other names as conical fermenter, fermentation vessels, Unitank, or even FV, made by 304 sanitized stainless steel, 100% TIG Welding, is the key part to hold wort after brewing and turns it into beers. It is built for those industrial breweries who will ferment beers with volume from 100L to 5,000L(max to 50BBL). With the Standard fully polished 304 stainless steel material, it has all standard sanitary welded tri-clamp fittings and CIP arm.
Getting your tanks from the direct factory, our team is ready to provide 100% customized products to meet any of your special requirements.
Availability:
Quantity:
  • DG-500 Liter
  • DEGONG
Product Description

500 Liter Fermentation Vessel


Fermentation tank, you may also heard some other names as conical fermenter, fermentation vessels, Unitank, or even FV, made by 304 sanitized stainless steel, 100% TIG Welding, is the key part to hold wort after brewing and turns it into beers. It is built for those industrial breweries who will ferment beers with volume from 100L to 5,000L(max to 50BBL). With the Standard fully polished 304 stainless steel material, it has all standard sanitary welded tri-clamp fittings and CIP arm.


Getting your tanks from the direct factory, our team is ready to provide 100% customized products to meet any of your special requirements.


Configuration
  • Effective=500L, with extra 25% head space

  • Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire

  • Inner layer=3mm, pickling and passivating treated

  • outer layer=2mm, Hairline polishing

  • Dimple glycol cooling jacket

  • PU Insulation layer=80mm on side and cone bottom

  • Design pressure 0.3MPa; Working pressure 0.15Mpa.

  • 60°Conical Cone bottom

  • Side manway, shadow-less

  • CIP arm with internal 360°spray ball

  • Lifting lugs

  • Pressure relief valve

  • Pressure Gauge

  • Temperature Gauge

  • Sample valve

  • Beer outlet on cone

  • Bottom drain port

  • PT-100 Temperature sensor

  • 4 x heavy duty legs with leveling foot pads

  • Complete fittings, valves


Options
  • Additional CO2 Blow off pipeline

  • Carbonation Port & fittings

  • Top mounted dry hops adding port

  • Glycol water pipelines to fit your brewery layout

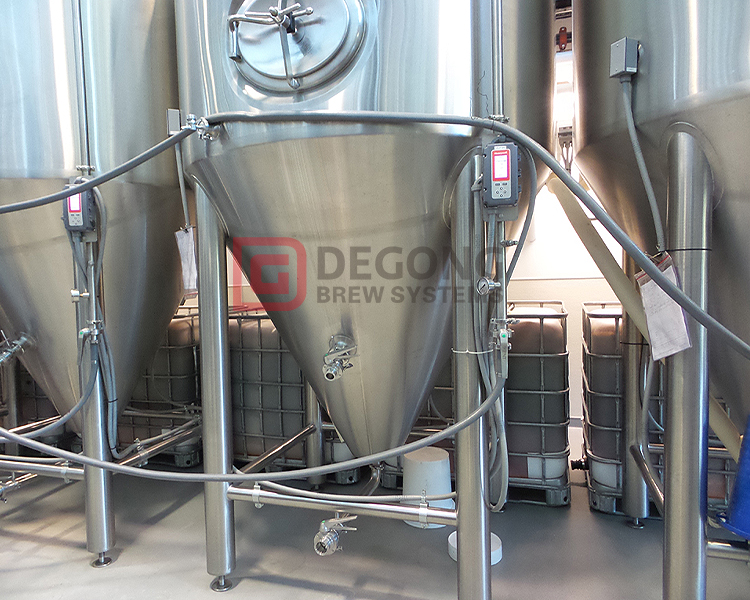

873872


Serial Number

Effective Volume

Dimension

DG-100 100L Φ640*1300mm
DG-200 200L Φ740*1750mm
DG-300 300L Φ840*1850mm
DG-500

500L

Φ1060*2100mm

DG-5BBL

5BBL

Φ1060*2300mm

DG-600

600L

Φ1060*2200mm

DG-7BBL

7BBL

Φ1060*2400mm

DG-800

800L

Φ1160*2450mm

DG-1000

1000L

Φ1260*2560mm

DG-10BBL

10BBL

Φ1260*2700mm

DG-1500

1500L

Φ1360*2890mm

DG-15BBL 15BBL Φ1500*3000mm

DG-2000

2000L

Φ1560*3100mm

DG-20BBL 20BBL Φ1600*3400mm
DG-3000 3000L Φ1700*3750mm
DG-4000 4000L Φ1800*3950mm
DG-5000 5000L Φ2000*4350mm

...

...

...

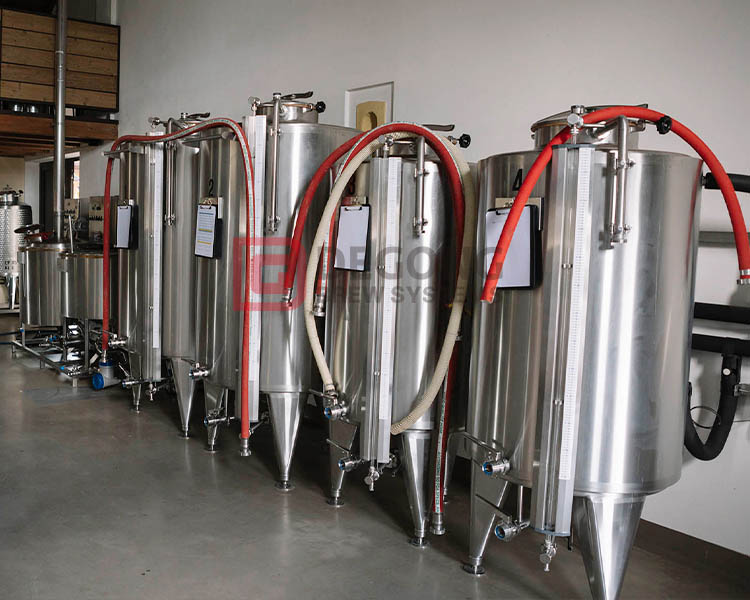

874875


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
